| OA92AP-11/22-1WB | ||
|---|---|---|
|
|
||
|
||

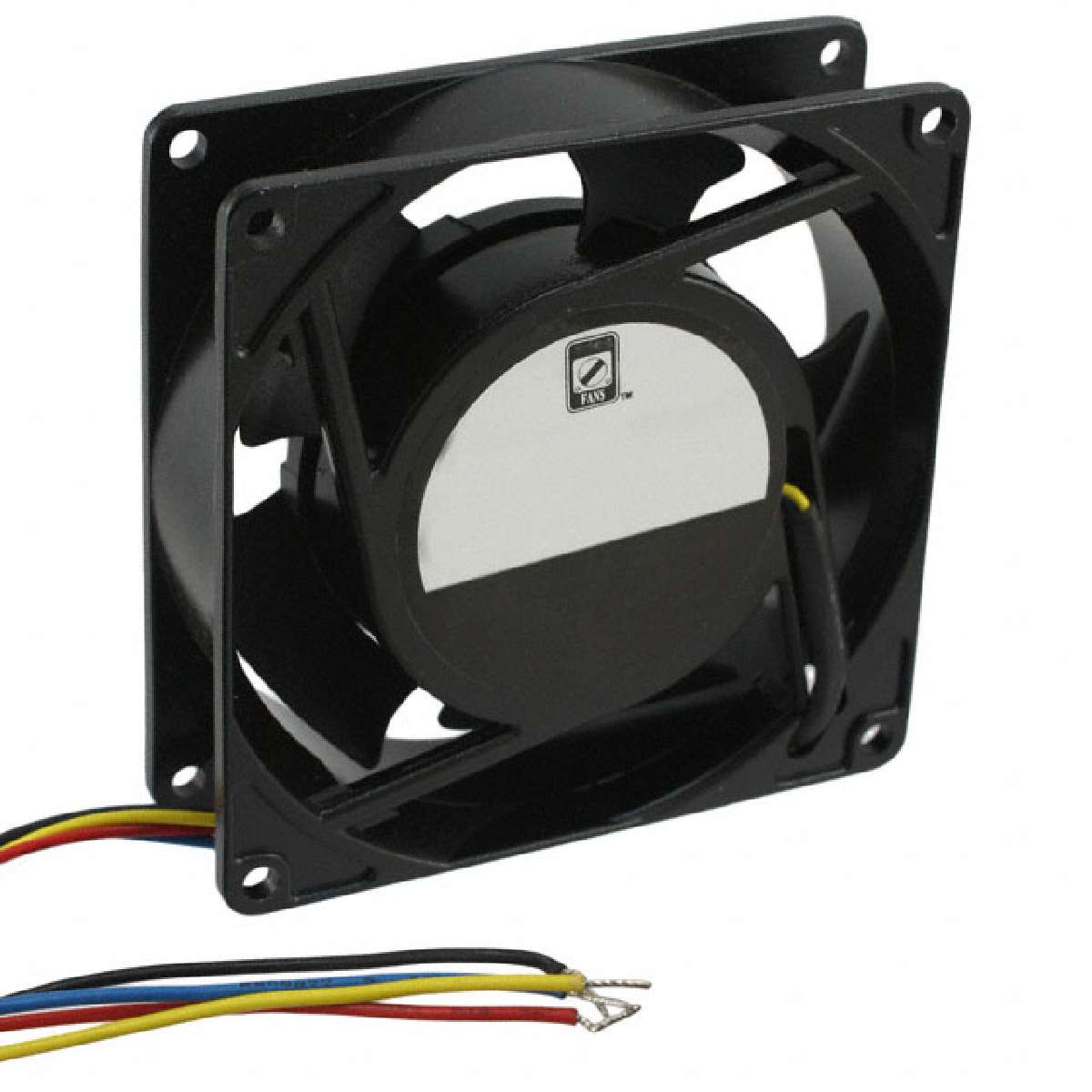

| Product description : FAN AXIAL 92X26MM 115/230VAC | ||
| SPQ：40 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Product Training Modules | AC Fans Specialty Fans |
|---|---|
| Other Related Documents | Selection Guide |
| Air Flow | 35.0 CFM (0.991m³/min) |
| Power (Watts) | 13.0W |
| Fan Type | Tubeaxial |
| Static Pressure | 0.200 in H2O (49.8 Pa) |
| Standard Package | 1 |
| Voltage Range | 80 ~ 260VAC |
| Noise | 30 dB |
| Family | AC Fans |
| Operating Temperature | -4 ~ 176°F (-20 ~ 80°C) |
| Size / Dimension | Square - 92mm L x 92mm H x 26mm W |
| Material - Frame | Aluminum |
| Life Expectancy | 60000 hrs @ 40°C |
| Bearing Type | Ball |
| Termination | 4 Wire Leads |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Features | Dual Voltage |
| Voltage - Rated | 115/230VAC |
| Series | OA92 |
| RPM | 3000 RPM |
