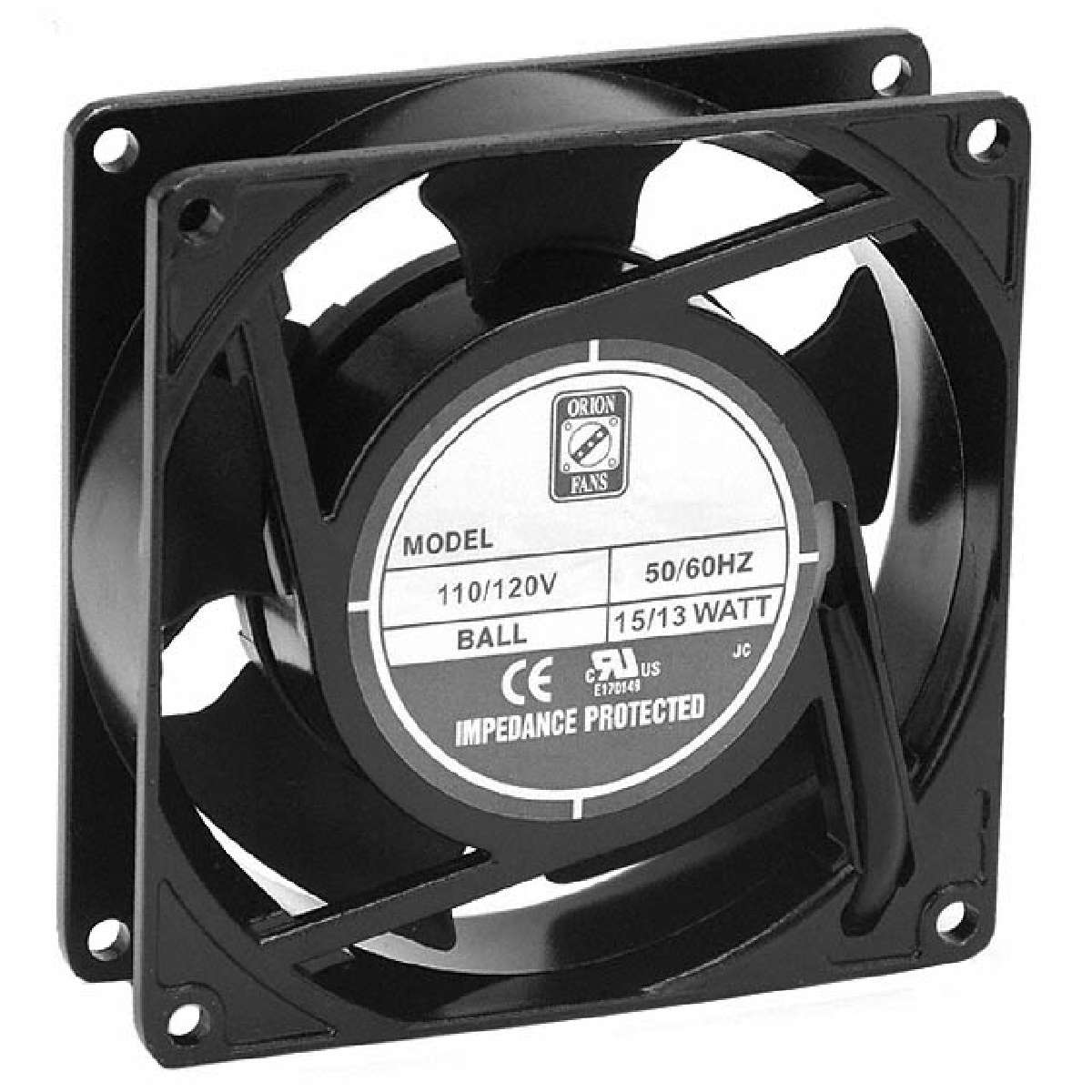

| OA92AP-11-2WB | ||
|---|---|---|
|
|
||
|
||
| Product description : FAN AXIAL 92X26MM 115VAC WIRE | ||
| SPQ：40 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Size / Dimension | Square - 92mm L x 92mm H x 26mm W |
|---|---|
| Material - Frame | Aluminum |
| Life Expectancy | 60000 hrs @ 40°C |
| Bearing Type | Ball |
| Static Pressure | 0.140 in H2O (34.9 Pa) |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Voltage Range | 80 ~ 130VAC |
| Noise | 22 dB |
| Family | AC Fans |
| Operating Temperature | -4 ~ 176°F (-20 ~ 80°C) |
| Other Related Documents | Standard Wire Colors For Fans |
| Air Flow | 27.0 CFM (0.765m³/min) |
| Power (Watts) | 10.0W |
| Fan Type | Tubeaxial |
| Termination | 2 Wire Leads |
| Standard Package | 40 |
| Voltage - Rated | 115VAC |
| Series | OA92 |
| RPM | 2300 RPM |
