| MSR516XR | ||
|---|---|---|
|
|
||
|
||

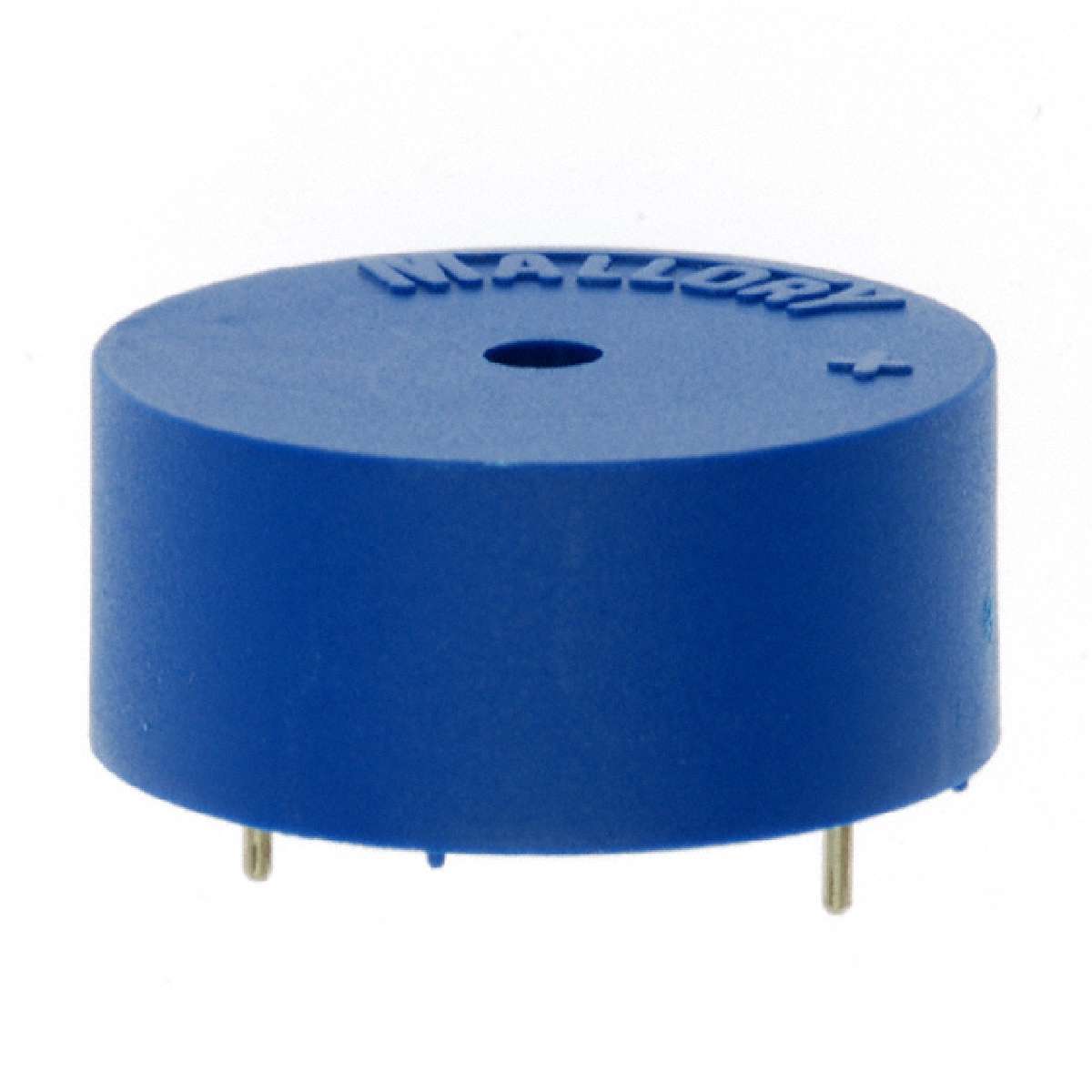

| Product description : Loud Sound Level Siren tone 5 to 16 V 3400 Hz Through hole Buzzer | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Termination | PC Pins |
|---|---|
| Voltage Range | 5 ~ 16V |
| Part Status | Obsolete |
| Manufacturer | Mallory Sonalert Products Inc. |
| Height - Seated (Max) | * |
| Family | Alarms, Buzzers, and Sirens |
| Mounting Type | Through Hole |
| Operating Temperature | -20°C ~ 65°C |
| Technology | Piezo |
| Driver Circuitry | Indicator, Internally Driven |
| ECCN | EAR99 |
| Sound Pressure Level | 82dB @ 5V, 30cm |
| Size / Dimension | 23.0mm Dia x 10.1mm H |
| Category | Audio Products |
| Port Location | Top |
| Series | MSR |
| Operating Mode | Siren |
| Frequency | 3.4kHz |
| Current - Supply | 3 ~ 12mA |
| Packaging | Bulk |
| Input Type | DC |
