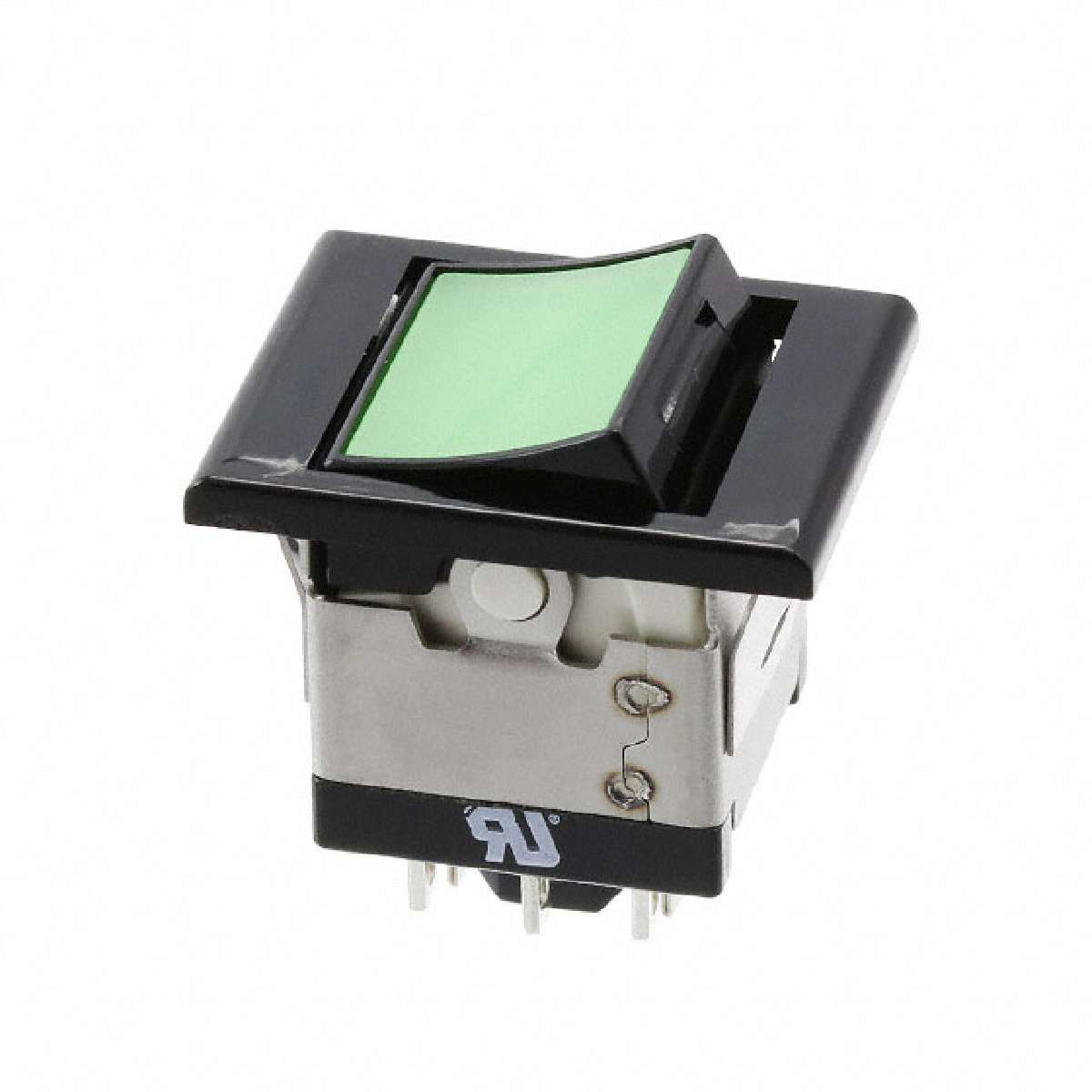

| MLW3022-F-LF-1A | ||
|---|---|---|
|
|
||
|
||
| Product description : MINIATURE ROCKER/ILLUMINATED/SNAP-IN | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Illumination Voltage (Nominal) | 2.1 VDC |
|---|---|
| Termination Style | Solder Lug |
| Illumination Type, Color | LED, Green |
| Mounting Type | Panel Mount, Snap-In |
| Actuator Type | Concave (Curved) - Illuminated |
| Standard Package | 1 |
| Features | Epoxy Sealed Terminals |
| Color - Actuator/Cap | Green |
| Mechanical Life | 30,000 Cycles |
| Family | Rocker Switches |
| RoHS Information | MLW Series, Cert of Compliance |
| Current Rating | 5A (AC), 3A (DC) |
| Switch Function | On-On |
| Voltage Rating - DC | 30V |
| Electrical Life | 10,000 Cycles |
| Circuit | DPDT |
| Actuator Marking | No Marking |
| Voltage Rating - AC | 125V |
| Packaging | Bulk |
| Online Catalog | MLW Series |
| Series | MLW |
| Panel Cutout Dimensions | Rectangular - 18.70mm x 16.70mm |
| Operating Temperature | -10掳C ~ 50掳C |
| ECCN | EAR99 |
