MAS806SQ specifications -Ameya360 electronic components purchase network

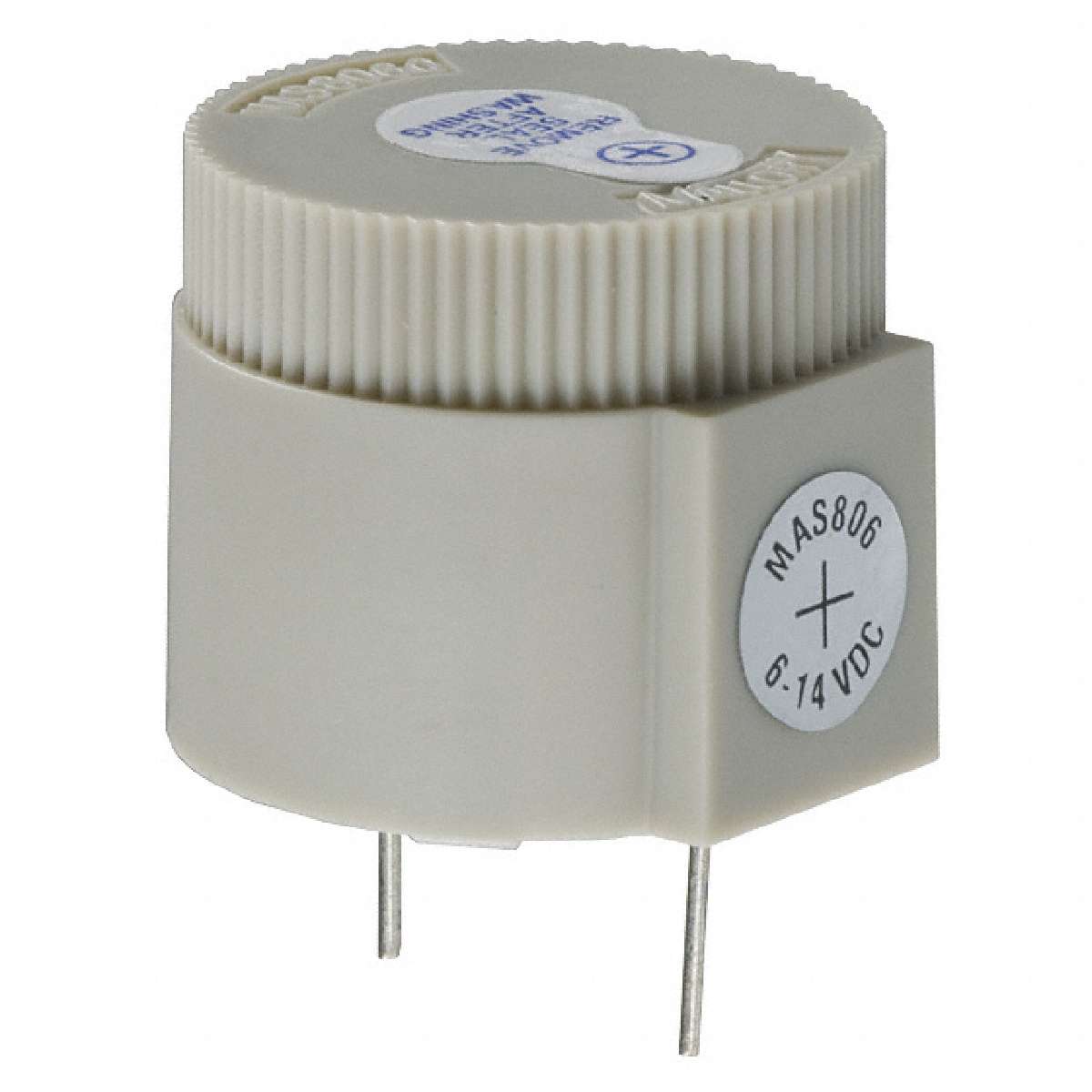

MAS806SQ

ACTIVE EAR99
Product description : MA Series 100 dB 14 V 2800 Hz PC Pins Buzzer
SPQ：1
Datasheet : MAS806SQ.pdf

Size / Dimension	Circular - 26.30mm Dia x 21.90mm H
Operating Mode	Continuous
Frequency	2.8kHz
Input Type	DC
Termination	PC Pins
Catalog Drawings	MAS(800,806)SQ Top MAS(800,806)SQ Side
Packaging	Bulk
Voltage Range	6 ~ 14V
Series	MAS
Operating Temperature	-20°C ~ 90°C
ECCN	EAR99
Washable	Yes
Mounting Type	Through Hole
Current - Supply	50mA
Driver Circuitry	Indicator, Internally Driven
Sound Pressure Level	103dB @ 12V, 10cm
Standard Package	1
Sound File	2800 Hz Continuous
Voltage - Rated	12VDC
Family	Buzzers
Technology	Piezo

Datasheet： MAS806SQ.pdf

You can comment after logging in.

Out of stock, Please InquiryRFQ

Please inform us of the error for improving our site and products.

Stock code :	2964340
Mfg name :	Mallory Sonalert Products
MPN :	MAS806SQ
Product description :	MA Series 100 dB 14 V 2800 Hz PC Pins Buzzer
