| 4SXB150M | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

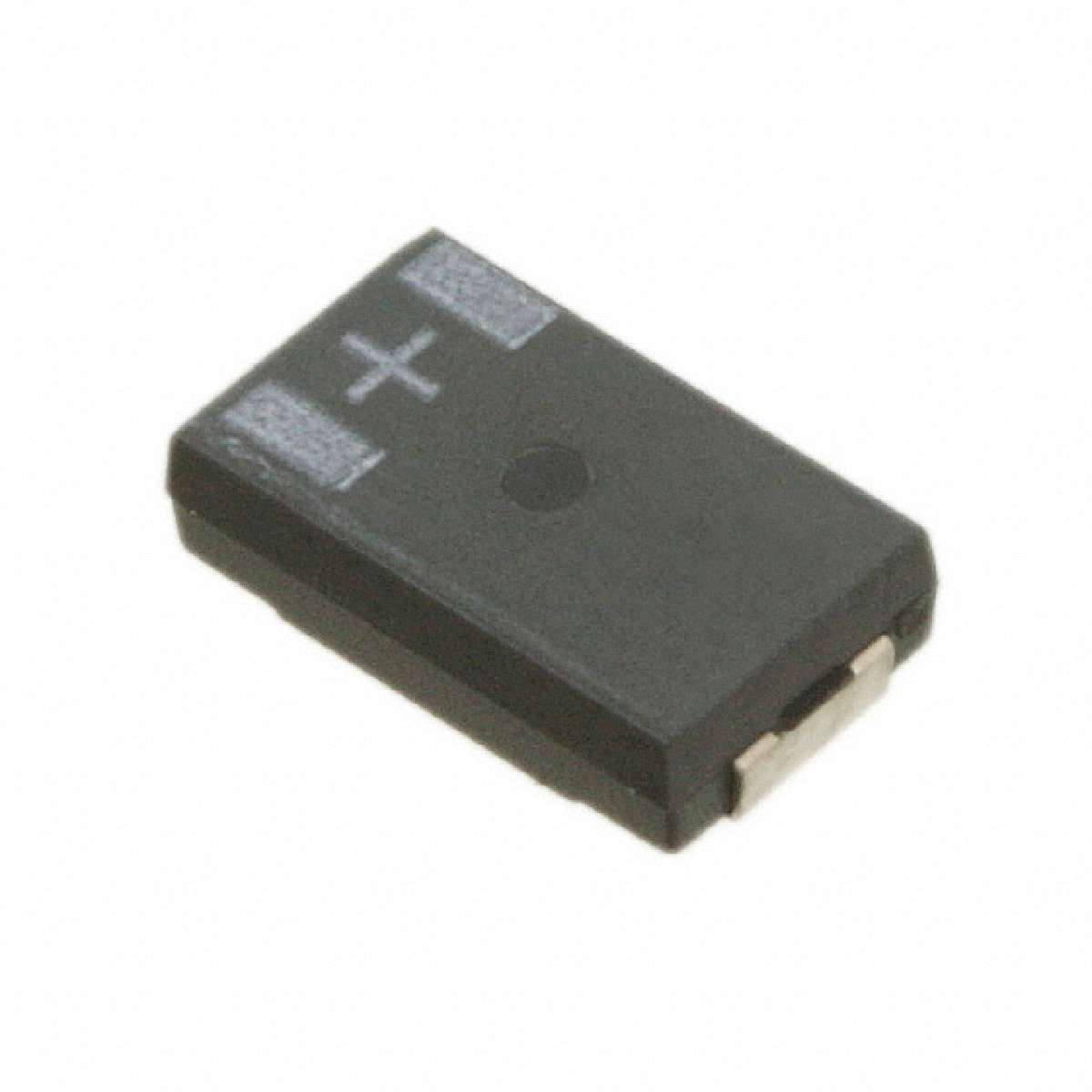

CAP ALUM POLY 150UF 20% 4V SMD
|
||
| 标准包装：3500 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Tolerance | ±20% |
|---|---|
| Package / Case | 2917 (7343 Metric) |
| Capacitance | 150µF |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Ripple Current | 3A |
| Manufacturer | Rubycon |
| Surface Mount Land Size | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Family | Aluminum - Polymer Capacitors |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Packaging | Digi-Reel® |
| Categories | Capacitors ->Aluminum - Polymer Capacitors |
| Voltage Rating | 4V |
| Type | Polymer |
| ESR (Equivalent Series Resistance) | 13 mOhm |
| Part Status | Active |
| Category | Capacitors |
| Height - Seated (Max) | 0.075" (1.90mm) |
| Series | PC-CON, SXB |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 105°C |
| Categories | Capacitors ->Aluminum - Polymer Capacitors |
