| LTW-5630AZL50 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

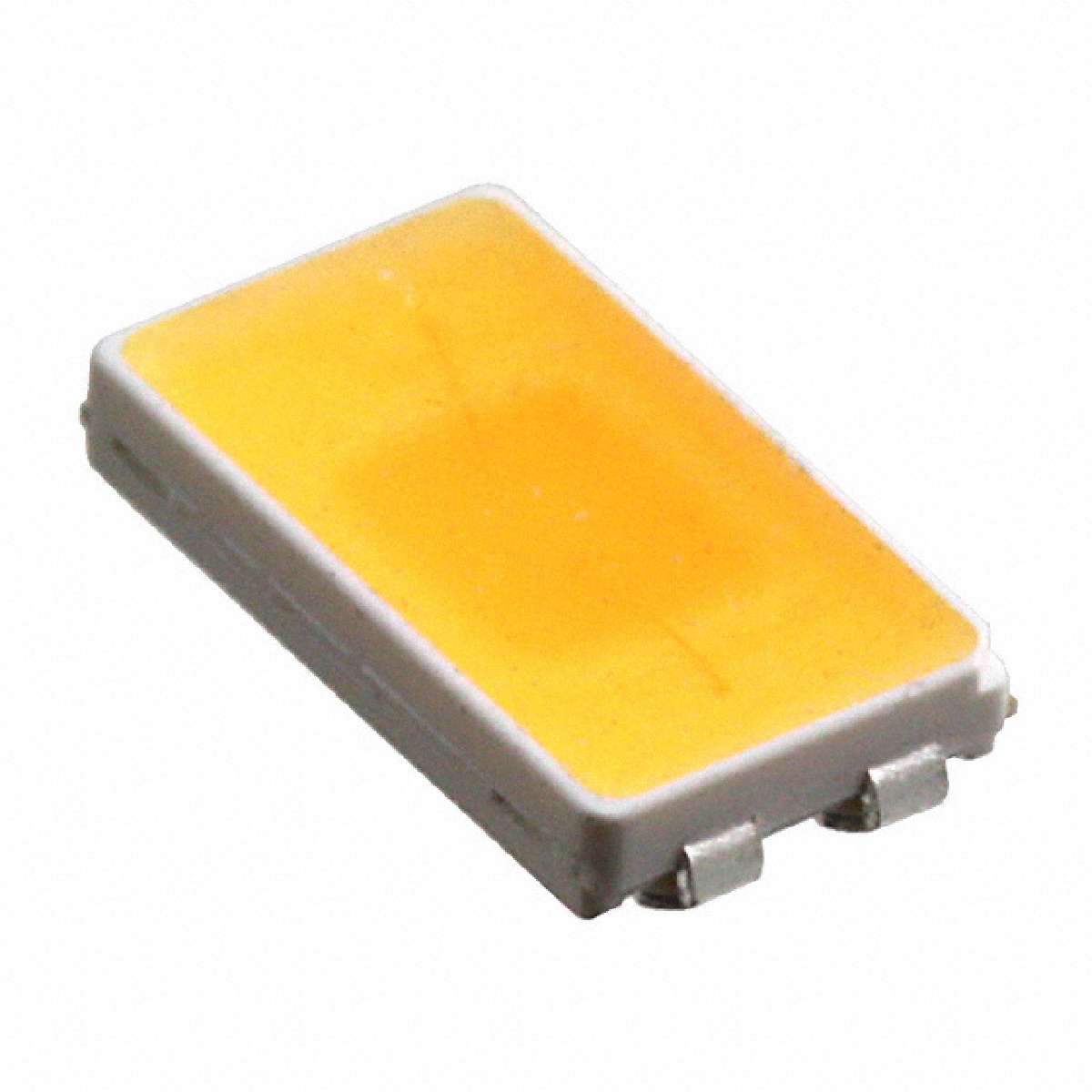

LED WHITE 5000K CCT PLCC
|
||
| 标准包装：1000 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| CRI (Color Rendering Index) | 80 |
|---|---|
| Flux @ 25°C, Current - Test | 55 lm (46 lm ~ 64 lm) |
| Thermal Resistance of Package | 15°C/W |
| Online Catalog | AZLxx Series |
| Voltage - Forward (Vf) (Typ) | 3.13V |
| Series | AZLxx |
| Mounting Type | Surface Mount |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Flat Lead Exposed Pad |
| Viewing Angle | 120° |
| CCT (K) | 5000K |
| Current - Test | 120mA |
| Current - Max | 200mA |
| Family | LED Lighting - White |
| Lumens/Watt @ Current - Test | 146 lm/W |
| RoHS | Lead free / RoHS Compliant |
