| 6.3ZLH4700MEFC12.5X25 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

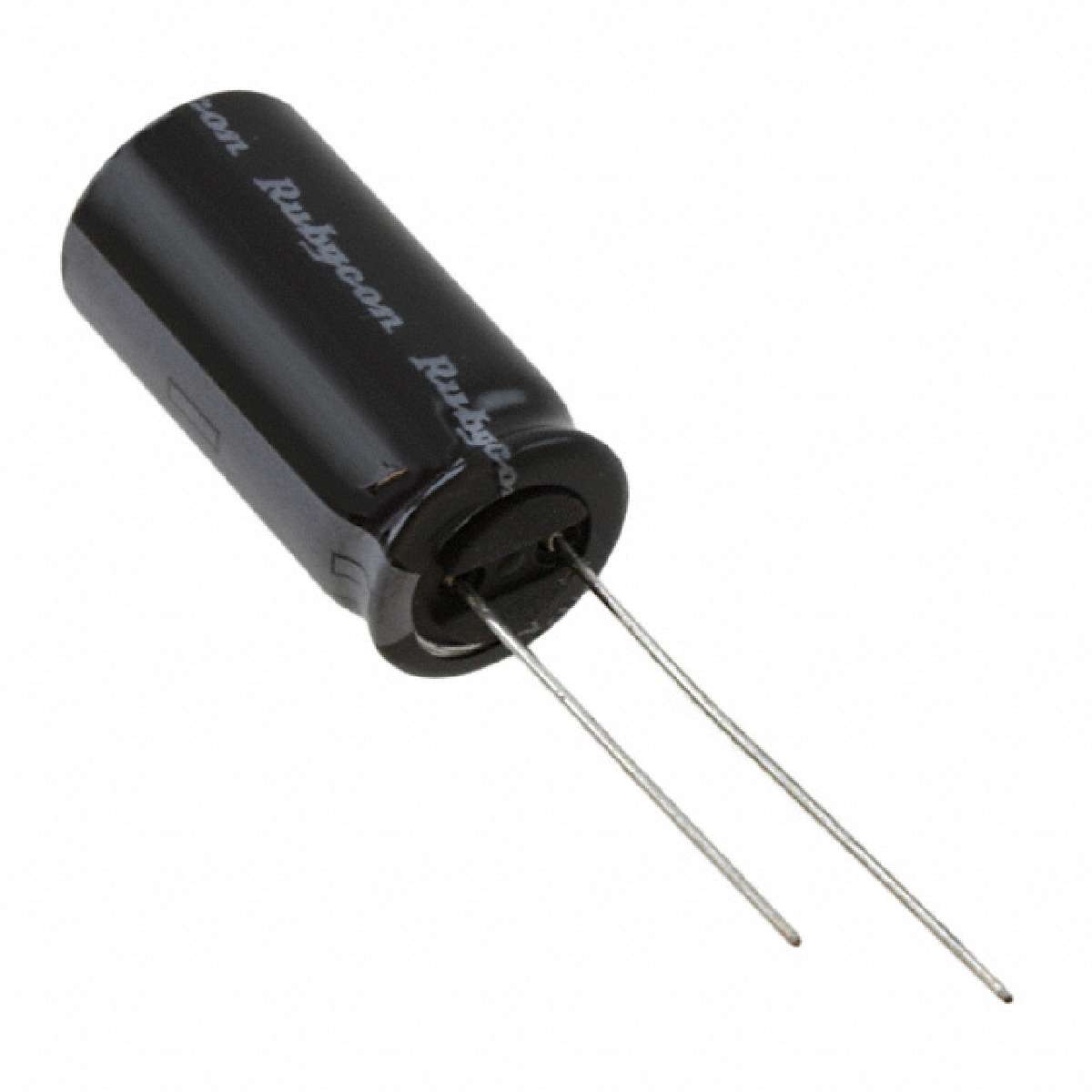

Elco Rad 4700uF 6,3V 12.5X25mm 105C 10000h
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage Rating | 6.3V |
|---|---|
| Impedance | 15 mOhm |
| Lead Spacing | 0.197" (5.00mm) |
| Polarization | Polar |
| Part Status | Active |
| Category | Capacitors |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 105°C |
| Categories | Capacitors ->Aluminum Electrolytic Capacitors |
| Voltage - Rated | 6.3V |
| Tolerance | ±20% |
| Package / Case | Radial, Can |
| Capacitance | 4700µF |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Ripple Current | 2.03A |
| Manufacturer | Rubycon |
| Series | ZLH |
| Applications | General Purpose |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Packaging | Bulk |
| Categories | Capacitors ->Aluminum Electrolytic Capacitors |
| Voltage - Rated | 6.3V |
