| IDC5Q | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

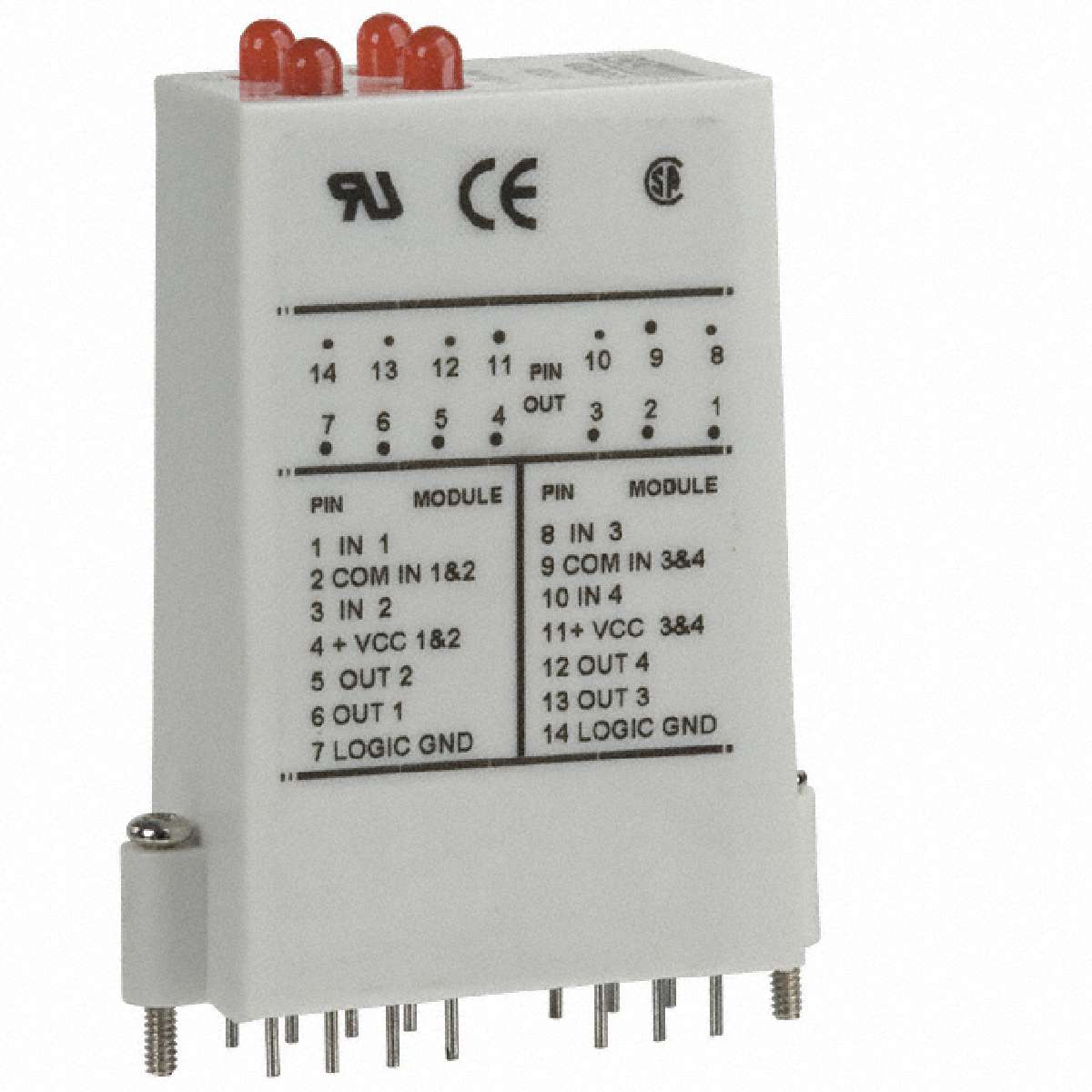

IDC5Q Series 32 V 29 mA Quad Channel AC Input I/O Module
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage - Input | 12 ~ 60VDC |
|---|---|
| Style | Quad |
| Logic Supply Voltage (Output) | 5VDC (3 ~ 6VDC) |
| Color | White |
| Other Related Documents | Declaration of Conformity |
| Online Catalog | Quad Series |
| Current - Input | 34mA |
| 3D Model | Quad Series Input Modules.sat Quad Series Input Modules.dwg Quad Series Input Modules.stp |
| ECCN | EAR99 |
| Type | DC |
| Standard Package | 10 |
| Turn On Time | 1ms |
| Features | Hold Down Screw, Status LED(s) |
| Logic Supply Current (Output) | 16mA |
| Series | QUAD |
| Family | I/O Relay Modules - Input |
| Turn Off Time | 1ms |
| 数据手册： |
|---|
