ELF-24V070A specifications -Ameya360 electronic components purchase network

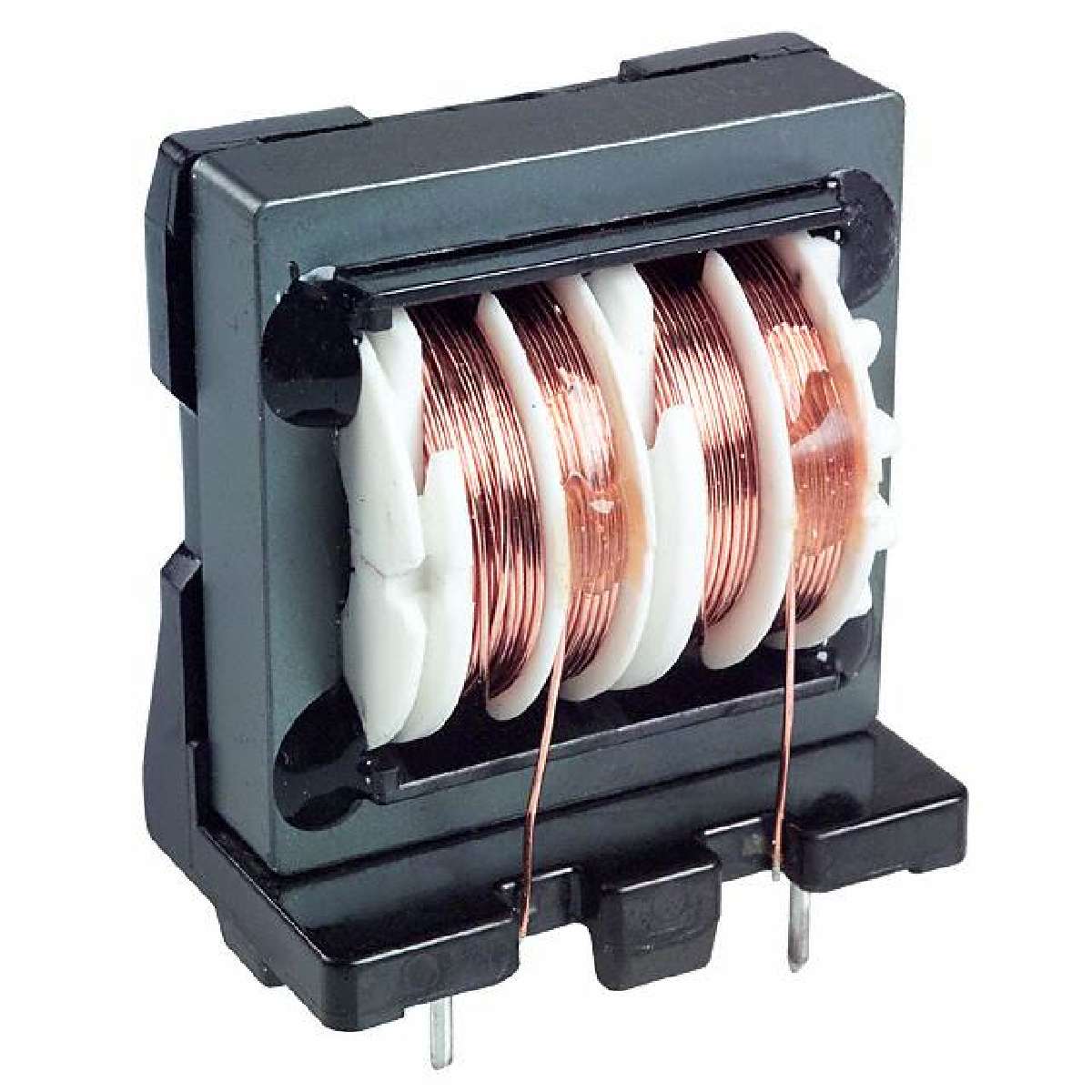

ELF-24V070A

ACTIVE Vertical, 4 PC Pin
Product description : COMMON MODE CHOKE 7A 2LN TH
SPQ：200
Datasheet : ELF-24V070A.pdf

Inductance	800µH
PCN Obsolescence/ EOL	ELF-AC Series 14/Dec/2011
Catalog Drawings	Circuit Example Standard Circuit Diagram V Series 24V Type Footprint V Series 24V Type Front V Series 24V Type Side
Size / Dimension	1.457" L x 0.945" W (37.00mm x 24.00mm)
Series	V
Height (Max)	1.673" (42.50mm)
Filter Type	Power Line
DC Resistance (DCR)	16 mOhm
Package / Case	Vertical, 4 PC Pin
Number of Lines	2
Standard Package	200
Packaging	Bulk
Family	Common Mode Chokes
Mounting Type	Through Hole
Operating Temperature	-20°C ~ 105°C
Current	7A

Datasheet： ELF-24V070A.pdf
