ELF-11M030E specifications -Ameya360 electronic components purchase network

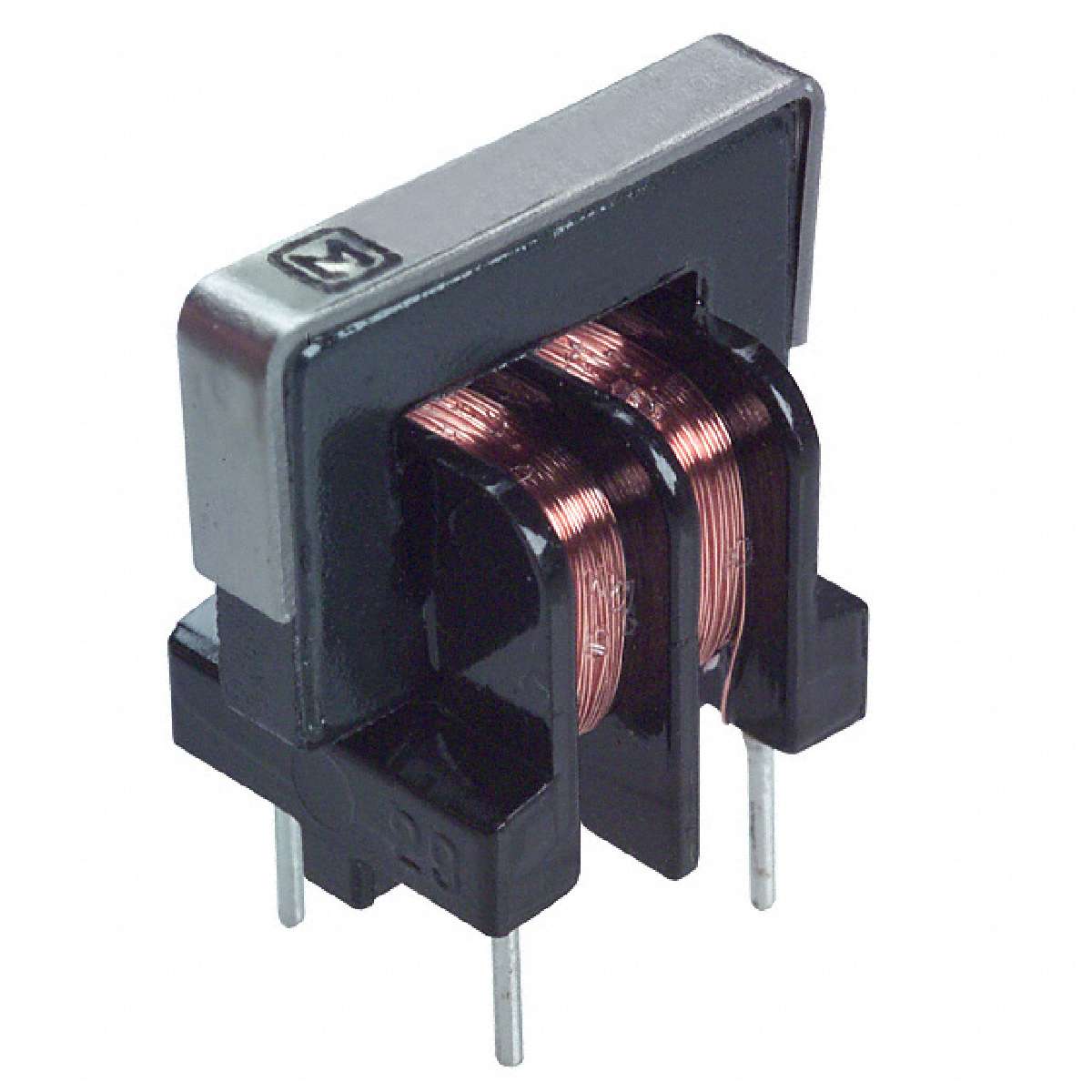

ELF-11M030E

ACTIVE Vertical, 4 PC Pin
Product description : COMMON MODE CHOKE 300MA 2LN TH
SPQ：200
Datasheet : --

Inductance	6mH
PCN Obsolescence/ EOL	ELF-AC Series 14/Dec/2011
Catalog Drawings	Circuit Example Standard Circuit Diagram M Series 11M Type Footprint M Series 11M Type Front M Series 11M Type Side
Size / Dimension	0.630" L x 0.413" W (16.00mm x 10.50mm)
Series	M
Height (Max)	0.669" (17.00mm)
Filter Type	Power Line
DC Resistance (DCR)	2.3 Ohm Max
Package / Case	Vertical, 4 PC Pin
Number of Lines	2
Standard Package	200
Packaging	Bulk
Family	Common Mode Chokes
Mounting Type	Through Hole
Operating Temperature	-20掳C ~ 115掳C
Current	300mA
