| DPM40 | ||
|---|---|---|
|
|
||
|
||

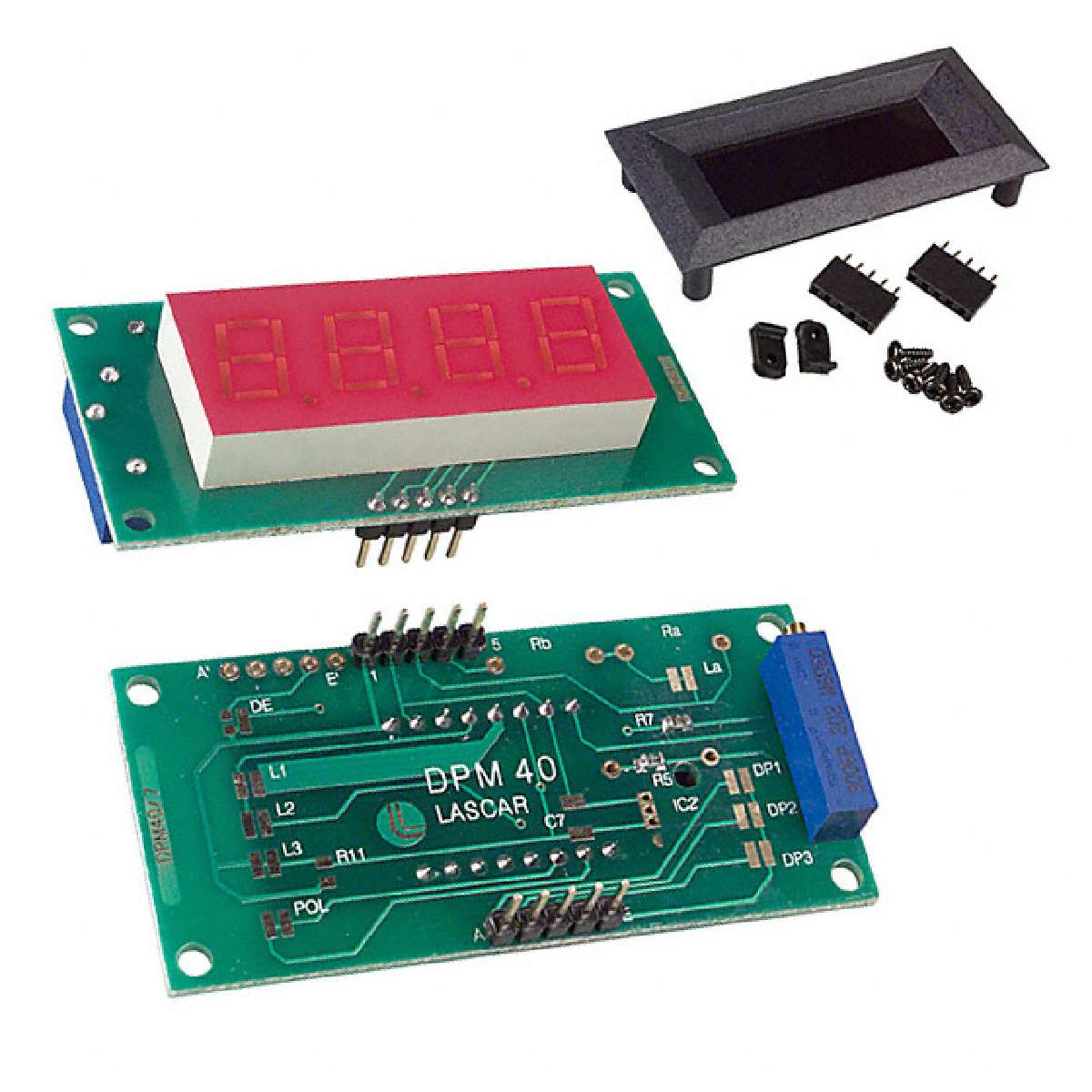

| Product description : VOLTMETER 0-200MVDC LED PANEL MT | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Voltage - Supply | 5VDC |
|---|---|
| Measuring Range | 0 ~ 200mVDC |
| Number Of Characters Per Row | 3.5 |
| Standard Package | 1 |
| Display Type | LED - Red Characters |
| Family | Panel Meters |
| Mounting Type | Panel Mount |
| Display Characters - Height | 0.433" (11.00mm) |
| Type | Voltage (Voltmeter) |
| Other Drawings | DPM40 |
| Termination Style | PC Pin |
| Series | 40 |
| Panel Cutout Dimensions | Rectangular - 68.00mm x 33.00mm |
| Operating Temperature | 0°C ~ 50°C |
