| BXRA-56C0700-A-04 | ||
|---|---|---|
|
|
||
|
||

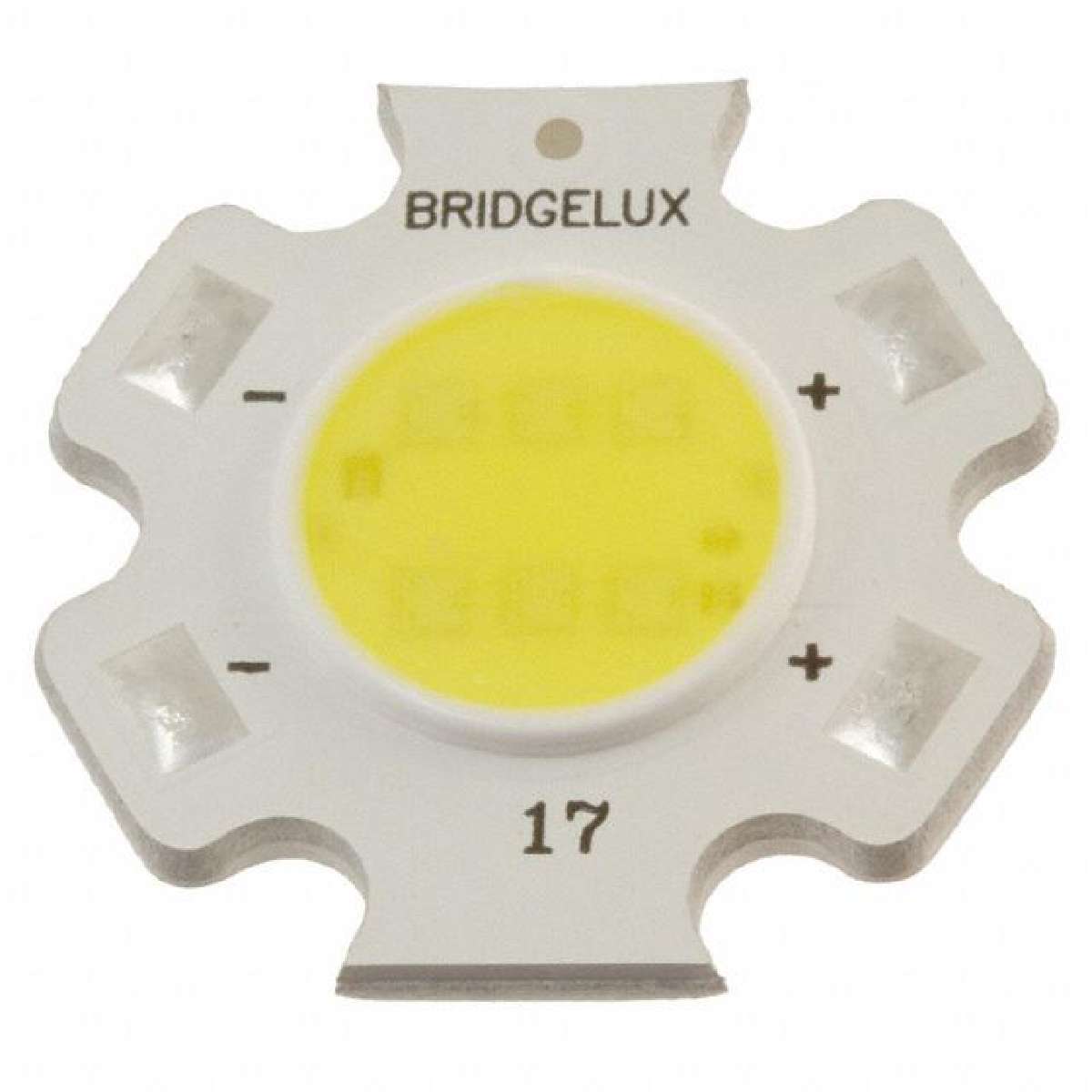

| Product description : LED ARRAY ES STAR 700LM WHITE | ||
| SPQ：250 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| CRI (Color Rendering Index) | 70 |
|---|---|
| Viewing Angle | 120° |
| Height | 3.00mm |
| CCT (K) | 5600K 4-Step MacAdam Ellipse |
| Size / Dimension | 19.90mm L x 19.90mm W |
| Temperature - Test | 25°C |
| Category | Optoelectronics |
| Current - Test | 350mA |
| Current - Max | 500mA |
| Flux @ Current/Temperature - Test | 780 lm (Typ) |
| Lens Type | Domed |
| Type | Chip On Board (COB) |
| Configuration | Starboard |
| Color | White, Cool |
| Part Status | Obsolete |
| Manufacturer | Bridgelux |
| Voltage - Forward (Vf) (Typ) | 18.8V |
| Series | ES STAR |
| Family | LED Lighting - COBs, Engines, Modules |
| Lumens/Watt @ Current - Test | 118 lm/W |
