| APT25GR120SD15 | ||
|---|---|---|
|
|
||
|
||

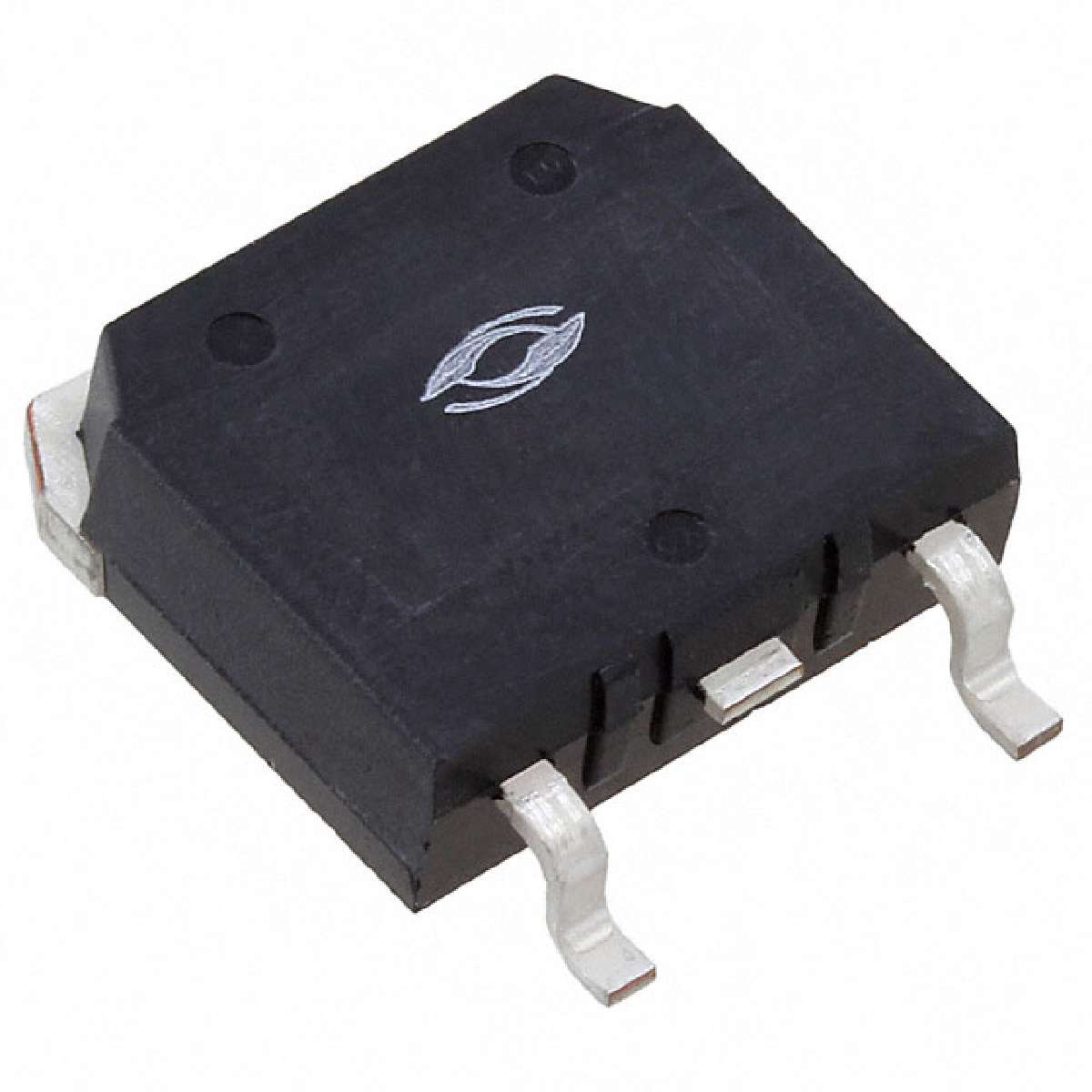

| Product description : APT25GR120Sx Series 1200 V 75 A Surface Mount Ultra Fast NPT IGBT® - D3PAK | ||
| SPQ：1000 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Current - Collector Pulsed (Icm) | 100A |
|---|---|
| Power - Max | 521W |
| IGBT Type | NPT |
| Td (on/off) @ 25°C | 16ns/122ns |
| Part Status | Active |
| Manufacturer | Microsemi Corporation |
| Voltage - Collector Emitter Breakdown (Max) | 1200V |
| Mounting Type | Surface Mount |
| Switching Energy | 742µJ (on), 427µJ (off) |
| Packaging | Tube |
| Package / Case | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA |
| Test Condition | 600V, 25A, 4.3 Ohm, 15V |
| Supplier Device Package | D3Pak |
| Current - Collector (Ic) (Max) | 75A |
| Category | Discrete Semiconductor Products |
| Gate Charge | 203nC |
| Family | Transistors - IGBTs - Single |
| Vce(on) (Max) @ Vge, Ic | 3.2V @ 15V, 25A |
| Input Type | Standard |
| ECCN | EAR99 |
