| 98311-57 | ||
|---|---|---|
|
|
||
|
||

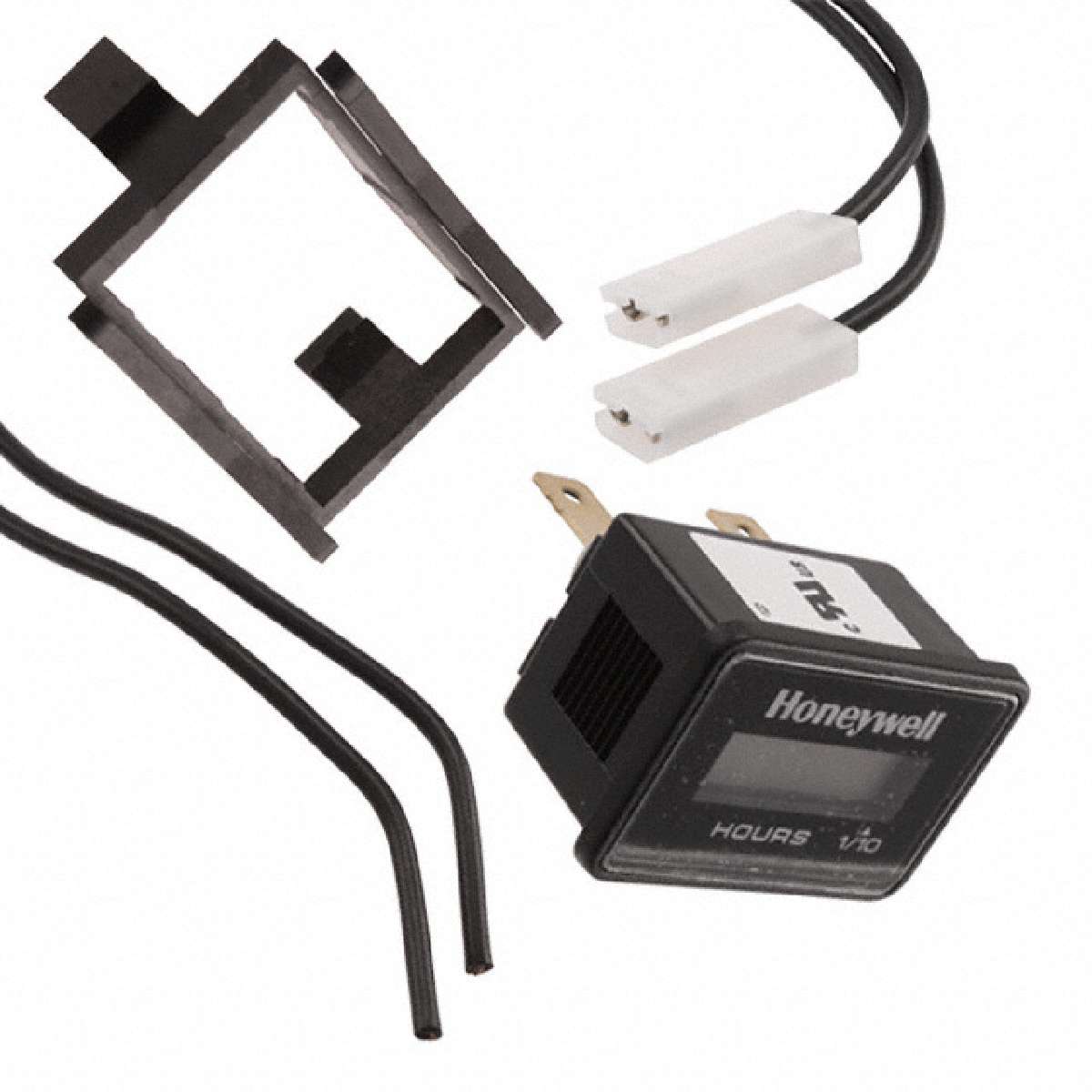

| Product description : COUNTER LCD 6 CHAR 9-64V PNL MT | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Display Characters - Height | 0.240" (6.00mm) |
|---|---|
| Type | Time Counter (Hour Meter) |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Mounting Type | Panel Mount |
| Time Format | 99999.9hrs |
| Catalog Drawings | 0983x1xx Top |
| Display Type | LCD - Black Characters |
| Family | Panel Meters - Counters, Hour Meters |
| Operating Temperature | -40掳C ~ 85掳C |
| Voltage - Supply | 9 ~ 64VDC |
| Ingress Protection | IP67 |
| Operating Mode | Up |
| Input Type | Voltage |
| Number Of Characters Per Row | 6 |
| Standard Package | 1 |
| Series | 98000 |
| Panel Cutout Dimensions | Rectangular - 36.83mm x 24.13mm |
| Reset | Non-Resettable |
