| 657-20ABPE | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

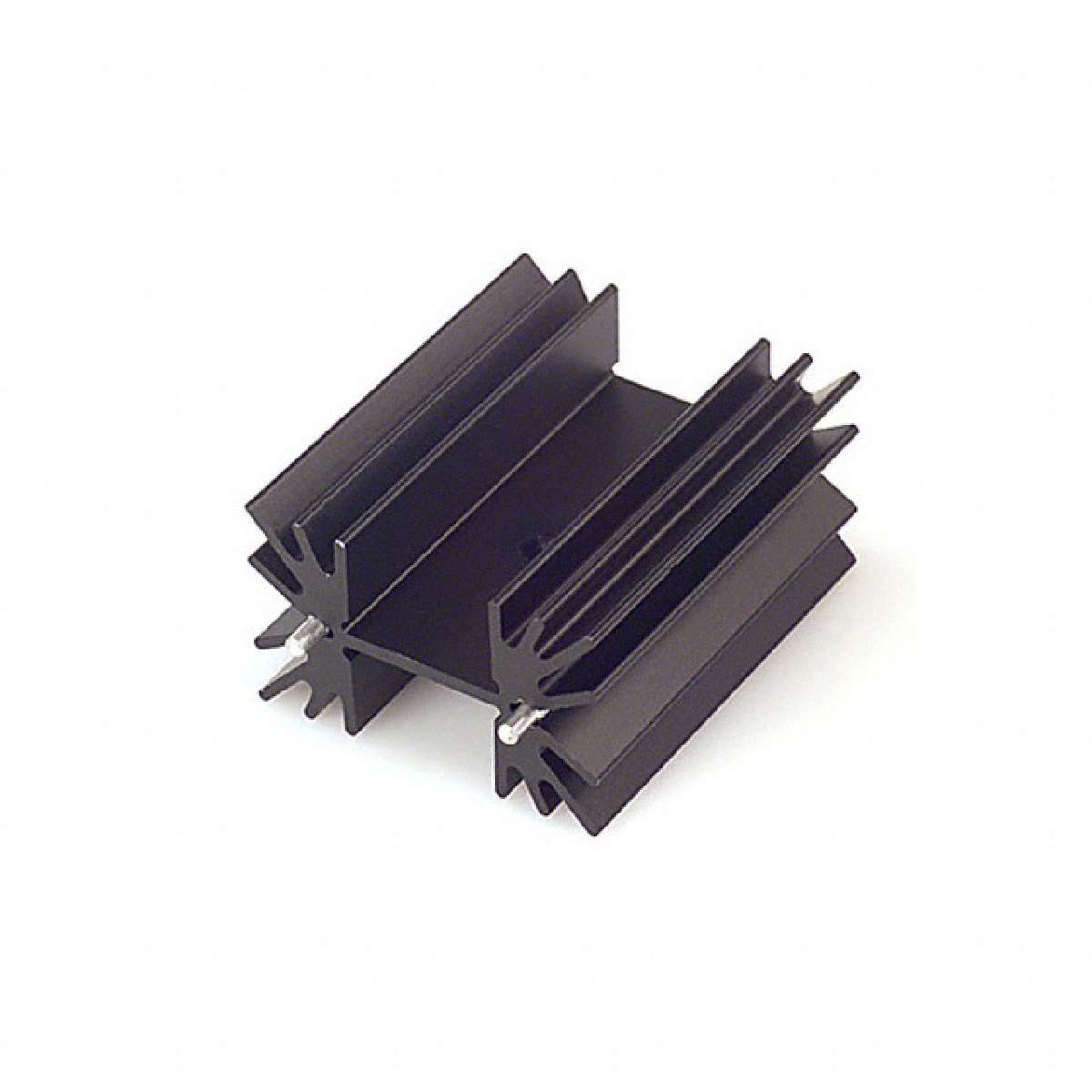

Heatsink: extruded; TO220; black; L: 25.4mm; W: 25.4mm; H: 50.8mm
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package Cooled | TO-218, TO-220, TO-247 |
|---|---|
| Type | Board Level, Vertical |
| Standard Package | 150 |
| Power Dissipation @ Temperature Rise | 6W @ 32°C |
| Length | 2.000" (50.80mm) |
| Thermal Resistance @ Forced Air Flow | 2.9°C/W @ 200 LFM |
| Height Off Base (Height of Fin) | 1.000" (25.40mm) |
| Thermal Resistance @ Natural | 5.3°C/W |
| Attachment Method | Bolt On and PC Pin |
| Material | Aluminum |
| Shape | Rectangular, Fins |
| Material Finish | Black Anodized |
| Series | 657 |
| Family | Thermal - Heat Sinks |
| Width | 1.650" (41.91mm) |
| ECCN | EAR99 |
