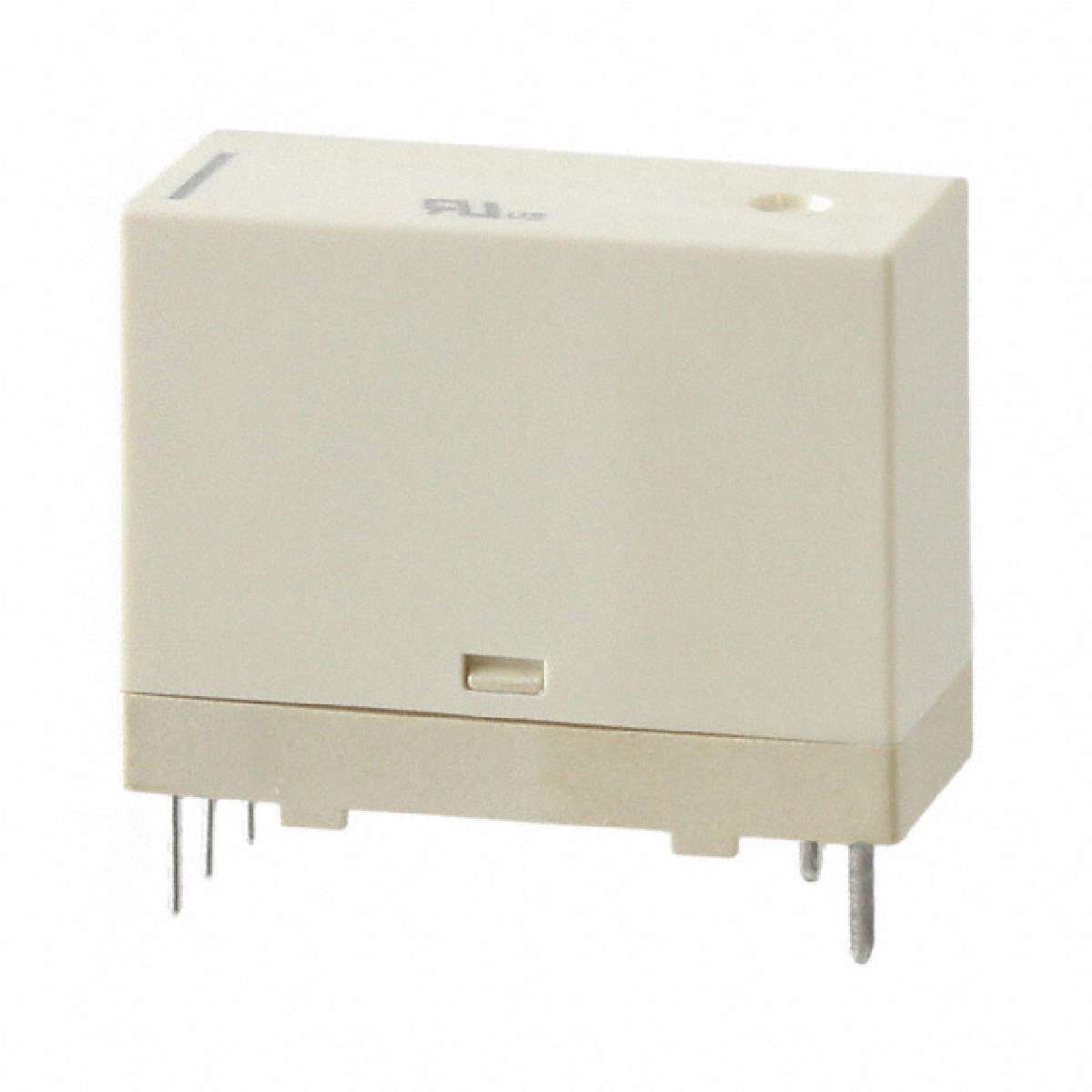

| ADW1203TW | ||
|---|---|---|
|
|
||
|
||
| Product description : DW Series SPST 8 A 3 V Dual Coil Latching PC Pin Through Hole Power Relay | ||
| SPQ：100 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Contact Form | SPST-NO (1 Form A) |
|---|---|
| Termination Style | PC Pin |
| Turn On Voltage (Max) | 2.4 VDC |
| Part Status | Active |
| Coil Current | 133.3mA |
| Release Time | 15ms |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Series | DW-H |
| Coil Voltage | 3VDC |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| ECCN | EAR99 |
| Coil Power | 400 mW |
| Operate Time | 15ms |
| Coil Type | Latching, Dual Coil |
| Category | Relays |
| Manufacturer | Panasonic Electric Works |
| Switching Voltage | 250VAC - Max |
| Relay Type | General Purpose |
| Coil Resistance | 22.5 Ohms |
| Family | Power Relays, Over 2 Amps |
| Contact Rating (Current) | 8A |
| Packaging | Tray |
