| 172-015-181-001 | ||
|---|---|---|
|
|
||
|
||
| Product description : D-Sub Connector Plug, Male Pins 15 Position Through Hole Solder | ||
| SPQ：50 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Connector Style | D-Sub |
|---|---|
| Shell Material, Finish | Steel, Yellow Chromate Plated |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Contact Finish Thickness | Flash |
| Contact Type | Signal |
| Standard Package | 50 |
| Flange Feature | Housing/Shell (Unthreaded) |
| Series | 172 |
| Operating Temperature | -50°C ~ 100°C |
| Current Rating | 5A |
| Contact Finish | Gold |
| Shell Size, Connector Layout | 2 (DA, A) |
| Mounting Type | Through Hole |
| Termination | Solder |

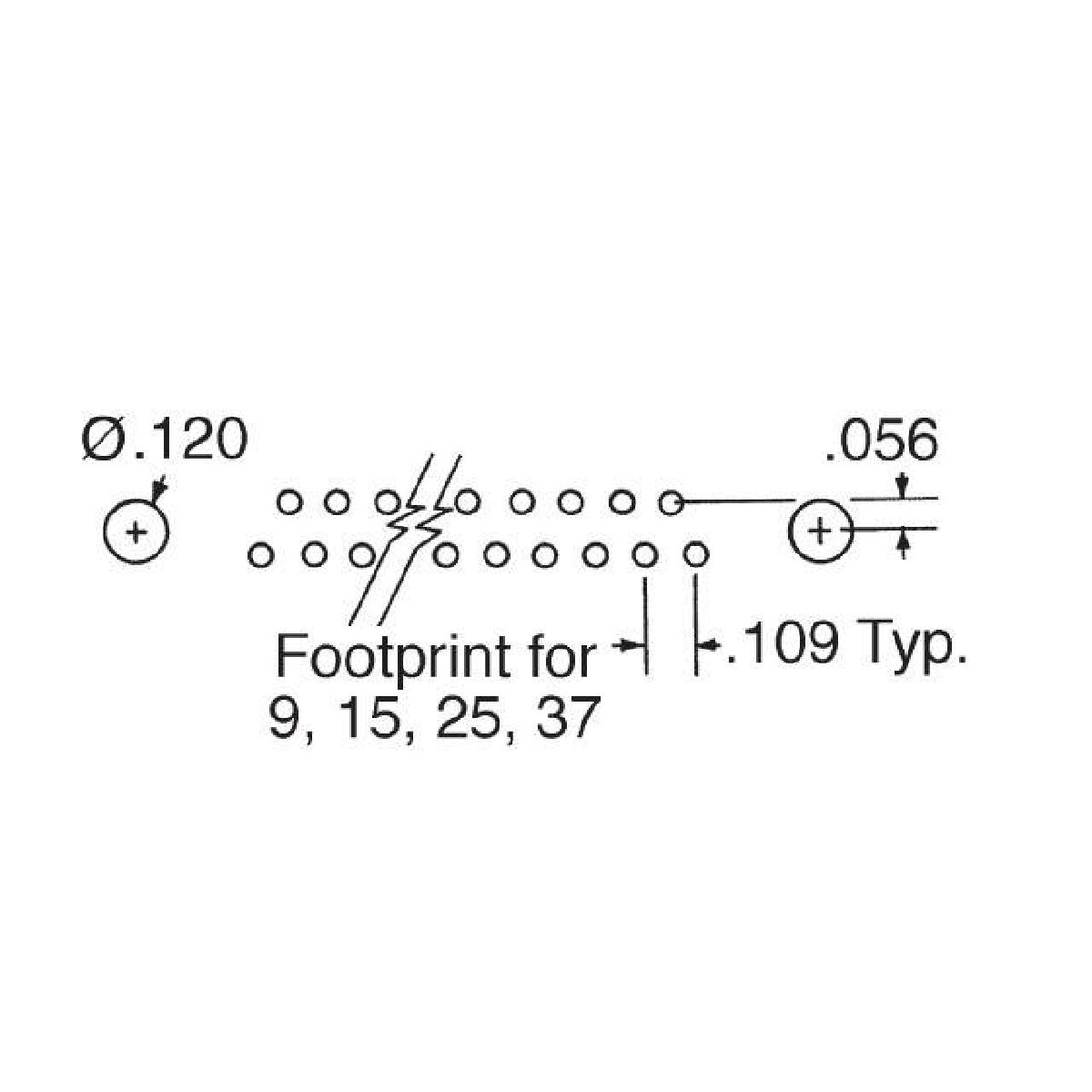

| Catalog Drawings | 170 Series Front Footprint 9,15,25-,37 Position 172 Series High Profile |
| Color | Black |
| Number of Positions | 15 |
| Family | D-Sub Connectors |
| Connector Type | Plug, Male Pins |
| Number of Rows | 2 |
