152895
152895
  • ACTIVE

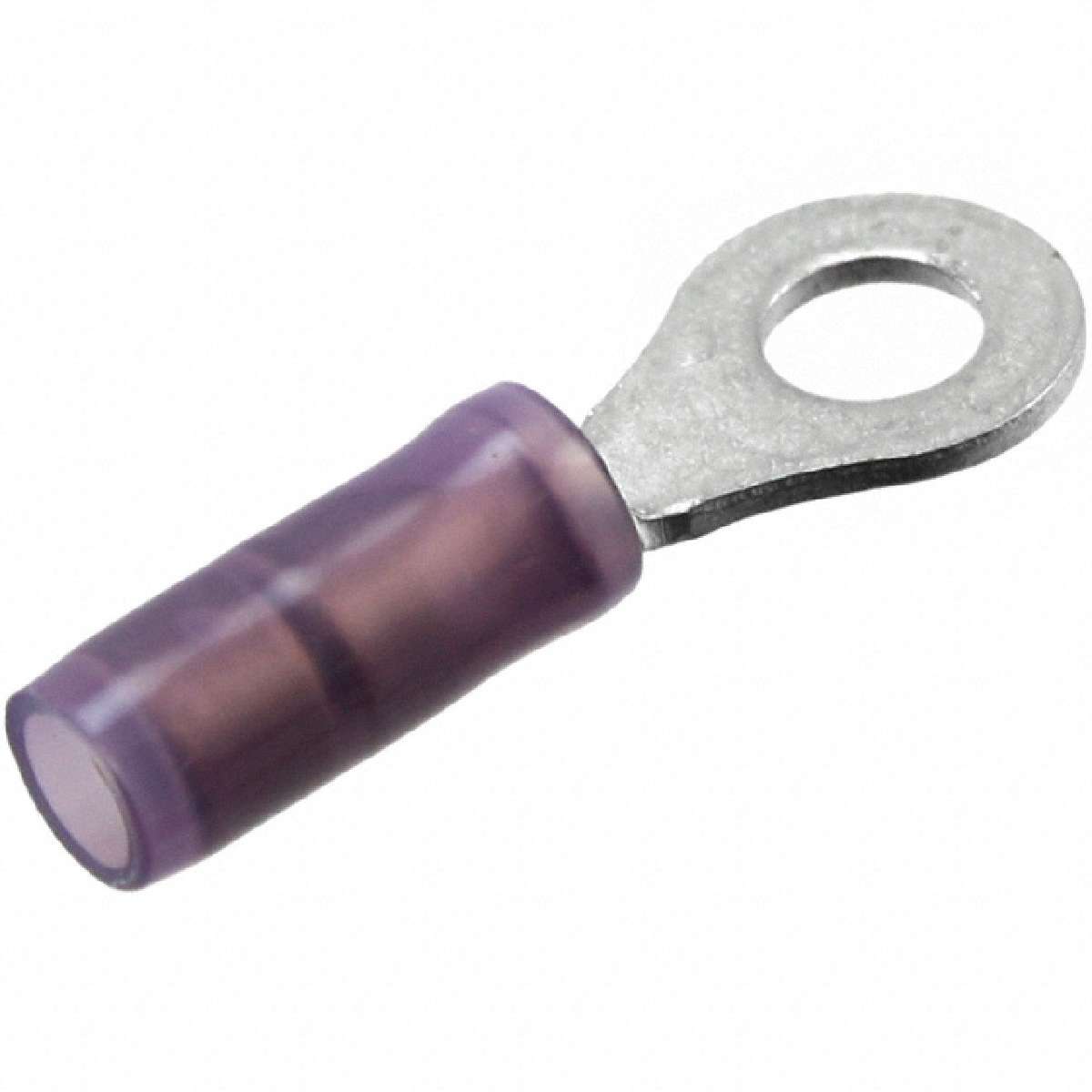

Product description : TE Connectivity PIDG 系列 绝缘镀锡触点 环形压接端子, M3.5 螺栓, 20 AWG, 紫色,红色
SPQ:1
Datasheet : --
  • Specifications
  • Product Attributes
  • Documents
  • Product reviews
Material - Insulation Polyamide (PA), Nylon
Thickness 0.031" (0.79mm)
Mounting Type Free Hanging (In-Line)
Tooling 1-576779-0-ND - TOOL HEAD CRIMP 20AWG STRATO 576720-ND - MATRICE DIE ASSY 20AWG
Terminal Type Circular
Features Serrated Termination
Packaging   Bulk
Contact Material Copper
Insulation Insulated
Series PIDG, Strato-Therm
RoHS Information 152895 Statement of Compliance RoHS 2 Statement
Contact Finish Tin
Wire Gauge 20 AWG
Termination Crimp
Standard Package   1,000
Stud/Tab Size 6 Stud
Color Purple
Insulation Diameter 0.045" ~ 0.080" (1.14mm ~ 2.03mm)
Length - Overall 0.787" (20.00mm)
Online Catalog PIDG, Strato-Therm Series
Family Terminals - Ring Connectors
Width - Outer Edges 0.281" (7.14mm)
