| 10ZLH1500MEFC10X16 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

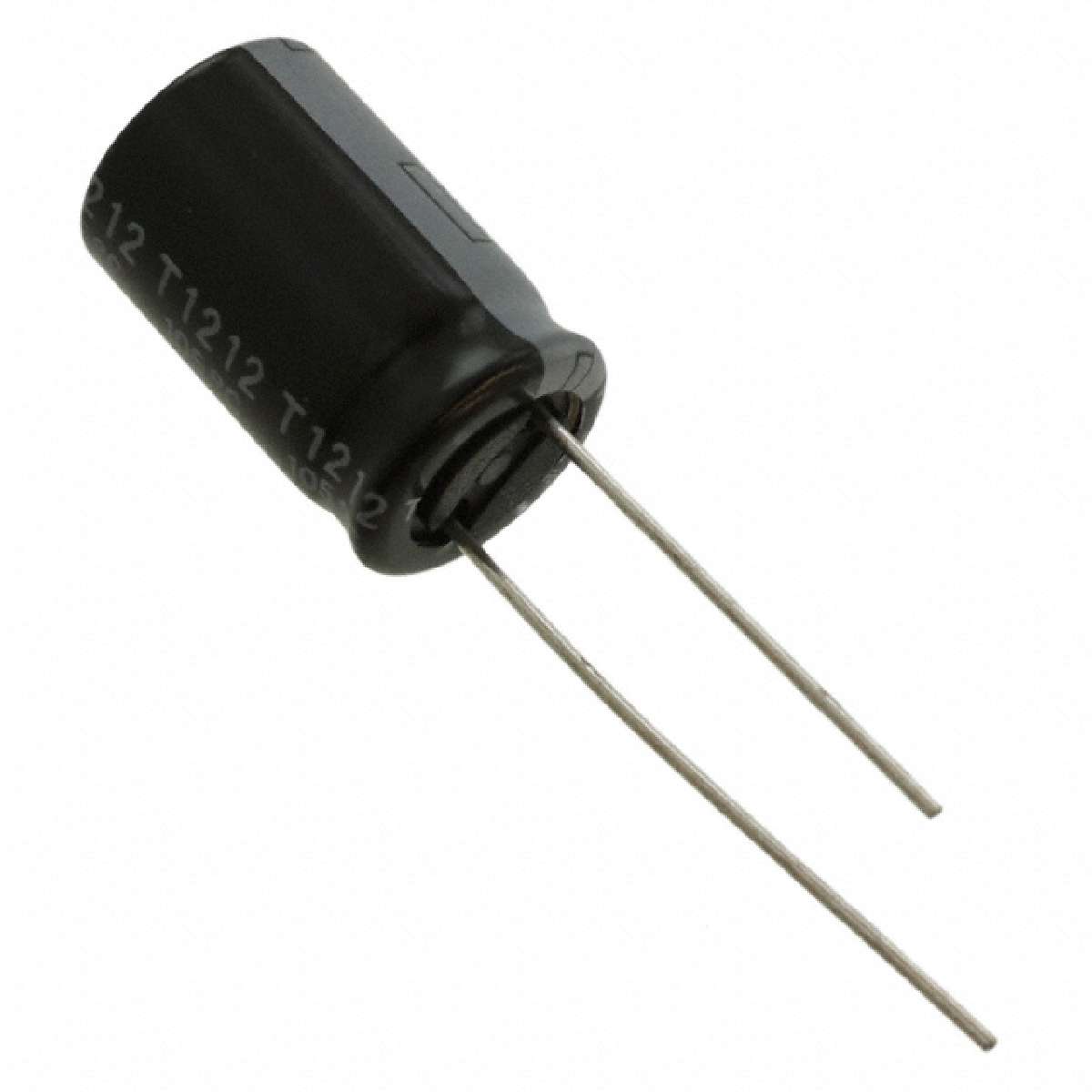

CAP ALUM 1500UF 20% 10V RADIAL
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage Rating | 10V |
|---|---|
| Tolerance | ±20% |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Standard Package | 1,000 |
| Ripple Current | 1.056A |
| Series | ZLH |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Categories | Capacitors ->Aluminum Electrolytic Capacitors |
| Ripple Current @ Low Frequency | 1.056A @ 120Hz |
| Impedance | 28 mOhm |
| Lead Spacing | 0.197" (5.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Applications | General Purpose |
| Capacitance | 1500µF |
| Packaging | Bulk |
| Online Catalog | ZLH Series |
| Family | Aluminum Capacitors |
| Operating Temperature | -40°C ~ 105°C |
| Categories | Capacitors ->Aluminum Electrolytic Capacitors |
| Ripple Current @ Low Frequency | 1.056A @ 120Hz |
