| PI3749-00-LGIZ | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

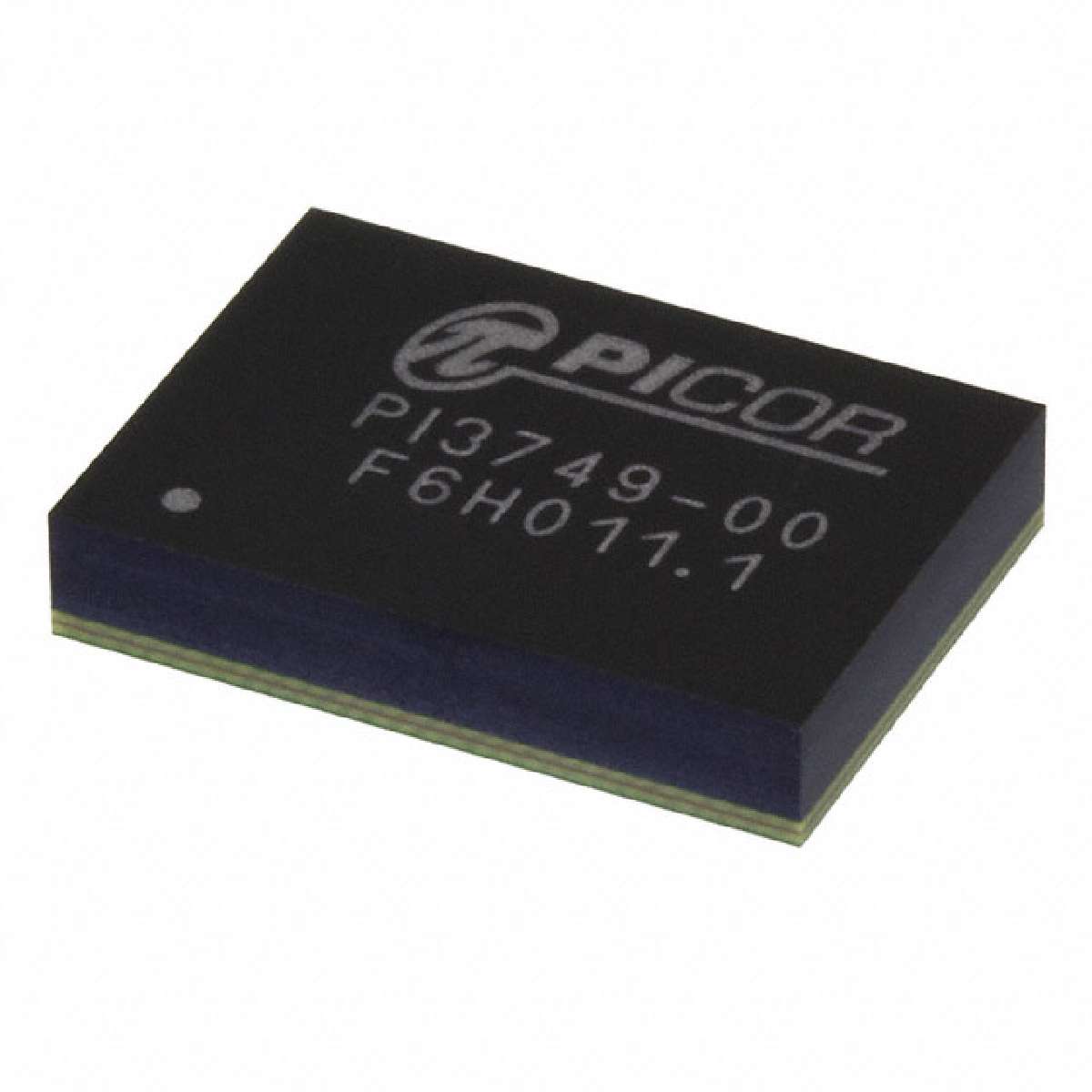

PI3749 Series 10 x 14 mm 16 to 34 Vin 200 W Cool-Power Buck-Boost Regulator
|
||
| 标准包装：136 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Number of Outputs | 1 |
|---|---|
| Type | Non-Isolated PoL Module, Digital |
| Features | Remote On/Off, OCP, OTP, OVP, SCP, UVLO |
| Part Status | Active |
| Efficiency | 98% |
| Voltage - Input (Max) | 34V |
| Series | Picor® Cool-Power® |
| Voltage - Input (Min) | 16V |
| Mounting Type | Surface Mount |
| Packaging | Tray |
| Package / Case | 108-LGA |
| Current - Output (Max) | 7.5A |
| Size / Dimension | 0.55" L x 0.39" W x 0.10" H (14.0mm x 10.0mm x 2.6mm) |
| Category | Power Supplies - Board Mount |
| Manufacturer | Vicor Corporation |
| Voltage - Output 1 | 12 ~ 34 V |
| Family | DC DC Converters |
| Applications | ITE (Commercial) |
| Operating Temperature | -40°C ~ 125°C |
| ECCN | EAR99 |
