| 2-435802-2 | ||
|---|---|---|
|
|
||
|
||

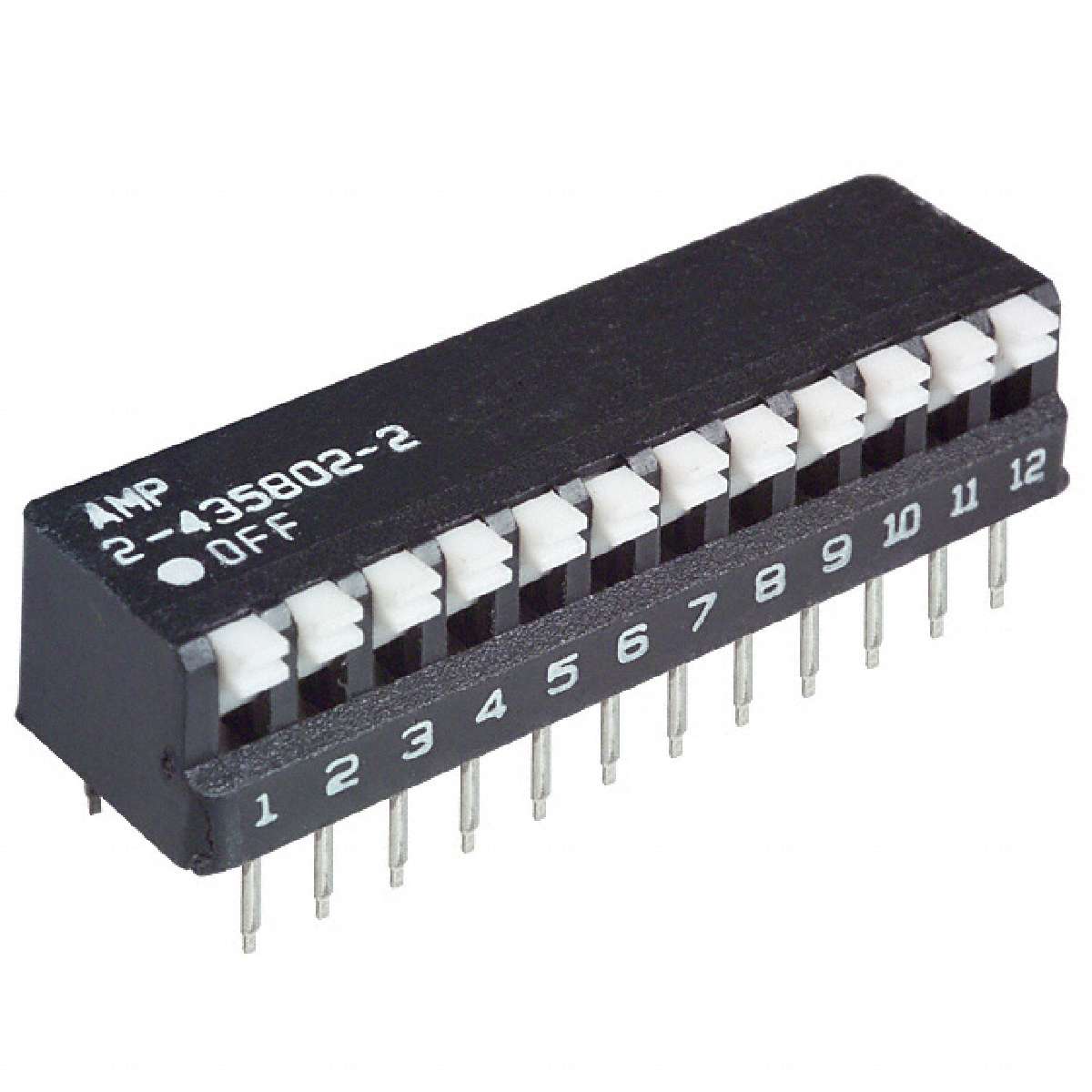

| Product description : RIGHT ANGLE DIP SW 12 P SEALED | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Voltage Rating | 24VDC |
|---|---|
| Termination Style | PC Pin |
| Electrical Life | 7,000 Cycles |
| Washable | Yes |
| Packaging | Tube |
| Circuit | SPST |
| Features | Tape Seal |
| Category | Switches |
| Actuator Level | Raised |
| Mechanical Life | 7,000 Cycles |
| Series | 7000 |
| Operating Temperature | -55°C ~ 105°C |
| Pitch | 0.100" (2.54mm), Full |
| Contact Finish | Gold |
| Body Material | Polyester (PET), Glass Filled |
| Manufacturer | TE Connectivity ALCOSWITCH Switches |
| Mounting Type | Through Hole, Right Angle |
| Height Above Board | 0.290" (7.37mm) |
| Actuator Type | Piano |
| Part Status | Obsolete |
| Contact Material | Copper Alloy |
| Length | 1.280" (32.51mm) |
| Number of Positions | 12 |
| Family | DIP Switches |
| Current Rating | 25mA |
You can comment after logging in.
Availability3Request Stock Notification
Supplier Code:SP1038
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$6.4189
￥53.31312
| stock | 10 | Update On 2025-02-17 |
|---|---|---|
| Lead-Time | -- | |
| Supplier SPQ/MOQ | 1/1 | |
| Location | -- | |
| DateCode | 2021/12/24 |
Supplier Code:SP1027
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$6.6495
￥55.228408959762739
See more prices
| 9+ | $6.6495 |
|---|---|
| 90+ | $6.5255 |
| 252+ | $6.4015 |
| 405+ | $6.2775 |
| stock | 1008 | Update On 2025-02-17 |
|---|---|---|
| Lead-Time | 0Weeks | |
| Supplier SPQ/MOQ | 1/18 | |
| Location | -- | |
| DateCode | -- |
