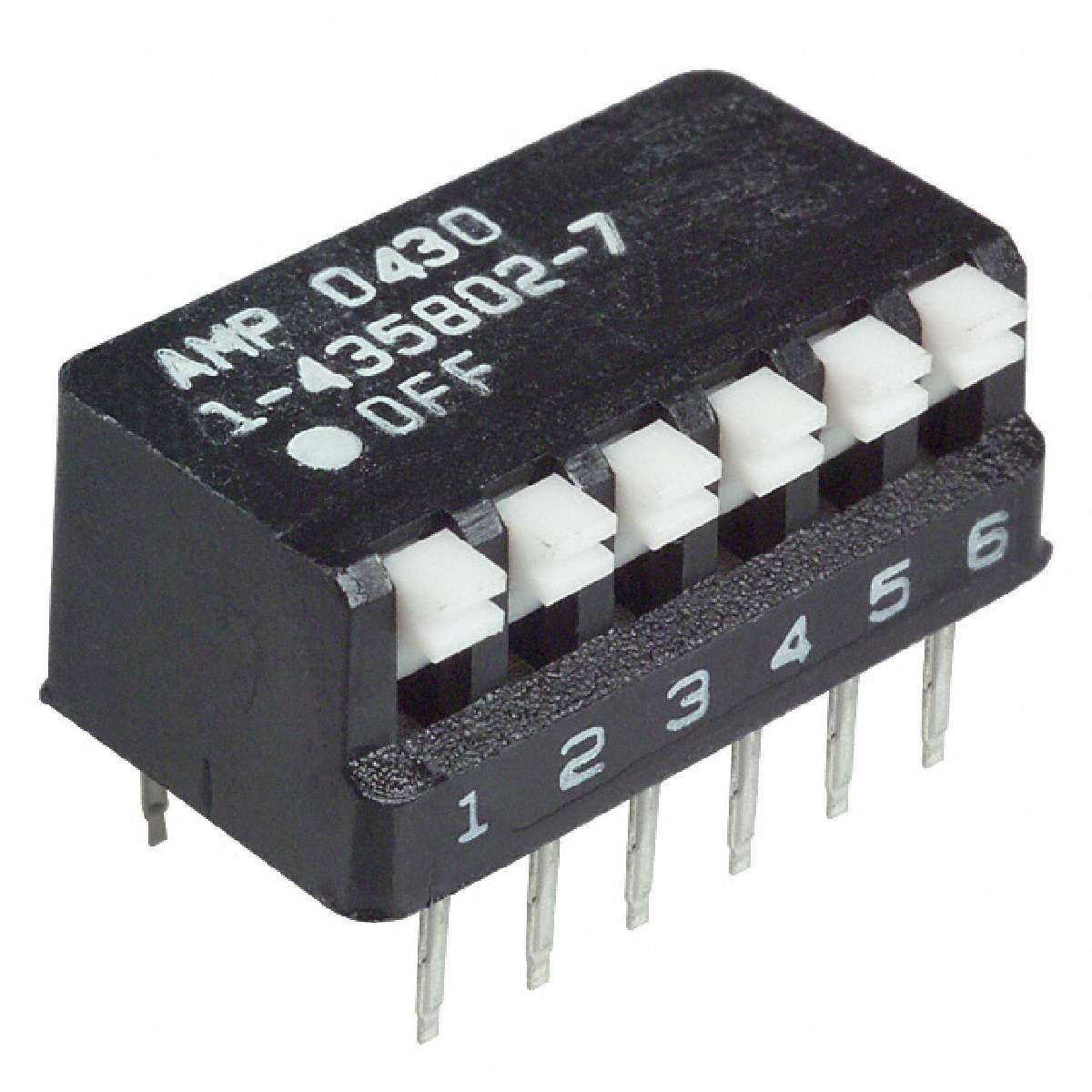

| 1-435802-7 | ||
|---|---|---|
|
|
||
|
||
| Product description : R/A PLASTISOL 6 POS DIP SW | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Voltage Rating | 24VDC |
|---|---|
| Termination Style | PC Pin |
| Electrical Life | 7,000 Cycles |
| Washable | Yes |
| Packaging | Tube |
| Circuit | SPST |
| Features | Tape Seal |
| Category | Switches |
| Actuator Level | Raised |
| Mechanical Life | 7,000 Cycles |
| Series | 7000 |
| Operating Temperature | -55°C ~ 105°C |
| Pitch | 0.100" (2.54mm), Full |
| Contact Finish | Gold |
| Body Material | Polyester (PET), Glass Filled |
| Manufacturer | TE Connectivity ALCOSWITCH Switches |
| Mounting Type | Through Hole, Right Angle |
| Height Above Board | 0.290" (7.37mm) |
| Actuator Type | Piano |
| Part Status | Active |
| Contact Material | Copper Alloy |
| Length | 0.680" (17.27mm) |
| Number of Positions | 6 |
| Family | DIP Switches |
| Current Rating | 25mA |
