| RF0003-000 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

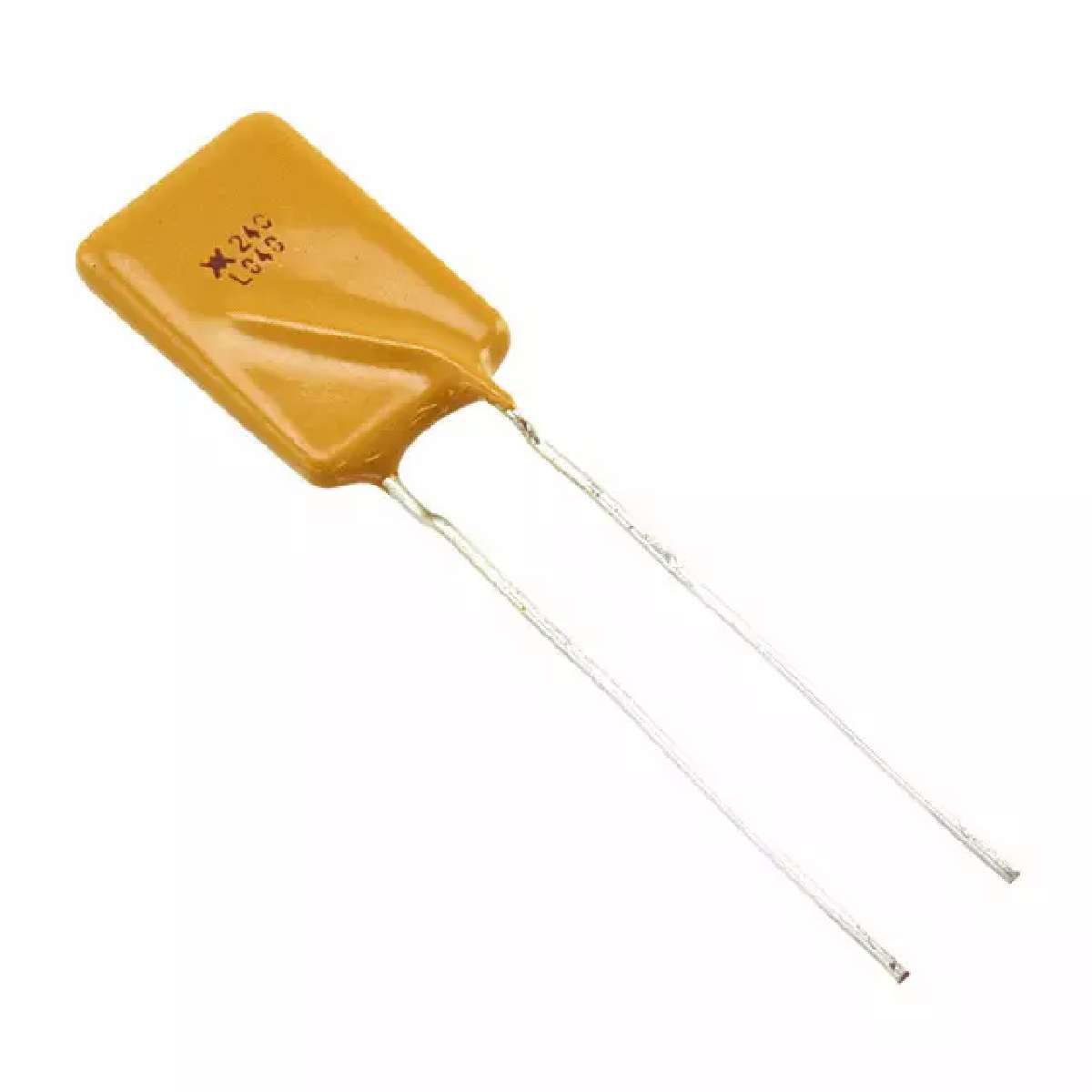

TE Connectivity 0.4A 径向 自复型引线端接熔断器, 240 V 交流
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package / Case | Radial, Disc |
|---|---|
| Lead Spacing | 0.200" (5.08mm) |
| Part Status | Active |
| Category | Circuit Protection |
| Height - Seated (Max) | 0.820" (20.90mm) |
| Current - Max | 5.5A |
| Mounting Type | Through Hole |
| Current - Hold (Ih) (Max) | 400mA |
| Packaging | Tape & Reel (TR) |
| R Min/Max | 0.600 ~ 0.970 Ohm |
| Size / Dimension | 0.453" L x 0.150" W (11.50mm x 3.80mm) |
| Time to Trip | 24s |
| Manufacturer | Littelfuse Inc. |
| Series | PolySwitch®, LVR |
| Family | PTC Resettable Fuses |
| Voltage - Max | 240V |
| Current - Trip (It) | 900mA |
