| Z8F0411PH020SG | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

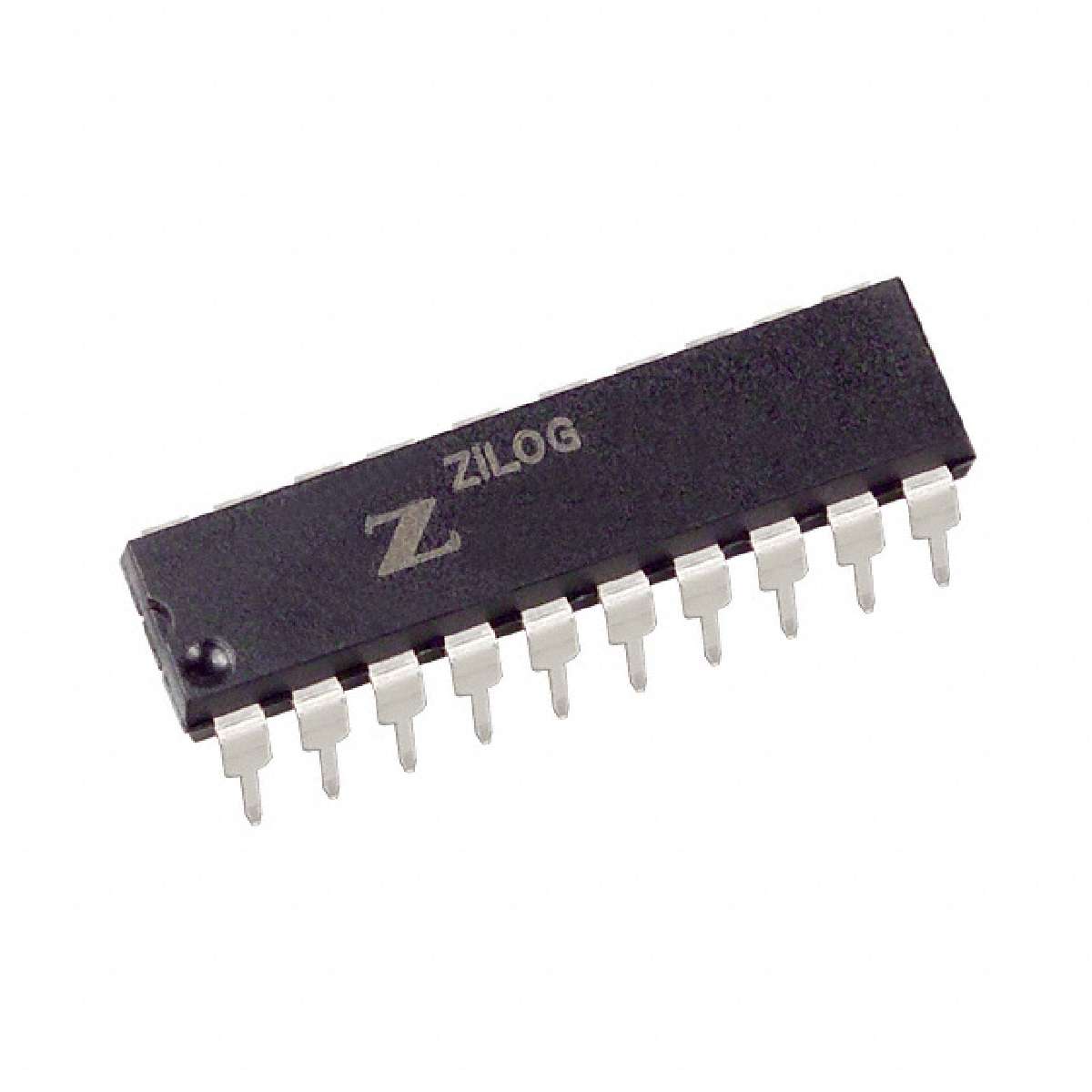

Z8 Encore! XP® F0822 Series 1 kB RAM 4 kB Flash Microcontroller - PDIP-20
|
||
| 标准包装：18 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Oscillator Type | Internal |
|---|---|
| Voltage - Supply (Vcc/Vdd) | 2.7 V ~ 3.6 V |
| Core Size | 8-Bit |
| RAM Size | 1K x 8 |
| Number of I/O | 11 |
| Connectivity | I²C, IrDA, UART/USART |
| Speed | 20MHz |
| Series | Encore!® XP® |
| Operating Temperature | 0°C ~ 70°C |
| ECCN | EAR99 |
| Package / Case | 20-DIP (0.300", 7.62mm) |
| Core Processor | eZ8 |
| Supplier Device Package | * |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Standard Package | 18 |
| Packaging | Tube |
| Program Memory Type | FLASH |
| Family | Embedded - Microcontrollers |
| Program Memory Size | 4KB (4K x 8) |
