| 20SEQP22M | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

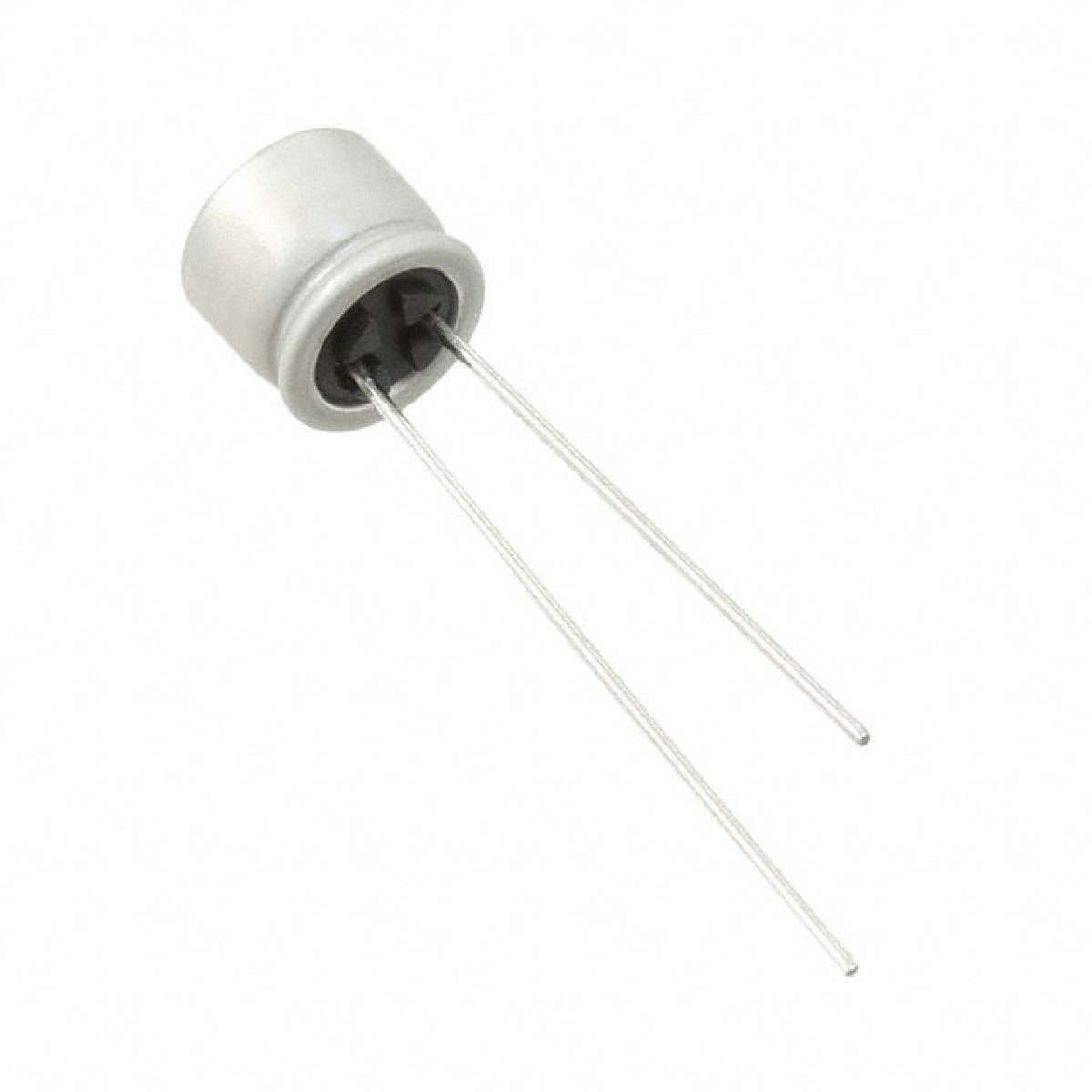

SEQP Series 22 uF 20 V Ø6.3x6mm LS=2.5mm Radial Aluminum Polymer Capacitor
|
||
| 标准包装：500 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage Rating | 20V |
|---|---|
| Package / Case | Radial, Can |
| Lead Spacing | 0.098" (2.50mm) |
| ESR (Equivalent Series Resistance) | 60 mOhm |
| Part Status | Active |
| Category | Capacitors |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Family | Aluminum - Polymer Capacitors |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 125°C |
| ECCN | EAR99 |
| Tolerance | ±20% |
| Type | Polymer |
| Capacitance | 22µF |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Ripple Current | 1.45A |
| Manufacturer | Panasonic Electronic Components |
| Series | OS-CON™, SEQP |
| Applications | General Purpose |
| Lifetime @ Temp. | 1000 Hrs @ 125°C |
| Packaging | Bulk |
