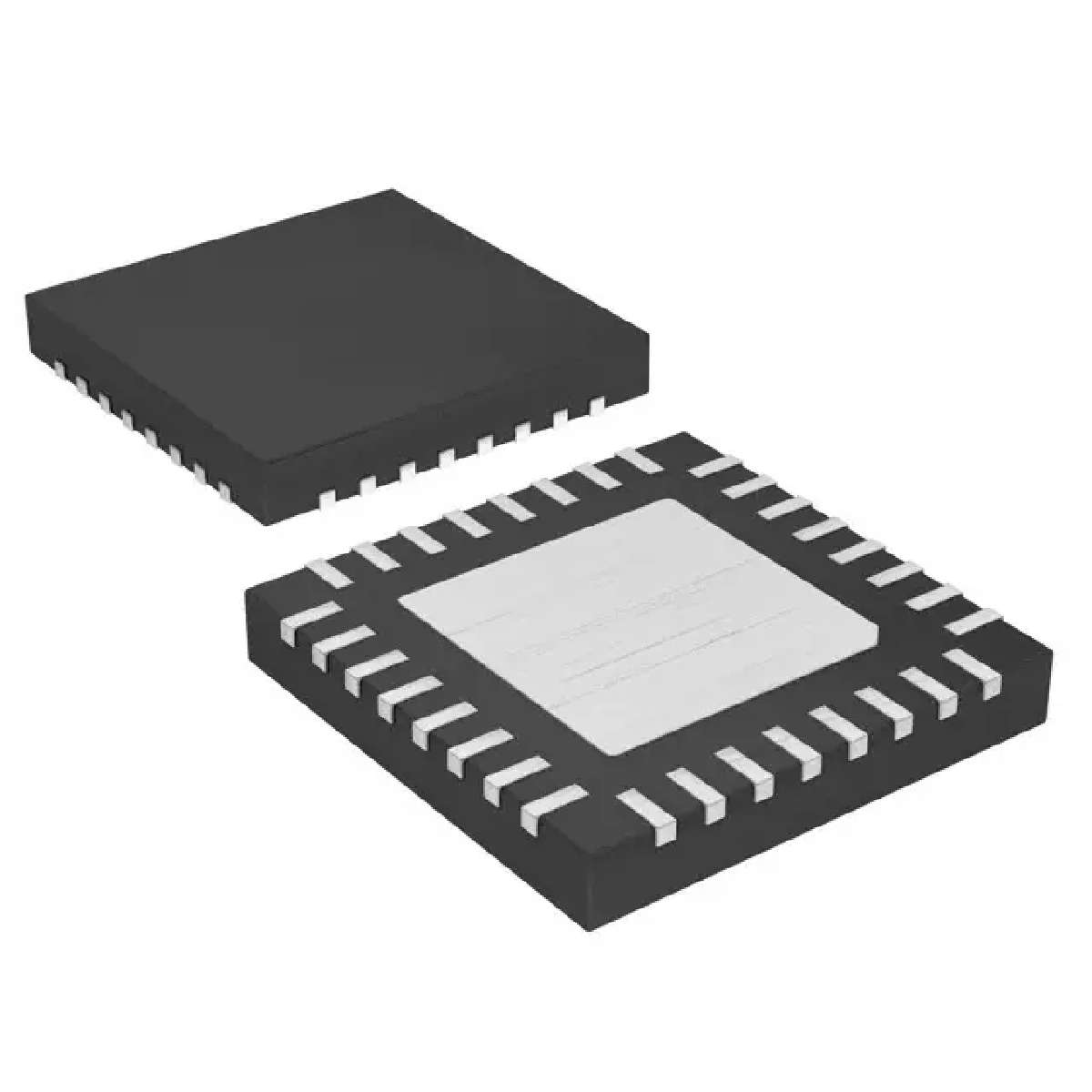

| ATMEGA168PB-MU | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
AVR microcontroller; EEPROM: 512B; SRAM: 1kB; Flash: 16kB; VQFN32
|
||
| 标准包装：100 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Product: | MCU |
|---|---|
| Processor Series: | megaAVR |
| ADC Resolution: | 10 bit |
| Data RAM Size: | 1 kB |
| Watchdog Timers: | Watchdog Timer |
| Core: | AVR |
| Package / Case: | VFQFN-32 |
| Maximum Clock Frequency: | 20 MHz |
| Data ROM Size: | 512 B |
| Number of I/Os: | 27 I/O |
| Operating Supply Voltage: | 1.8 V to 5.5 V |
| Data RAM Type: | SRAM |
| Program Memory Size: | 16 kB |
| RoHS: | Details |
| Product Category: | 8-bit Microcontrollers - MCU |
| ECCN | ECL99 |
| Package / Case | TRAY |
| Packaging: | Tube |
| Program Memory Type: | Flash |
| Interface Type: | I2C, SPI, USART |
| Minimum Operating Temperature: | - 40 C |
| Supply Voltage - Min: | 1.8 V |
| Number of Timers/Counters: | 2 x 8 bit, 1 x 16 bit |
| Supply Voltage - Max: | 5.5 V |
| Mounting Style: | SMD/SMT |
| Number of ADC Channels: | 8 Channel |
| Manufacturer: | Atmel |
| Data ROM Type: | EEPROM |
| Factory Pack Quantity: | 490 |
| Brand: | Atmel |
| Data Bus Width: | 8 bit |
| Maximum Operating Temperature: | + 85 C |
| SDP | 32-VQFN 5x5x0.9mm |
