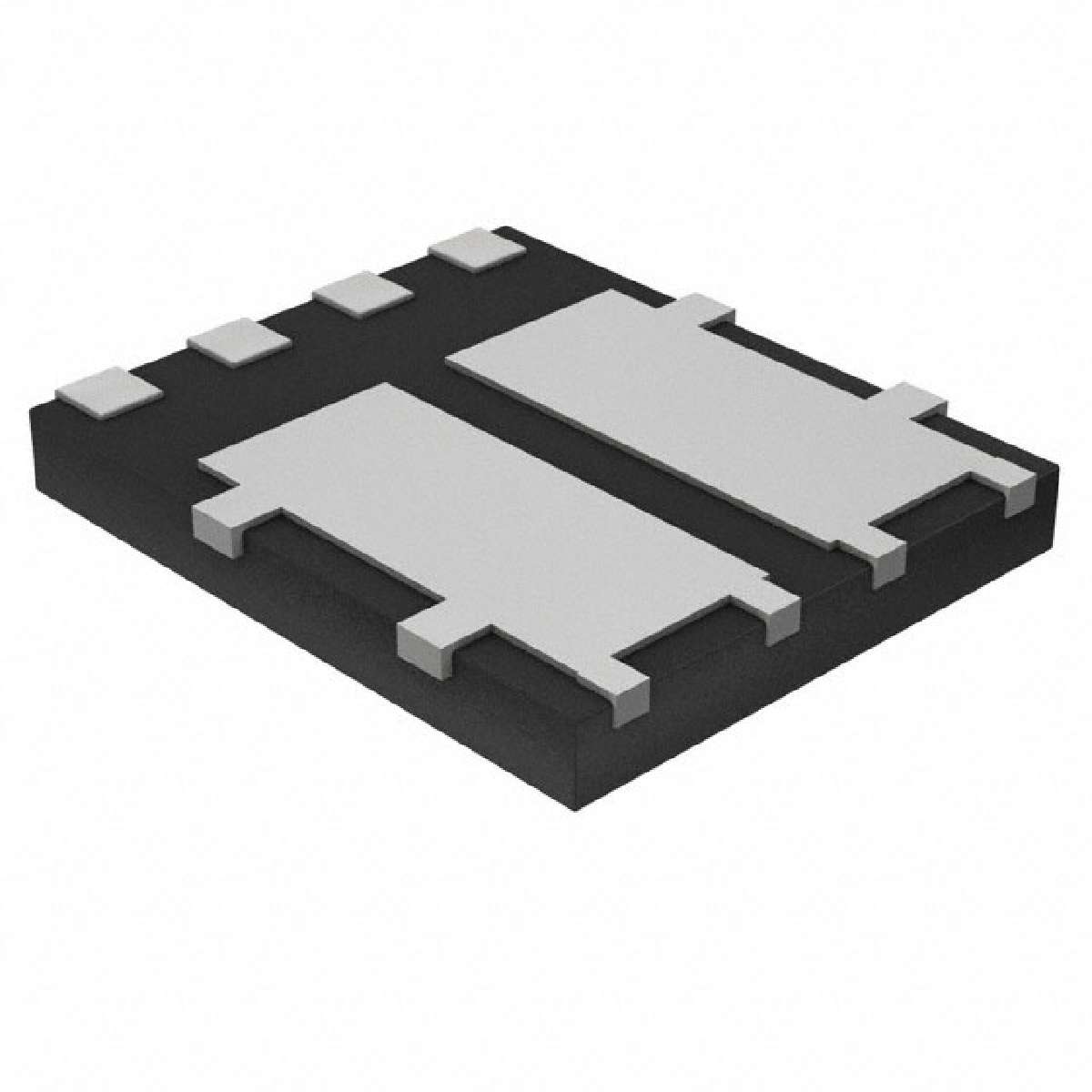

| NVMFD5853NWFT1G | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
MOSFET 2N-CH 40V 12A SO8FL
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| FET Feature | Logic Level Gate |
|---|---|
| Package / Case | 8-PowerTDFN |
| Drain to Source Voltage (Vdss) | 40V |
| Current - Continuous Drain (Id) @ 25°C | 12A |
| Part Status | Active |
| Manufacturer | ON Semiconductor |
| Family | Transistors - FETs, MOSFETs - Arrays |
| Mounting Type | Surface Mount |
| Input Capacitance (Ciss) @ Vds | 1225pF @ 25V |
| Rds On (Max) @ Id, Vgs | 10 mOhm @ 15A, 10V |
| Power - Max | 3.1W |
| Supplier Device Package | 8-DFN (5x6) Dual Flag (SO8FL-Dual-Asymmetrical) |
| Gate Charge (Qg) @ Vgs | 24nC @ 10V |
| Category | Discrete Semiconductor Products |
| FET Type | 2 N-Channel (Dual) |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Packaging | Tape & Reel (TR) |
