| SLF10145T-331MR54-PF | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

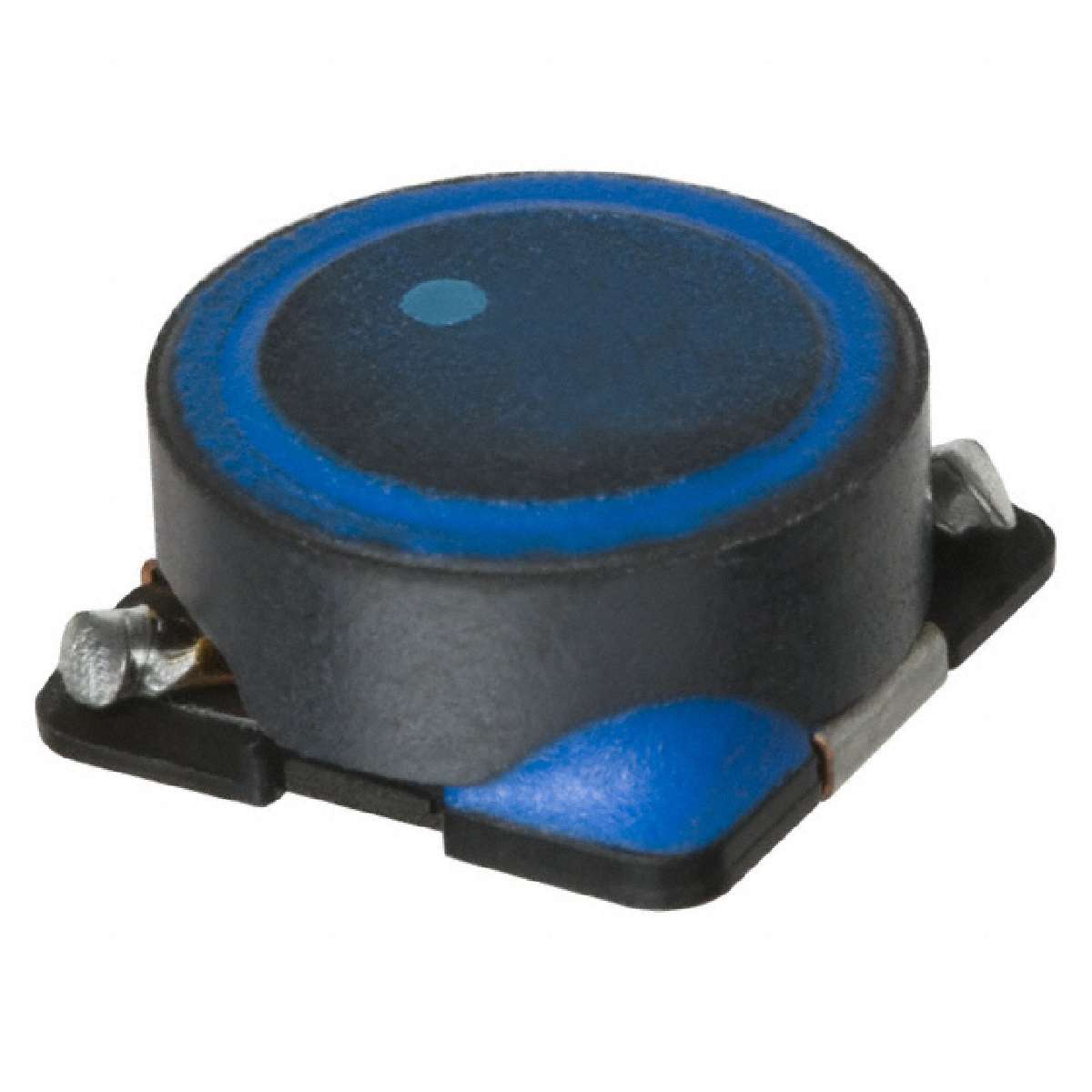

SLF Series 10.1 x 10.1 mm 330uH ±20 % Tol. 0.54A Shielded SMT Power Inductor
|
||
| 标准包装：500 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| 电感 | 330µH |
|---|---|
| DC 电阻（DCR） | 680 毫欧 |
| 频率 - 测试 | 1kHz |
| 容差 | ±20% |
| 安装类型 | 表面贴装 |
| 电流 - 饱和值 | 540mA |
| 屏蔽 | 屏蔽 |
| Frequency - Test | 1kHz |
| Current - Saturation | 540mA |
| Height - Seated (Max) | 0.189" (4.80mm) |
| Current Rating | 580mA |
| Mounting Type | Surface Mount |
| DC Resistance (DCR) | 816 mOhm Max |
| Inductance | 330µH |
| Package / Case | Nonstandard |
| Packaging | Tape & Reel (TR) |
| Material - Core | Ferrite |
| 封装/外壳 | 非标准 |
| 高度 - 安装（最大值） | 0.189"（4.80mm） |
| 材料 - 磁芯 | 铁氧体 |
| 大小/尺寸 | 0.398" 长 x 0.398" 宽（10.10mm x 10.10mm） |
| 工作温度 | -40°C ~ 105°C |
| 额定电流 | 580mA |
| 类型 | 绕线 |
| Operating Temperature | -40°C ~ 105°C |
| Categories | Inductors, Coils, Chokes |
| Tolerance | ±20% |
| Shielding | Shielded |
| Size / Dimension | 0.398" L x 0.398" W (10.10mm x 10.10mm) |
| Series | SLF |
| Type | Wirewound |
| Manufacturer | TDK Corporation |
| Part Status | Active |
登录之后就可发表评论
Availability5Request Stock Notification
Supplier Code:SP1034
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$0.43716
￥3.6308994737645799
| 500+ | $0.43716 |
|---|---|
| 1000+ | $0.42854 |
| 2000+ | $0.41992 |
| stock | 420 | Update On 2025-06-04 |
|---|---|---|
| Lead-Time | -- | |
| Supplier SPQ/MOQ | 1/500 | |
| Location | -- | |
| DateCode | -- |
Supplier Code:SP1034
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$0.59714
￥4.959630801047250
| 20+ | $0.59714 |
|---|---|
| 140+ | $0.58394 |
| 260+ | $0.57143 |
| stock | 420 | Update On 2025-06-04 |
|---|---|---|
| Lead-Time | -- | |
| Supplier SPQ/MOQ | 1/20 | |
| Location | -- | |
| DateCode | -- |
Supplier Code:SP1034
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$0.58394
￥4.8499999999999996
| 140+ | $0.58394 |
|---|---|
| 260+ | $0.57143 |
| stock | 420 | Update On 2025-06-04 |
|---|---|---|
| Lead-Time | -- | |
| Supplier SPQ/MOQ | 1/140 | |
| Location | -- | |
| DateCode | -- |
Supplier Code:SP1027
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$0.53475
￥4.4414491521762685
See more prices
| 90+ | $0.53475 |
|---|---|
| 100+ | $0.5332 |
| 500+ | $0.51925 |
| 1000+ | $0.5177 |
| stock | 3500 | Update On 2025-02-07 |
|---|---|---|
| Lead-Time | 0Weeks | |
| Supplier SPQ/MOQ | 500/90 | |
| Location | -- | |
| DateCode | -- |
