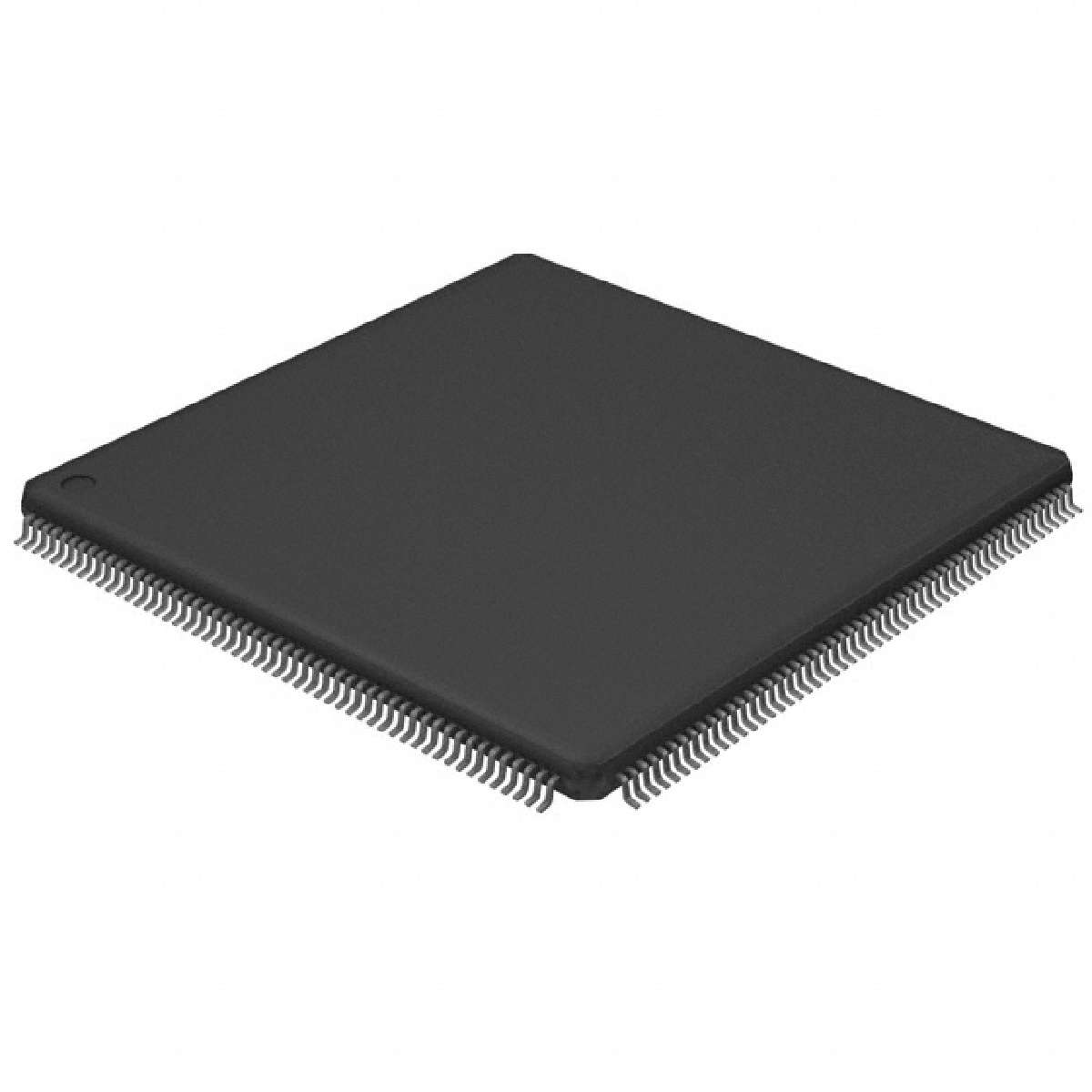

| LPC1778FBD208,551 | ||
|---|---|---|
|
|
||
|
||
| Product description : LPC17xx Series 512 kB Flash 96 kB RAM 120 MHz 32-Bit-Microcontroller - LQFP-208 | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| RoHS | Lead free / RoHS Compliant |
|---|---|
| Core Size | 32-Bit |
| Connectivity | CAN, EBI/EMI, Ethernet, I²C, Microwire, Memory Card, SPI, SSI, SSP, UART/USART, USB OTG |
| EEPROM Size | 4K x 8 |
| Oscillator Type | Internal |
| Core Processor | ARM® Cortex®-M3 |
| Supplier Device Package | 208-LQFP (28x28) |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, Motor Control PWM, POR, PWM, WDT |
| PCN Design/Specification | LPC177x/178x Datasheet Update 05/Jun/2014 |
| Speed | 120MHz |
| Program Memory Type | FLASH |
| Family | Embedded - Microcontrollers |
| Data Converters | A/D 8x12b, D/A 1x10b |
| Voltage - Supply (Vcc/Vdd) | 2.4 V ~ 3.6 V |
| Number of I/O | 165 |
| Product Training Modules | Introduction to LPC1700 Series |
| Program Memory Size | 512KB (512K x 8) |
| Package / Case | 208-LQFP |
| For Use With | EA-XPR-200-ND - LPC-LINK 2 568-10930-ND - BOARD EVAL LPC-LINK 2 |
| RAM Size | 96K x 8 |
| Standard Package | 36 |
| Packaging | Tray |
| Online Catalog | LPC17xx |
| Series | LPC17xx |
| Operating Temperature | -40°C ~ 85°C |
