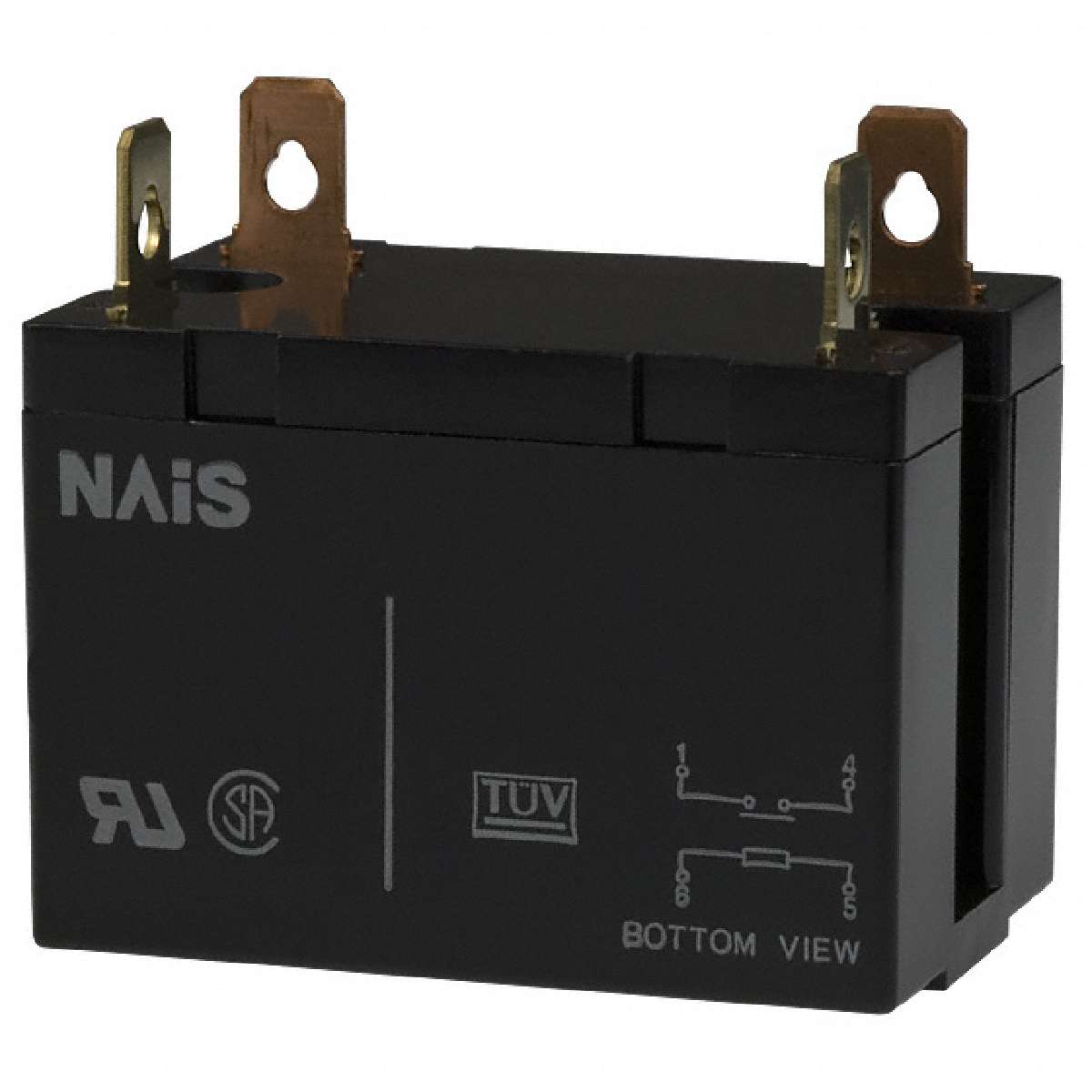

| HE1AN-AC120V | ||
|---|---|---|
|
|
||
|
||
| Product description : HE Series 30 A SPST 120 VAC Plug-In Non-Polarized Compact Power Relay | ||
| SPQ：20 | ||
| Datasheet : |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Contact Form | SPST-NO (1 Form A) |
|---|---|
| Turn Off Voltage (Min) | 18 VAC |
| Operate Time | 30ms |
| Coil Type | Non Latching |
| Category | Relays |
| Manufacturer | Panasonic Electric Works |
| Switching Voltage | 277VAC, 30VDC - Max |
| Relay Type | General Purpose |
| Coil Voltage | 120VAC |
| Mounting Type | Chassis Mount |
| Operating Temperature | -50°C ~ 55°C |
| ECCN | EAR99 |
| Coil Power | 2.7 VA |
| Termination Style | Plug In, Quick Connect - 0.250" (6.3mm) |
| Turn On Voltage (Max) | 84 VAC |
| Part Status | Active |
| Coil Current | 21mA |
| Release Time | 30ms |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Series | HE |
| Family | Power Relays, Over 2 Amps |
| Contact Rating (Current) | 30A |
| Packaging | Bulk |
| Datasheet： |
|---|
You can comment after logging in.
Availability3Request Stock Notification
Supplier Stock
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
| stock | 1000 | Update On 2025-07-08 |
|---|---|---|
| Lead-Time | -- | |
| SPQ/MOQ | 20/1 | |
| Location | -- | |
| DateCode | 2021 |
Supplier Code:SP1027
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$32.08934
￥266.5227595556916
See more prices
| 3+ | $32.08934 |
|---|---|
| 5+ | $31.54483 |
| 10+ | $31.01845 |
| 20+ | $20.1872 |
| 50+ | $19.37965 |
| 100+ | $18.71904 |
| stock | 649 | Update On 2024-04-22 |
|---|---|---|
| Lead-Time | 0Weeks | |
| Supplier SPQ/MOQ | 20/3 | |
| Location | -- | |
| DateCode | 1802 |
