| W2.4-5P-U | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

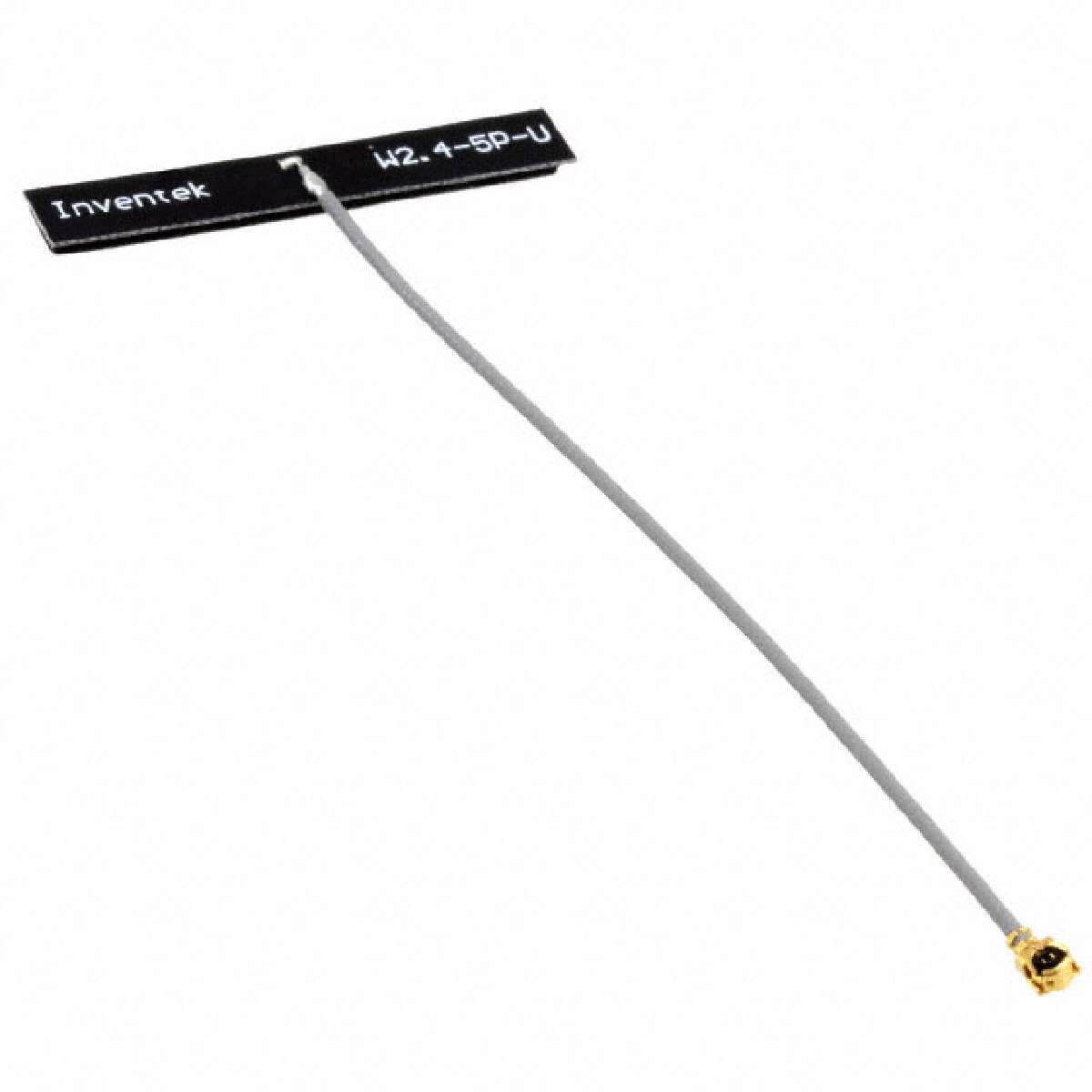

RF ANT 2.4/5GHZ PCB TRACE CABLE
|
||
| 标准包装：100 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Termination | Cable (90mm) - U.FL |
|---|---|
| Gain | 2.6dBi, 3.3dBi |
| Antenna Type | PCB Trace |
| Part Status | Active |
| Category | RF/IF and RFID |
| Family | RF Antennas |
| Applications | Wi-Fi |
| Frequency Range | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz |
| VSWR | 2 |
| Number of Bands | 2 |
| Frequency Group | UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz) |
| Frequency (Center/Band) | 2.4GHz, 5GHz |
| Manufacturer | Inventek Systems |
| Mounting Type | Surface Mount |
| Height (Max) | 0.039" (1.00mm) |
| Packaging | Bulk |
