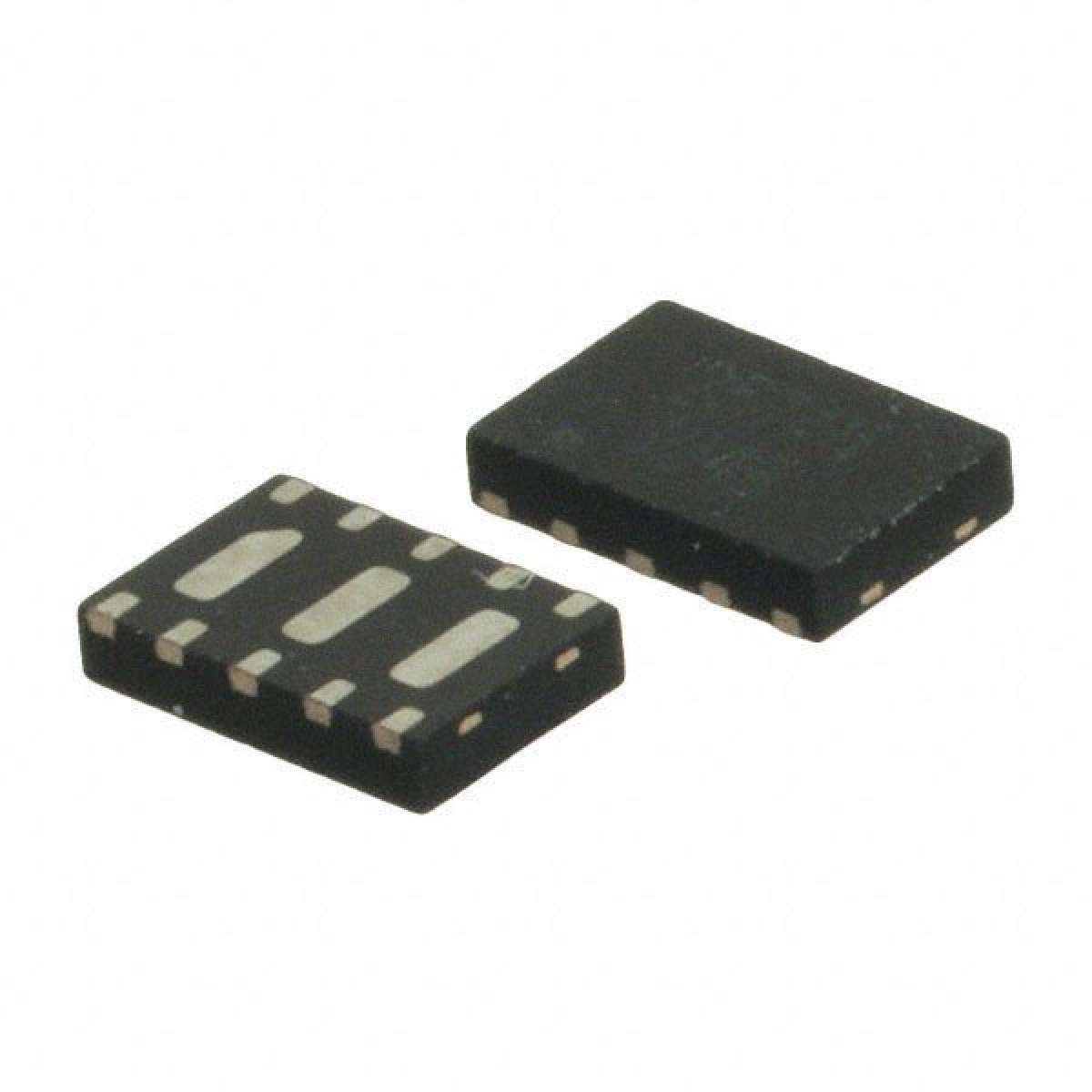

| RCLAMP3374N.TCT | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
RCLAMP Series 1 kW 3.3 V 3.6 pF 18 Vcl Bi-Directional TVS Diode-SLP3020N10
|
||
| 标准包装：3000 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Power - Peak Pulse | 1000W (1kW) |
|---|---|
| Package / Case | 10-UDFN Exposed Pad |
| Supplier Device Package | SLP3020N10 |
| Voltage - Clamping (Max) @ Ipp | 18V |
| Category | Circuit Protection |
| Bidirectional Channels | 8 |
| Voltage - Breakdown (Min) | 3.5V |
| Family | TVS - Diodes |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| ECCN | EAR99 |
| Capacitance @ Frequency | 3.6pF @ 1MHz |
| Type | Steering (Rail to Rail) |
| Power Line Protection | Yes |
| Part Status | Active |
| Manufacturer | Semtech Corporation |
| Current - Peak Pulse (10/1000µs) | 25A (8/20µs) |
| Series | Automotive, AEC-Q100, RailClamp® |
| Applications | Automotive, Ethernet |
| Voltage - Reverse Standoff (Typ) | 3.3V (Max) |
| Packaging | Cut Tape (CT) |
