| 39512000440 | ||
|---|---|---|
|
|
||
|
||

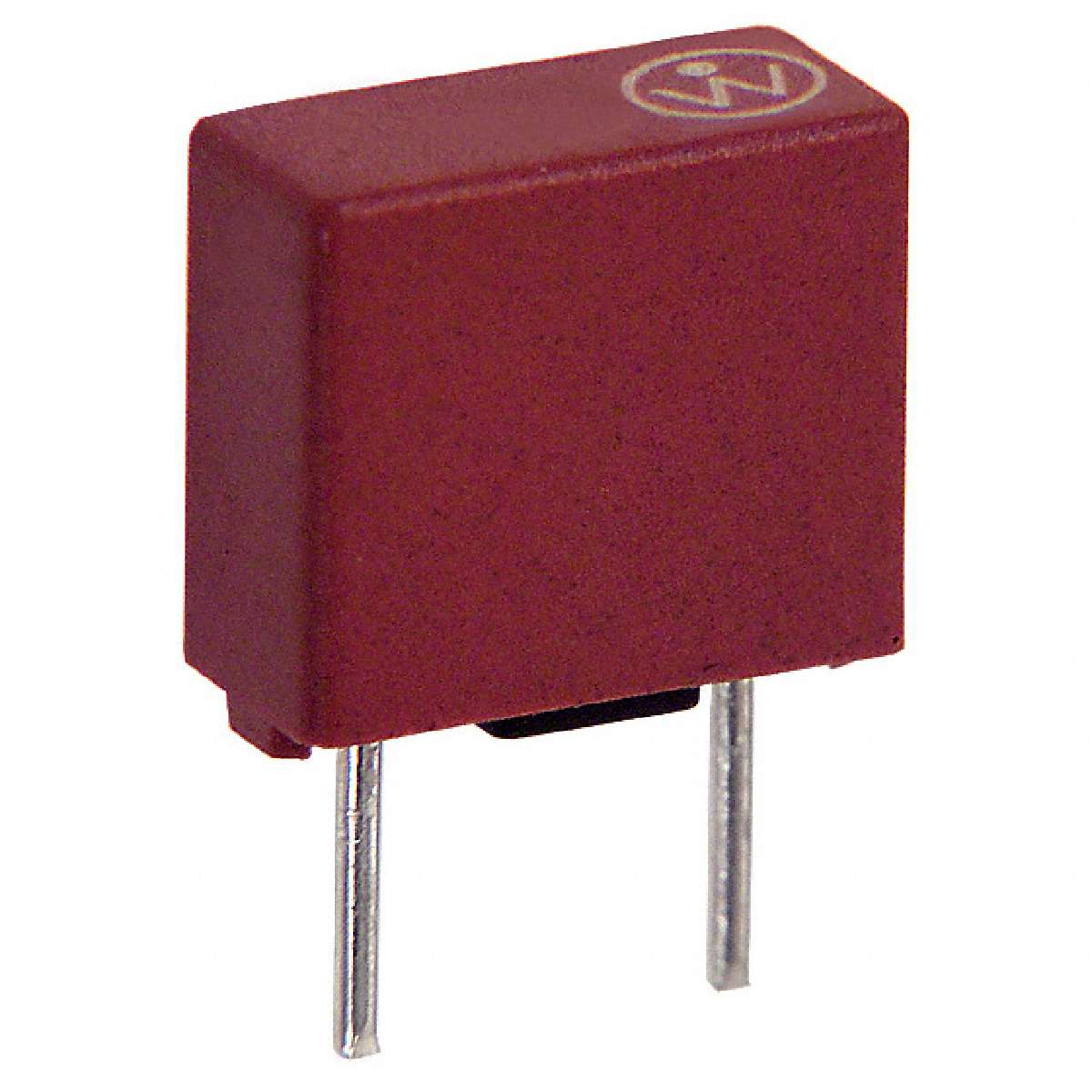

| Product description : 395 Series Fast-Acting 125 V 2 A 8.5 x 8 mm TE5® Radial Lead Fuse | ||
| SPQ：1400 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Kits | WK0117-KIT-ND - KIT FUSE TE5 125V UL |
|---|---|
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| DC Cold Resistance | 0.04123 Ohm |
| Melting I²t | 0.53 |
| Package / Case | Radial, Box |
| Voltage Rating - AC | 125V |
| Online Catalog | TE5® 395 Series |
| Family | Fuses |
| Breaking Capacity @ Rated Voltage | 100A |
| RoHS | Lead free / RoHS Compliant |
| Approvals | cUL, PSE/JET, UL |
| Size / Dimension | 0.335" L x 0.157" W x 0.315" H (8.50mm x 4.00mm x 8.00mm) |
| Mounting Type | Through Hole |
| Packaging | Bulk |
| Catalog Drawings | 395,396 Series Short Leads |
| Response Time | Fast |
| Series | TE5® 395 |
| Operating Temperature | -40°C ~ 85°C |
| Current Rating | 2A |
| ECCN | EAR99 |
