| LTPL-M08206ZS30-T0 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

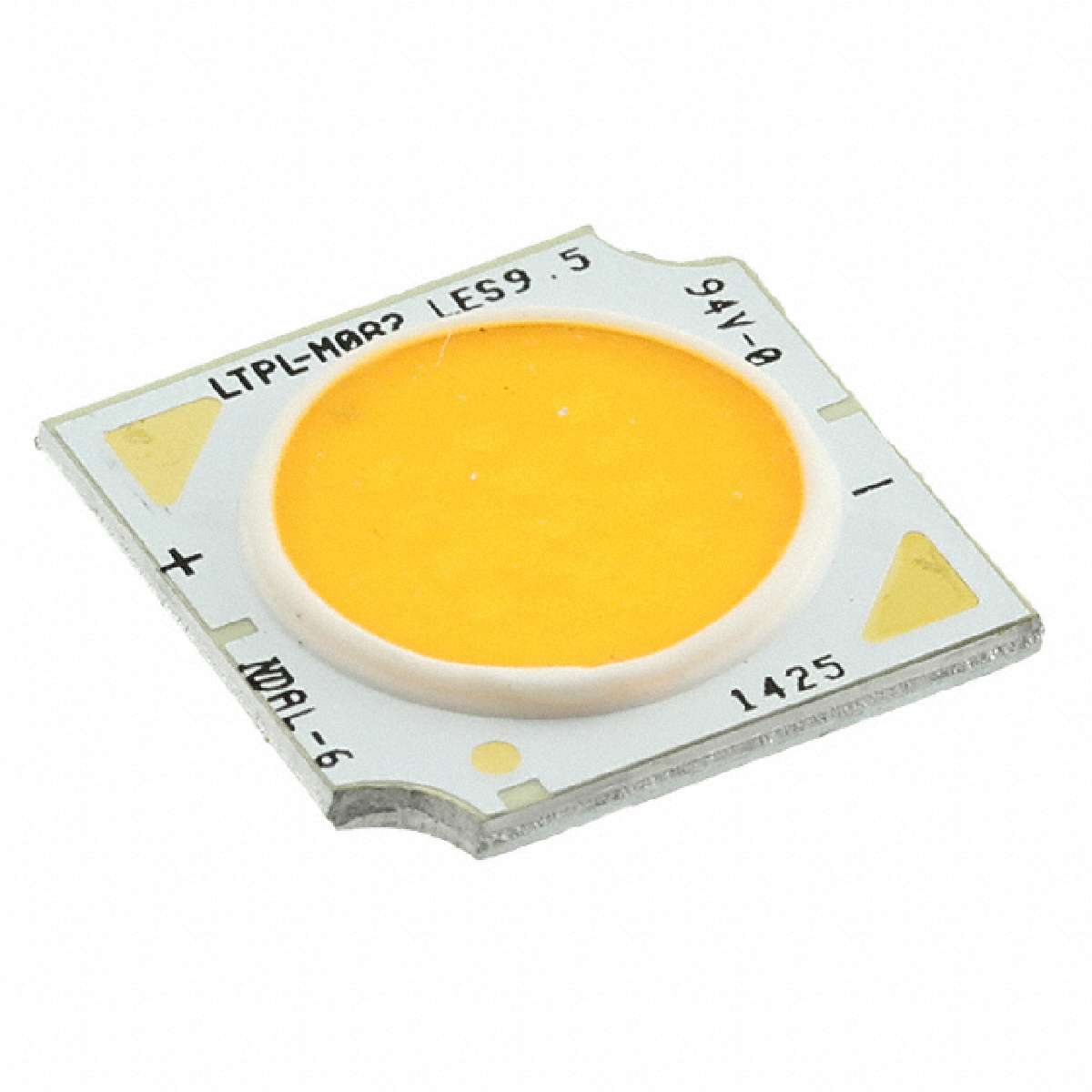

M08 36.5 V Chip-On-Board (COB) LED Array High Power 3000 K 585 lm 80 CRI
|
||
| 标准包装：30 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| CRI (Color Rendering Index) | 80 |
|---|---|
| Viewing Angle | 120° |
| Height | 1.80mm |
| CCT (K) | 3000K 3-Step MacAdam Ellipse |
| Size / Dimension | 13.50mm L x 13.50mm W |
| Light Emitting Surface (LES) | 1.80mm |
| Manufacturer | Lite-On Inc. |
| Voltage - Forward (Vf) (Typ) | 36.5V |
| Series | LTPL-M08 |
| Family | LED Lighting - COBs, Engines, Modules |
| Lumens/Watt @ Current - Test | 134 lm/W |
| ECCN | EAR99 |
| Lens Type | Flat |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Color | White, Warm |
| Part Status | Active |
| Temperature - Test | 25°C |
| Category | Optoelectronics |
| Current - Test | 120mA |
| Current - Max | 200mA |
| Flux @ Current/Temperature - Test | 585 lm (Typ) |
| Packaging | Tube |
