| D3V-162-1A4 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

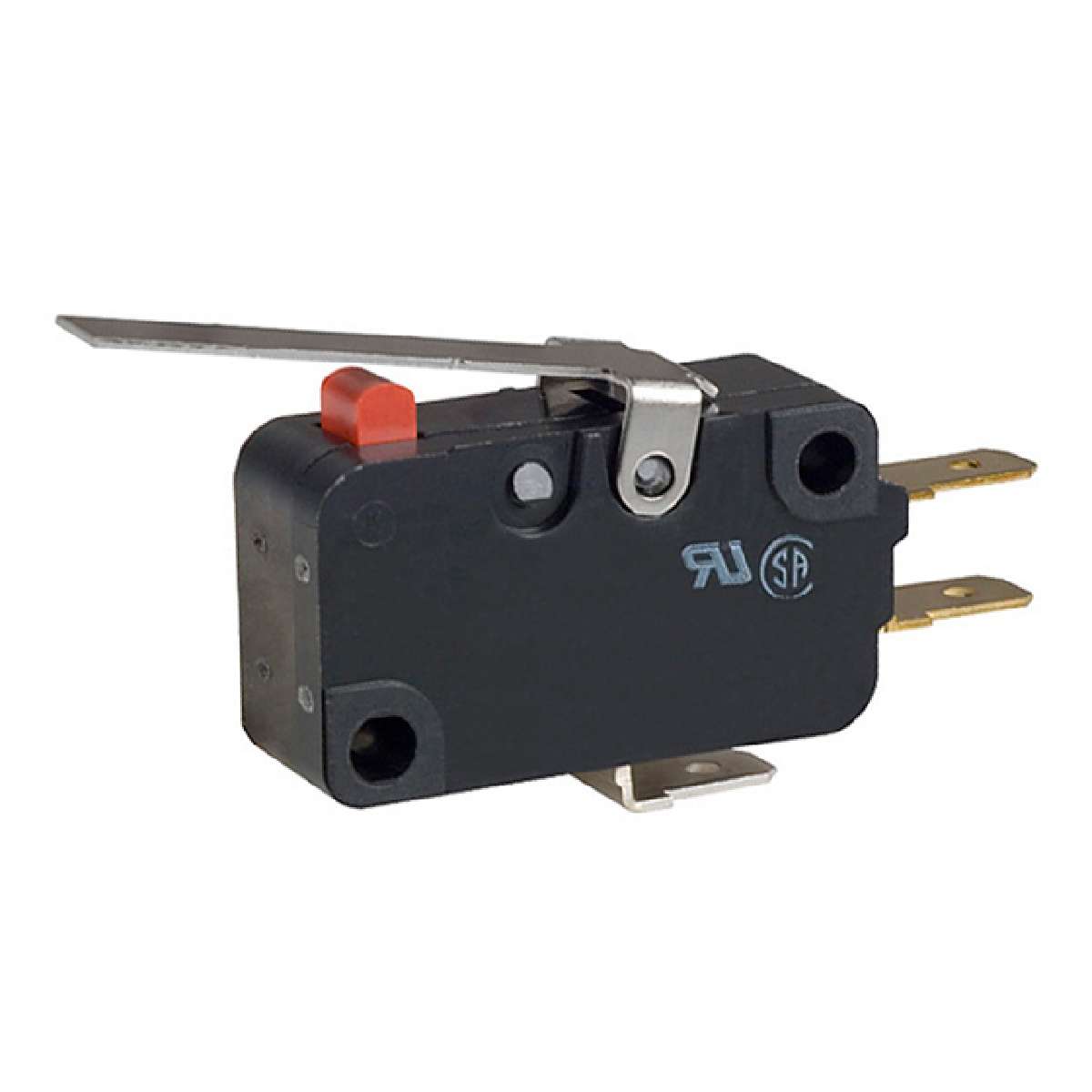

Microswitch SNAP ACTION; with lever; SPDT; 16A/250VAC; 10A/30VDC
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Circuit | SPDT |
|---|---|
| Release Force | 6gf |
| Differential Travel | 0.060" (1.5mm) |
| Ingress Protection | IP40 |
| Termination Style | Solder, Quick Connect - 0.187" (4.7mm) |
| Part Status | Active |
| Electrical Life | 100,000 Cycles |
| Manufacturer | Omron Electronics Inc-EMC Div |
| Mechanical Life | 10,000,000 Cycles |
| Family | Snap Action, Limit Switches |
| Overtravel | 0.062" (1.6mm) |
| Packaging | Bulk |
| Actuator Type | Lever, Straight |
| Switch Function | On-Mom |
| Pretravel | 0.157" (4.0mm) |
| Voltage Rating - AC | 250V |
| Voltage Rating - DC | 30V |
| Operating Force, Torque | 60gf |
| Category | Switches |
| Series | D3V |
| Operating Position | 0.600" (15.2mm) |
| Mounting Type | Chassis Mount |
| Operating Temperature | -25°C ~ 105°C |
| Current Rating | 16A (AC), 10A (DC) |
登录之后就可发表评论
Availability3Request Stock Notification
Supplier Code:SP1027
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$1.45003
￥12.04344
See more prices
| 103+ | $1.45003 |
|---|---|
| 250+ | $1.40461 |
| 500+ | $1.36214 |
| 1000+ | $1.322 |
| 2500+ | $1.28433 |
| 5000+ | $1.24868 |
| stock | 4154 | Update On 2024-05-15 |
|---|---|---|
| Lead-Time | 0Weeks | |
| Supplier SPQ/MOQ | 1/103 | |
| Location | -- | |
| DateCode | -- |
Supplier Code:SP1034
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$1.33579
￥11.09460
| 5+ | $1.33579 |
|---|---|
| 250+ | $1.28881 |
| stock | 1935 | Update On 2025-08-12 |
|---|---|---|
| Lead-Time | -- | |
| Supplier SPQ/MOQ | 1/5 | |
| Location | -- | |
| DateCode | -- |
