| APGA1602SYC/KA | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

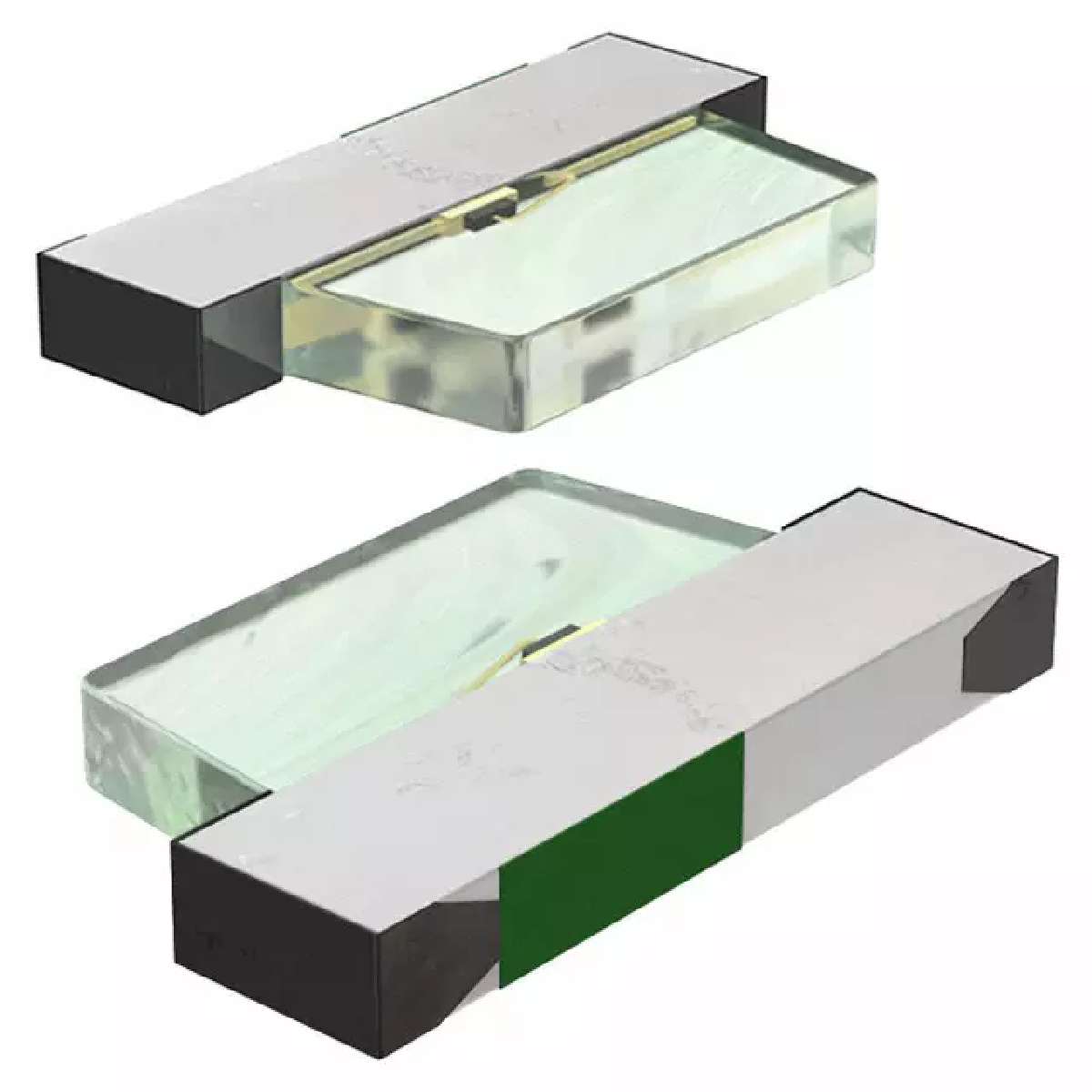

Super Bright Yellow 1.6 x 0.2mm 120°/160° Water Clear 75 mcd 2.05V Chip LED Lamp
|
||
| 标准包装：4000 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package / Case | 0603 (1608 Metric) |
|---|---|
| Supplier Device Package | Chip LED |
| Size / Dimension | 1.60mm L x 0.90mm W |
| Category | Optoelectronics |
| Lens Style/Size | Rectangle with Flat Top, 1.60mm x 0.90mm |
| Wavelength - Dominant | 589nm |
| Current - Test | 20mA |
| Family | LED Indication - Discrete |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 75mcd |
| ECCN | EAR99 |
| Viewing Angle | 160°, 120° |
| Color | Yellow |
| Part Status | Active |
| Manufacturer | Kingbright |
| Lens Color | Colorless |
| Voltage - Forward (Vf) (Typ) | 2.05V |
| Wavelength - Peak | 591nm |
| Height (Max) | 0.30mm |
| Lens Transparency | Clear |
| Packaging | Tape & Reel (TR) |
| 数据手册： |
|---|
