| 35WR10KLFTR | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

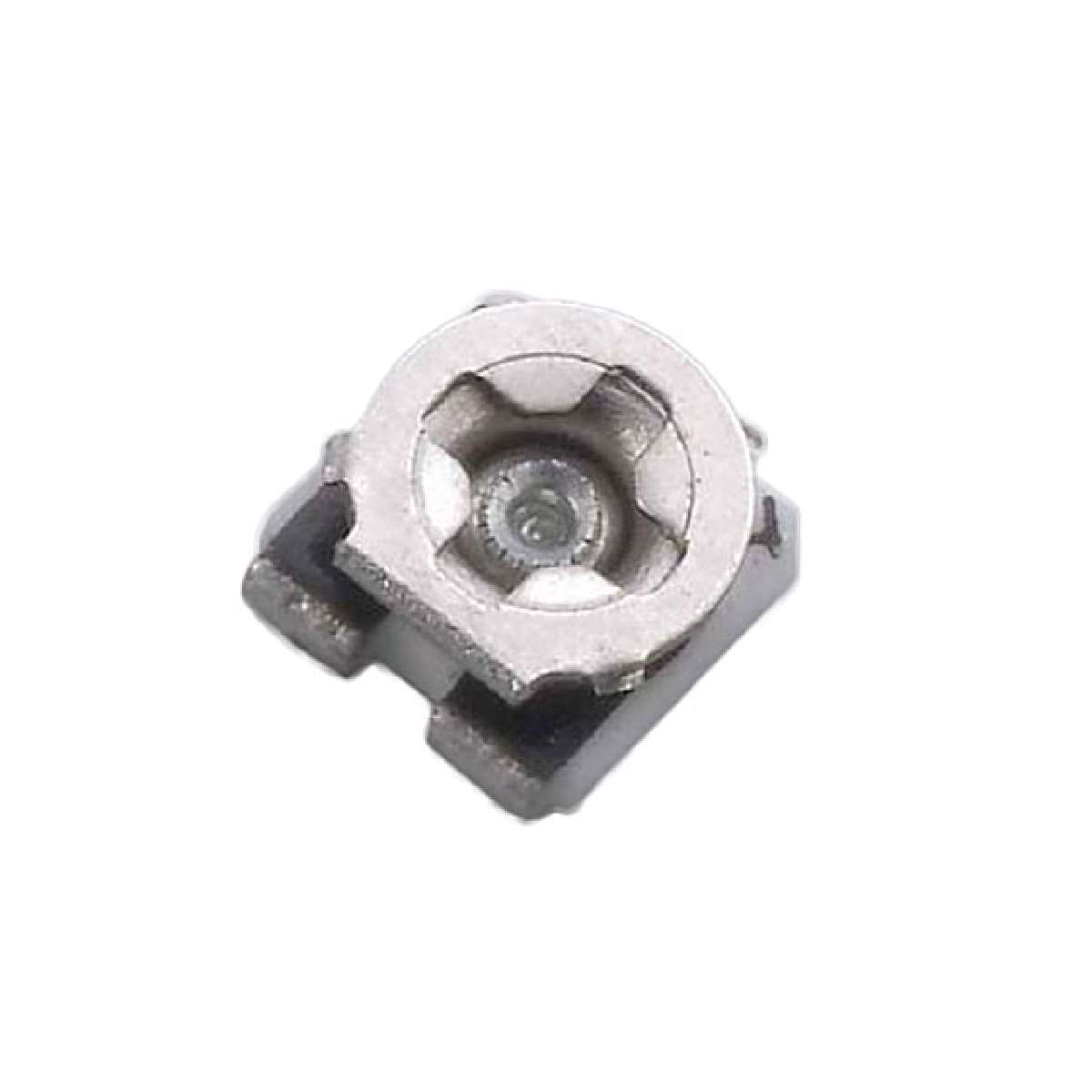

35W Series 3 mm Open Frame 10 kOhm ±25 % Single-Turn Trimming Potentiometer
|
||
| 标准包装：2000 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Tolerance | ±25% |
|---|---|
| Number of Turns | 1 |
| Size / Dimension | * |
| Category | Potentiometers, Variable Resistors |
| Adjustment Type | Top Adjustment |
| Series | 35 |
| Power (Watts) | 0.1W, 1/10W |
| Resistive Material | Cermet |
| ECCN | EAR99 |
| Temperature Coefficient | ±250ppm/°C |
| Termination Style | * |
| Part Status | Active |
| Manufacturer | TT Electronics/BI |
| Resistance (Ohms) | 10k |
| Family | Trimmer Potentiometers |
| Mounting Type | Surface Mount |
| Packaging | Tape & Reel (TR) |
| 数据手册： |
|---|
登录之后就可发表评论
Availability2Request Stock Notification
Supplier Stock
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
| stock | 16000 | Update On 2025-05-20 |
|---|---|---|
| Lead-Time | -- | |
| SPQ/MOQ | 2000/2000 | |
| Location | -- | |
| DateCode | 2443 |
