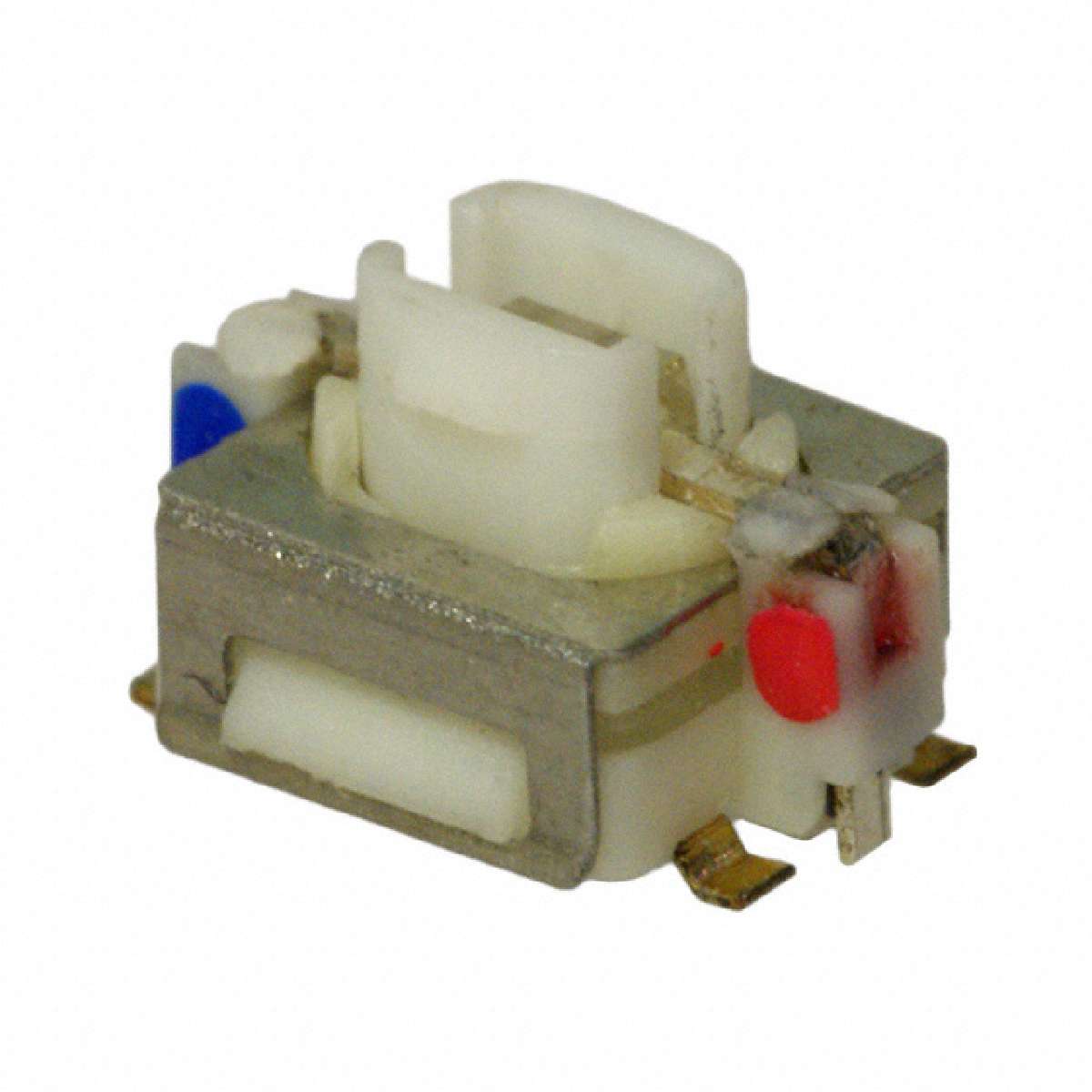

| TL6210AF200ZQ | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
TL Series 6.2x4.6 mm SPST Gull Wing Top Actuated Green/Yellow LED Tactile Switch
|
||
| 标准包装：1000 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Illumination Voltage (Nominal) | 2.0, 2.1 VDC |
|---|---|
| Actuator Type | Plunger for Cap |
| Actuator Orientation | Top Actuated |
| Actuator Height off PCB, from Pins | 3.72mm |
| Termination Style | Gull Wing |
| Illumination Type, Color | LED, Green/Yellow |
| Category | Switches |
| Switch Travel | 0.45mm |
| Operating Force | 200gf |
| Family | Tactile Switches |
| Mounting Type | Surface Mount |
| Packaging | Digi-Reel® |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Part Status | Discontinued |
| Manufacturer | E-Switch |
| Illumination | Illuminated |
| Series | TL6210 |
| Mechanical Life | 100,000 Cycles |
| Outline | 6.20mm x 4.60mm |
| Operating Temperature | -20°C ~ 70°C |
| ECCN | EAR99 |
