| AB15AH-HA | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

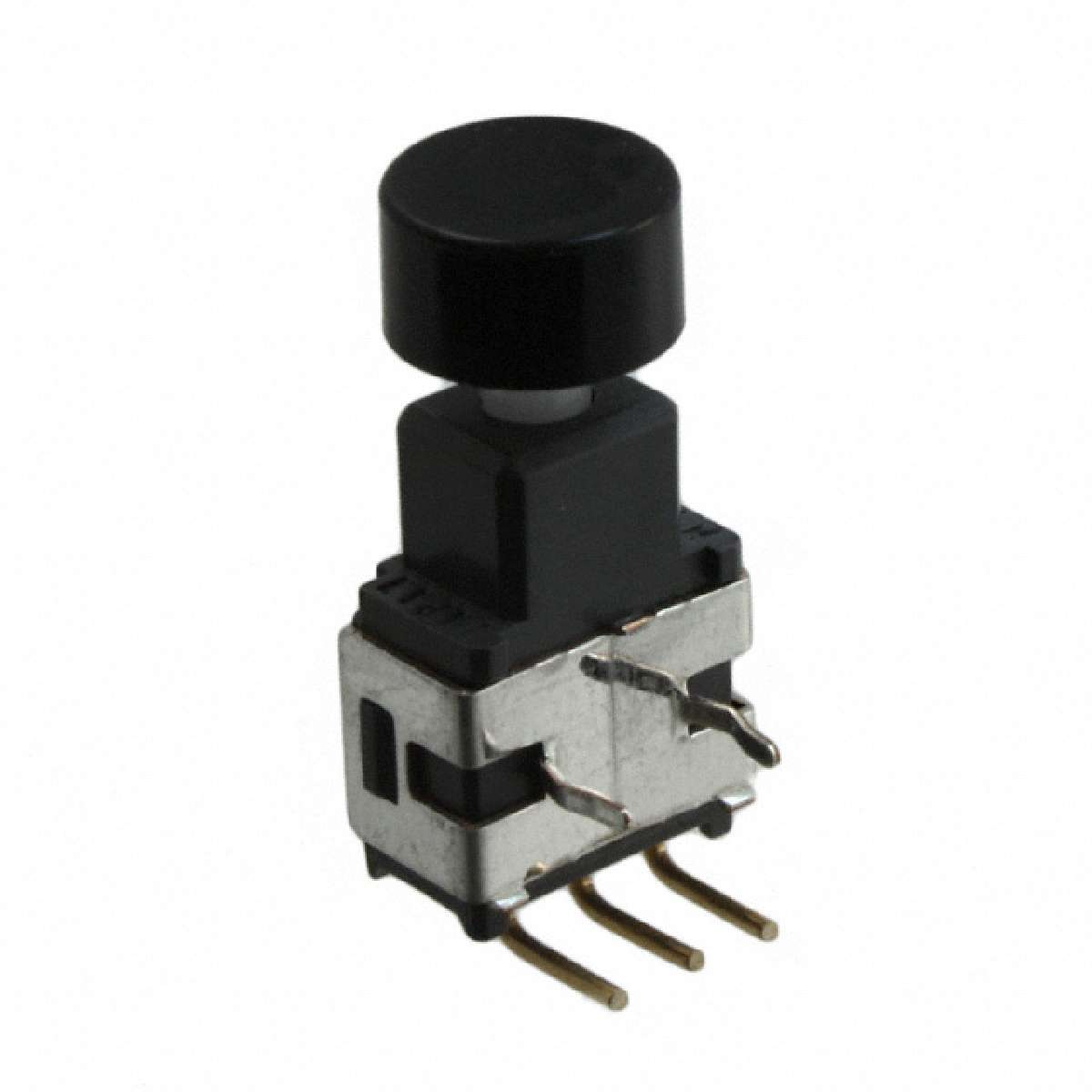

AB Series Sub Mini SPDT On-Momentary Right Angle Through Hole Pushbutton Switch
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Circuit | SPDT |
|---|---|
| Switch Function | On-Mom |
| Voltage Rating - AC | 28V |
| Voltage Rating - DC | 28V |
| Part Status | Active |
| Category | Switches |
| Color - Actuator/Cap | Black |
| Mechanical Life | 50,000 Cycles |
| Mounting Type | Through Hole, Right Angle |
| Packaging | Tray |
| ECCN | EAR99 |
| Actuator Type | Round, Button |
| Type | Standard |
| Termination Style | PC Pin |
| Features | Sealed - Fully |
| Electrical Life | 50,000 Cycles |
| Manufacturer | NKK Switches |
| Series | AB |
| Family | Pushbutton Switches |
| Operating Temperature | -30°C ~ 85°C |
| Current Rating | 0.4VA (AC/DC) |
