97C04RT
97C04RT
  • ACTIVE
  • EAR99

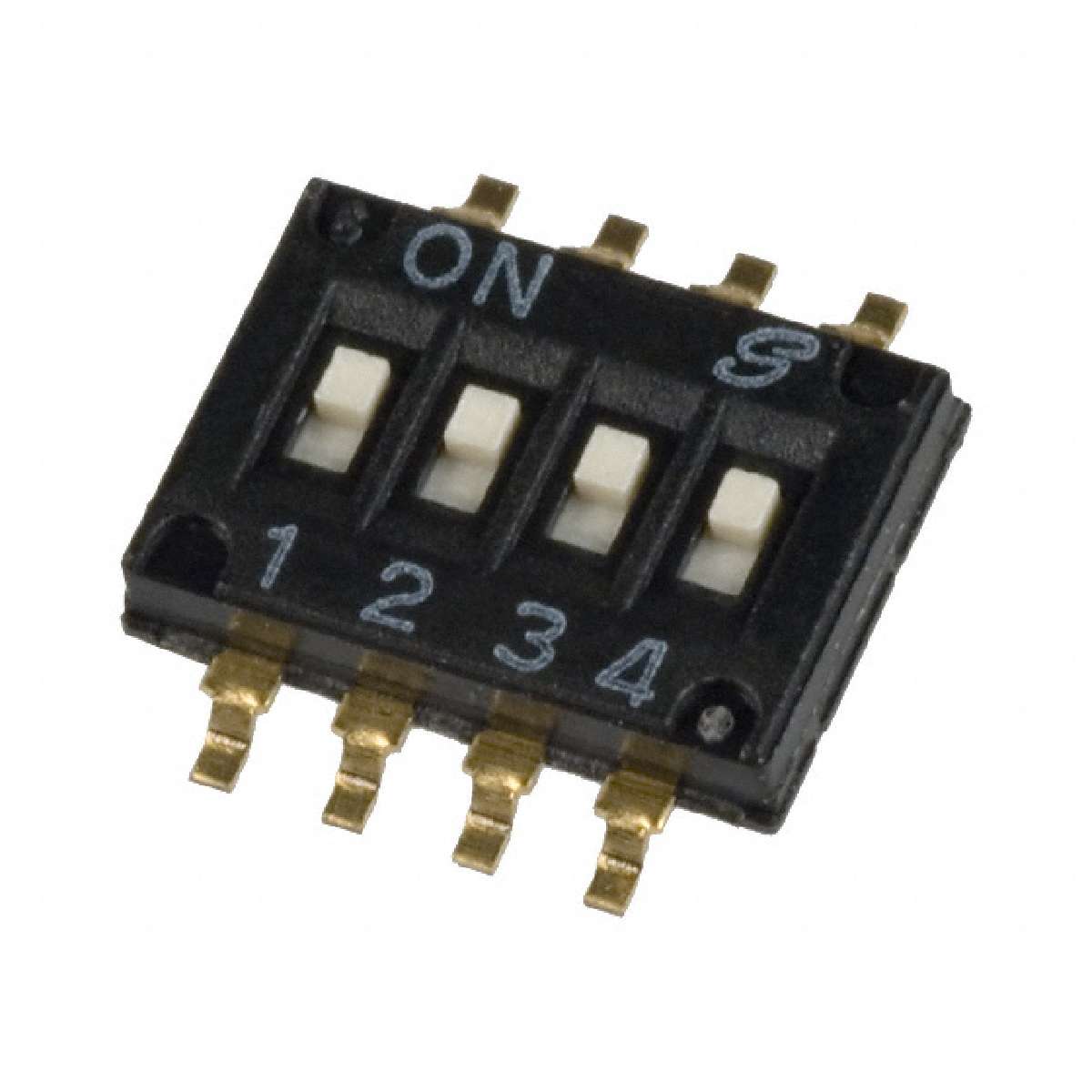

Product description : Half Pitch DIP Switch, 4 Positions, reel, RoHS Compliant
SPQ：1
Datasheet :
  • Specifications
  • Product Attributes
  • Documents
  • Product reviews

Voltage Rating 24VDC
Termination Style Gull Wing
Manufacturer Grayhill Inc.
Mounting Type Surface Mount
Height Above Board 0.063" (1.60mm)
Actuator Type Slide (Standard)
Category Switches
Actuator Level Flush, Recessed
Mechanical Life 1,000 Cycles
Series 97
Operating Temperature -40°C ~ 85°C
Pitch 0.050" (1.27mm), Half
Contact Finish Gold
Body Material Polyamide (PA), Nylon
Washable No
Packaging Tape & Reel (TR)
Circuit SPST
Part Status Active
Contact Material Copper Alloy
Length 0.248" (6.31mm)
Number of Positions 4
Family DIP Switches
Current Rating 25mA
ECCN EAR99
Datasheet：
