| DF06M-E3/45 | ||
|---|---|---|
|
|
||
|
||

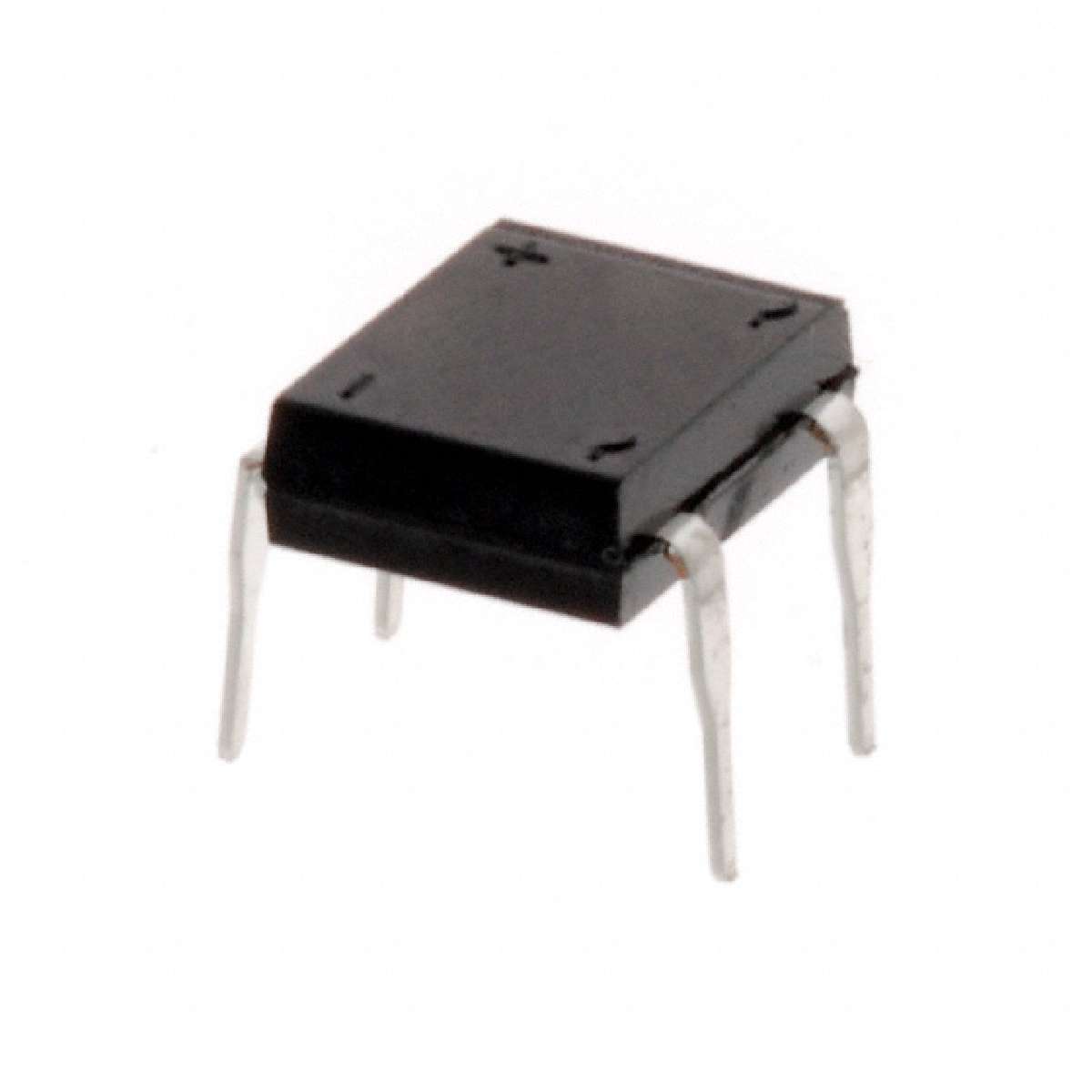

| Product description : DF06M Series 600 V 50 A Miniature Glass Passivated Single-Phase Bridge Rectifier | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| If - Forward Current: | 1 A |
|---|---|
| Packaging: | Tube |
| Product: | Single Phase Bridge |
| Vr - Reverse Voltage: | 420 V |
| Max Surge Current: | 50 A |
| Factory Pack Quantity: | 5000 |
| Ir - Reverse Current: | 5 uA |
| Termination Style: | Through Hole |
| Product Category: | Bridge Rectifiers |
| Unit Weight: | 0.014674 oz |
| Vf - Forward Voltage: | 1.1 V |
| ECCN | EAR99 |
| Length: | 8.51 mm |
| Width: | 6.5 mm |
| Manufacturer: | Vishay |
| Peak Reverse Voltage: | 600 V |
| Minimum Operating Temperature: | - 55 C |
| Brand: | Vishay Semiconductors |
| RoHS: | Details |
| Package / Case: | DFM |
| Height: | 3.3 mm |
| Mounting Style: | PCB Mount |
| Maximum Operating Temperature: | + 150 C |
