| DMT6016LPS-13 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

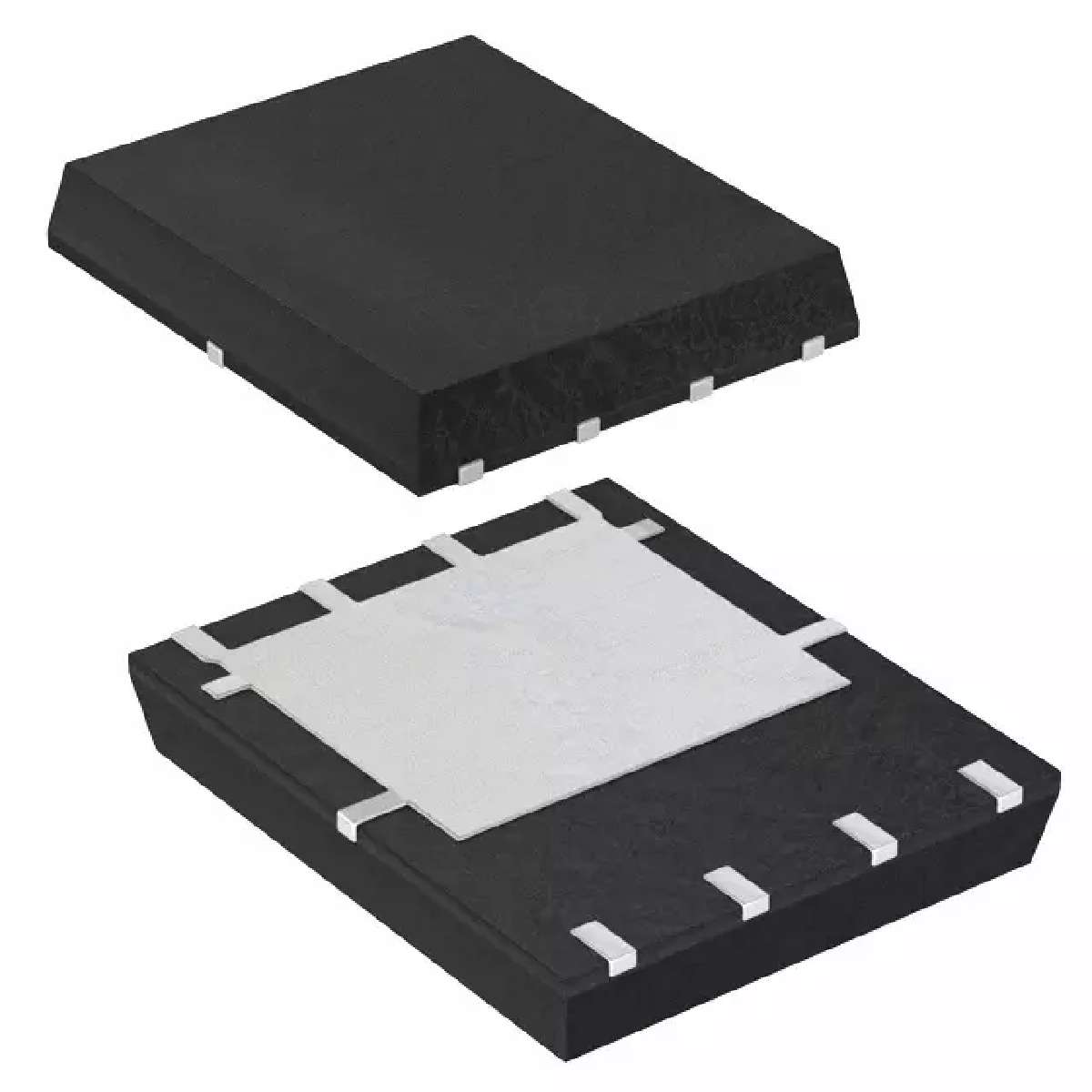

N-Channel 60 V 16 mΩ Enhancement Mode Mosfet - PowerDI-5060-8
|
||
| 标准包装：2500 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| FET Feature | Standard |
|---|---|
| Package / Case | 8-PowerTDFN |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 10.6A (Ta) |
| Part Status | Active |
| Manufacturer | Diodes Incorporated |
| Family | Transistors - FETs, MOSFETs - Single |
| Mounting Type | Surface Mount |
| Input Capacitance (Ciss) @ Vds | 864pF @ 30V |
| ECCN | EAR99 |
| Rds On (Max) @ Id, Vgs | 16 mOhm @ 10A, 10V |
| Power - Max | 1.23W |
| Supplier Device Package | PowerDI5060-8 |
| Gate Charge (Qg) @ Vgs | 17nC @ 10V |
| Category | Discrete Semiconductor Products |
| FET Type | MOSFET N-Channel, Metal Oxide |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Packaging | Digi-Reel® |
