| 2410SB-04W-B30-B00 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

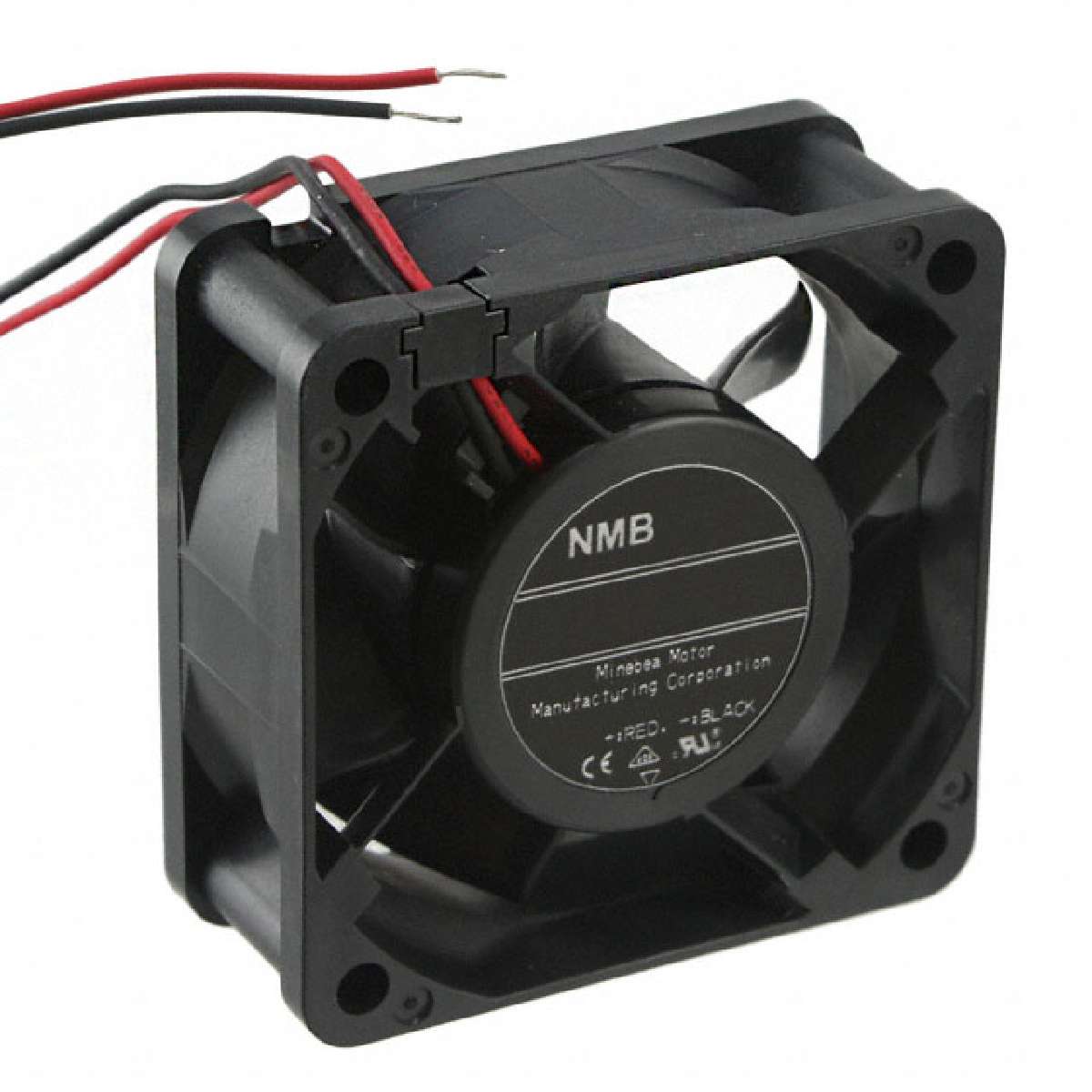

60 x 25 mm 12 V 3500 RPM 16.9 CFM 22.5 dB Ball Bearing DC Axial Fan
|
||
| 标准包装：105 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Termination | 2 Wire Leads |
|---|---|
| Material - Blade | Plastic |
| Voltage Range | 6 ~ 13.8VDC |
| Part Status | Active |
| Manufacturer | NMB Technologies Corporation |
| Air Flow | 16.9 CFM (0.479m³/min) |
| Voltage - Rated | 12VDC |
| Noise | 22.5 dB(A) |
| Family | DC Fans |
| Width | 25mm |
| Bearing Type | Ball |
| Current Rating | 0.080A |
| Static Pressure | 0.140 in H2O (34.9 Pa) |
| Approvals | * |
| Size / Dimension | Square - 60mm L x 60mm H |
| Category | Fans, Thermal Management |
| Material - Frame | Plastic |
| Weight | 0.123 lb (55.79g) |
| Series | 06025SA |
| Power (Watts) | 0.96W |
| RPM | 3500 RPM |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Fan Type | Tubeaxial |
| ECCN | EAR99 |
