| 180-026-203L021 | ||
|---|---|---|
|
|
||
|
||

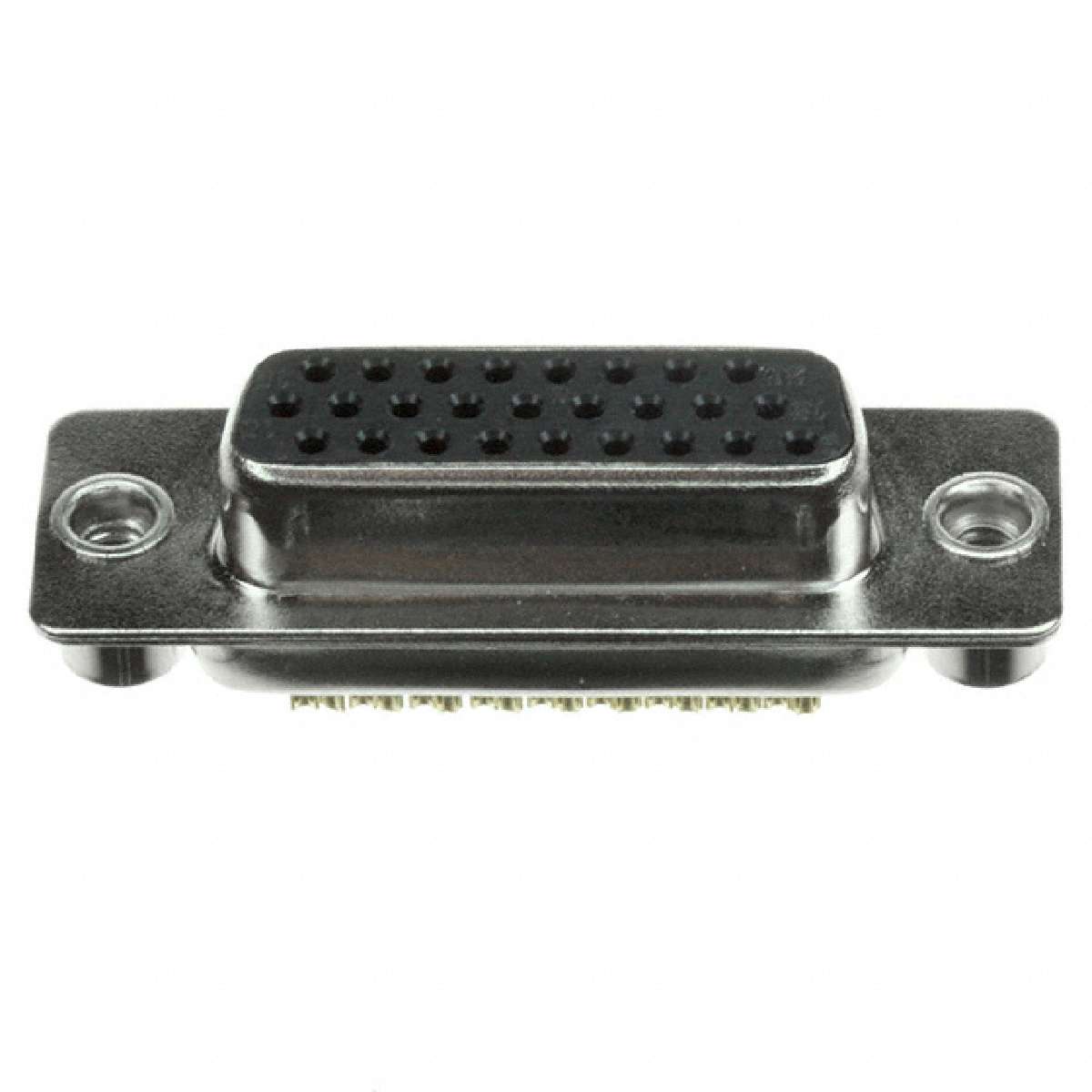

| Product description : 180 Series 26 Position High Density Female Vertical Solder Cup D-Sub Connector | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Termination | Solder Cup |
|---|---|
| Shell Material, Finish | Steel, Nickel Plated |
| Shell Size, Connector Layout | 2 (DA, A) High Density |
| Features | Shielded |
| Flange Feature | Board Side (4-40) |
| Category | Connectors, Interconnects |
| Series | 180 |
| Family | D-Sub Connectors |
| Operating Temperature | -50°C ~ 100°C |
| Contact Finish Thickness | Flash |
| Number of Rows | 3 |
| ECCN | EAR99 |
| Connector Style | D-Sub, High Density |
| Contact Finish | Gold |
| Contact Type | Signal |
| Part Status | Active |
| Manufacturer | Norcomp Inc. |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Number of Positions | 26 |
| Mounting Type | Free Hanging (In-Line); Panel Mount |
| Connector Type | Receptacle, Female Sockets |
| Packaging | Tray |
| Current Rating | 5A |
