| HS16-4N | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

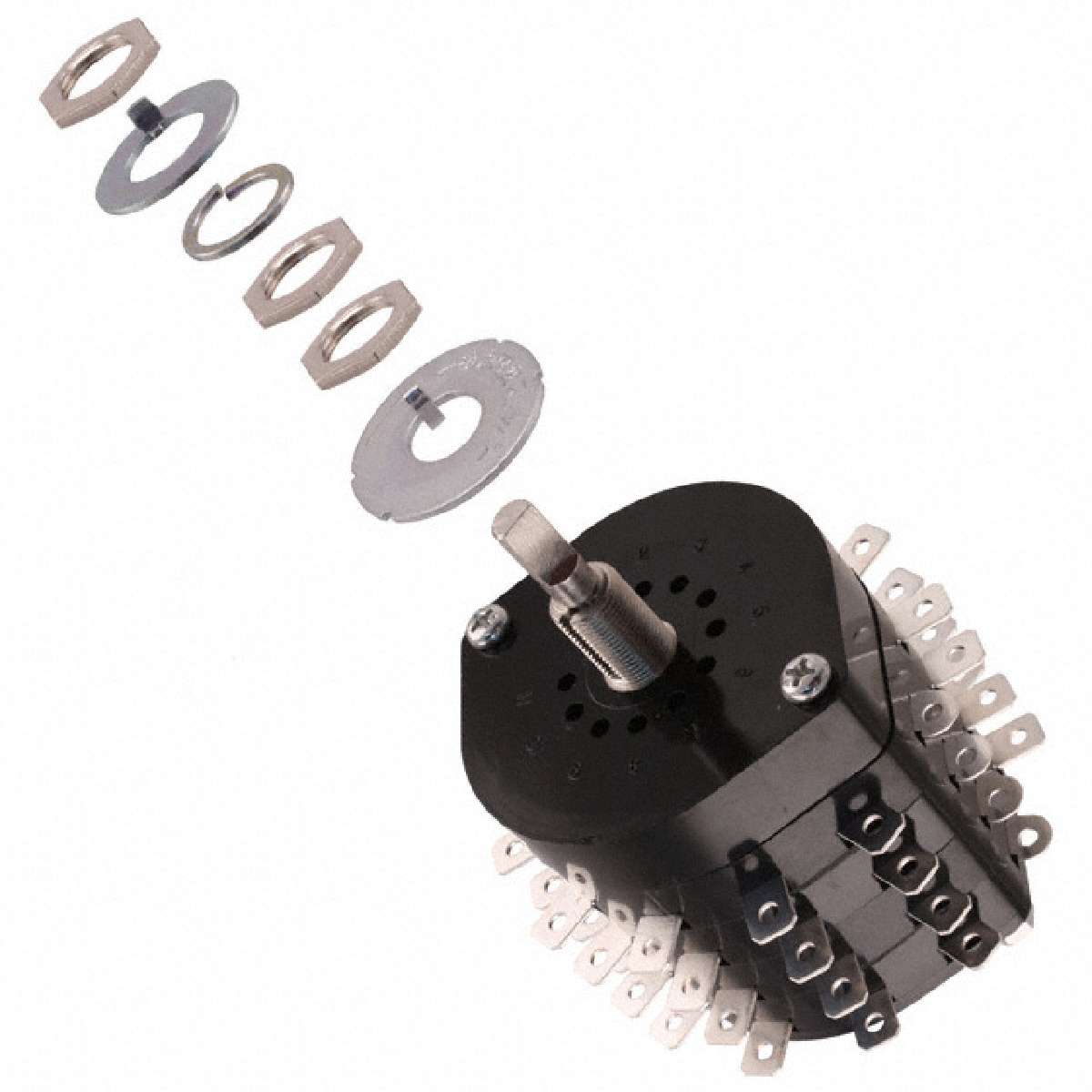

HS Series 4P 11 Position Solder Lug Standard Size Rotary Switch
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Actuator Type | Flatted (6mm Dia) |
|---|---|
| Angle of Throw | 30° |
| Number of Decks | 4 |
| Termination Style | Solder Lug |
| Part Status | Active |
| Manufacturer | NKK Switches |
| Contact Material | Phosphor Bronze |
| Series | HS |
| Family | Rotary Switches |
| Mounting Type | Panel Mount |
| Contact Timing | Non-Shorting (BBM) |
| ECCN | EAR99 |
| Number of Poles per Deck | 1 |
| Actuator Length | 15.00mm |
| Voltage Rating - AC | 125V |
| Circuit per Deck | SP11T |
| Operating Force, Torque | 0.69 ~ 0.79 N-m |
| Category | Switches |
| Index Stops | Adjustable |
| Number of Positions | 2 ~ 11 |
| Panel Cutout Dimensions | Circular - 10.30mm Dia |
| Depth Behind Panel | 61.50mm |
| Current Rating | 12A (AC) |
