| 3610VL-05W-B30-B00 | ||
|---|---|---|
|
|
||
|
||

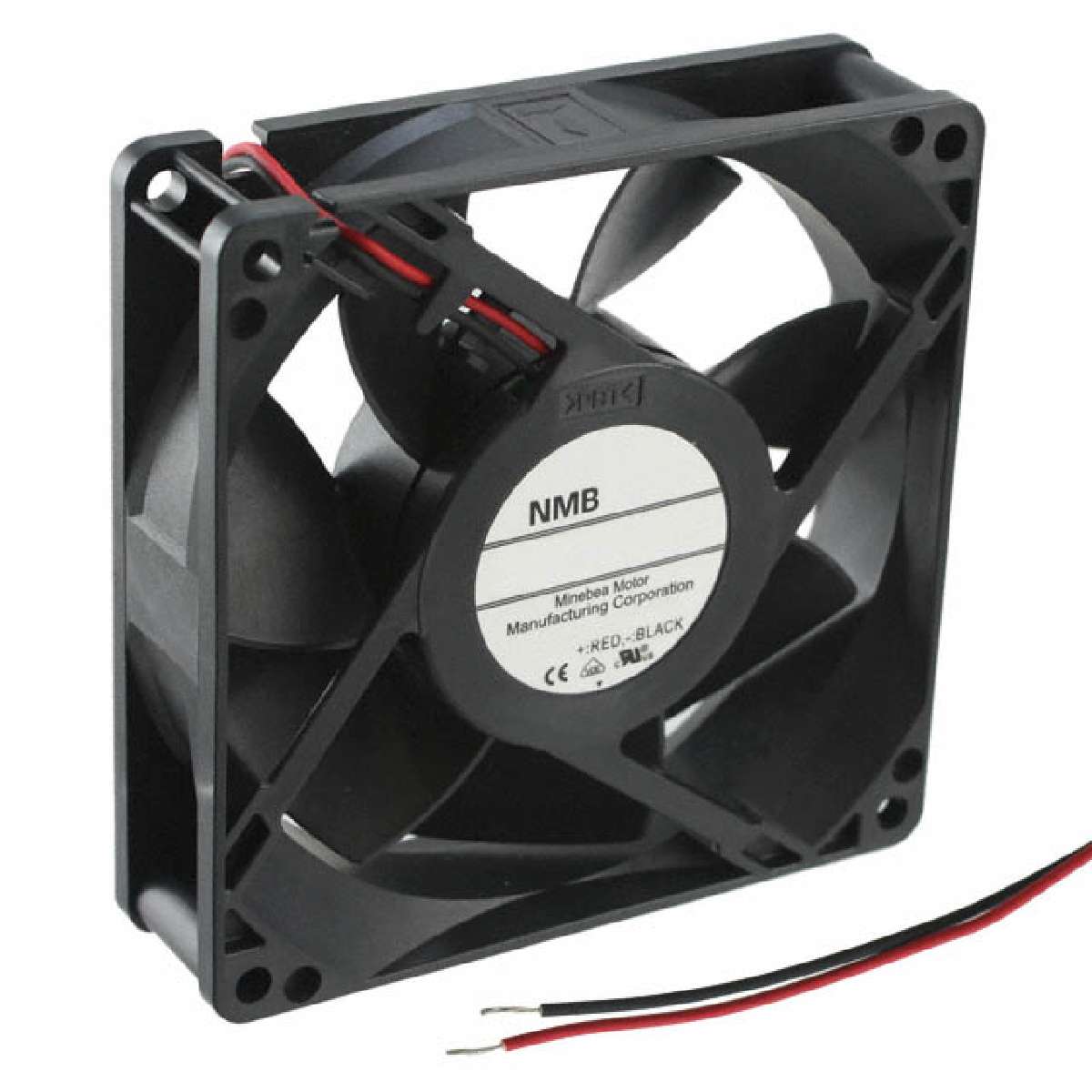

| Product description : 92x25mm, 12VDC, 61.8 CFM, 3600 RPM, 44.5db, 3 wire, Tach Output, Ball Bearing, | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Termination | 2 Wire Leads |
|---|---|
| Material - Blade | Plastic |
| Voltage Range | 14 ~ 27.6VDC |
| Part Status | Active |
| Manufacturer | NMB Technologies Corporation |
| Air Flow | 61.1 CFM (1.73m³/min) |
| Voltage - Rated | 24VDC |
| Noise | 38.5 dB(A) |
| Family | DC Fans |
| Width | 25mm |
| Bearing Type | Ball |
| Current Rating | 0.140A |
| Static Pressure | 0.261 in H2O (65.0 Pa) |
| Approvals | CE, UR, VDE |
| Size / Dimension | Square - 92mm L x 92mm H |
| Category | Fans, Thermal Management |
| Material - Frame | Plastic |
| Weight | 0.298 lb (135.17g) |
| Series | 09225VA |
| Power (Watts) | 3.36W |
| RPM | 3600 RPM |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Fan Type | Tubeaxial |
| ECCN | EAR99 |
