STK581U3C2D-E specifications -Ameya360 electronic components purchase network

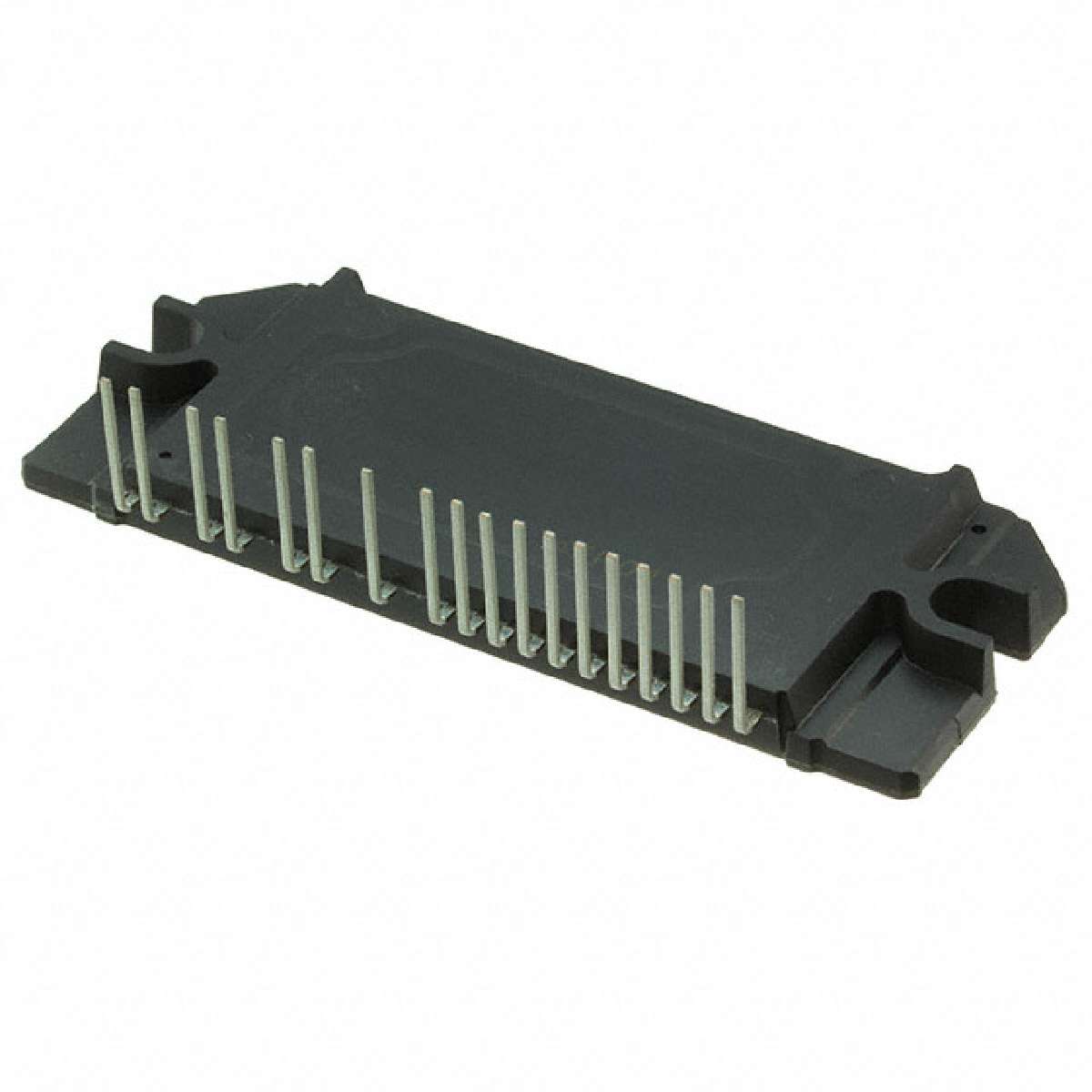

STK581U3C2D-E

ACTIVE 22-SIP EAR99
Product description : Inverter IPM for 3-phase Motor Drive
SPQ：7
Datasheet : STK581U3C2D-E.pdf

Load Type	Inductive
Current - Peak Output	45A
Package / Case	22-SIP, 18 Leads, Formed Leads
Supplier Device Package	22-SIP
Features	Bootstrap Circuit, Status Flag
Interface	Logic
Manufacturer	ON Semiconductor
Family	PMIC - Full, Half-Bridge Drivers
Mounting Type	Through Hole
Technology	IGBT
ECCN	EAR99
Voltage - Supply	12.5 V ~ 17.5 V
Output Configuration	Half Bridge (3)
Current - Output / Channel	30A
Fault Protection	Current Limiting, UVLO
Part Status	Active
Category	Integrated Circuits (ICs)
Voltage - Load	450V (Max)
Applications	AC Motors
Operating Temperature	-40°C ~ 150°C (TJ)
Packaging	Tube

Datasheet： STK581U3C2D-E.pdf
