| TSSP58038 | ||
|---|---|---|
|
|
||
|
||

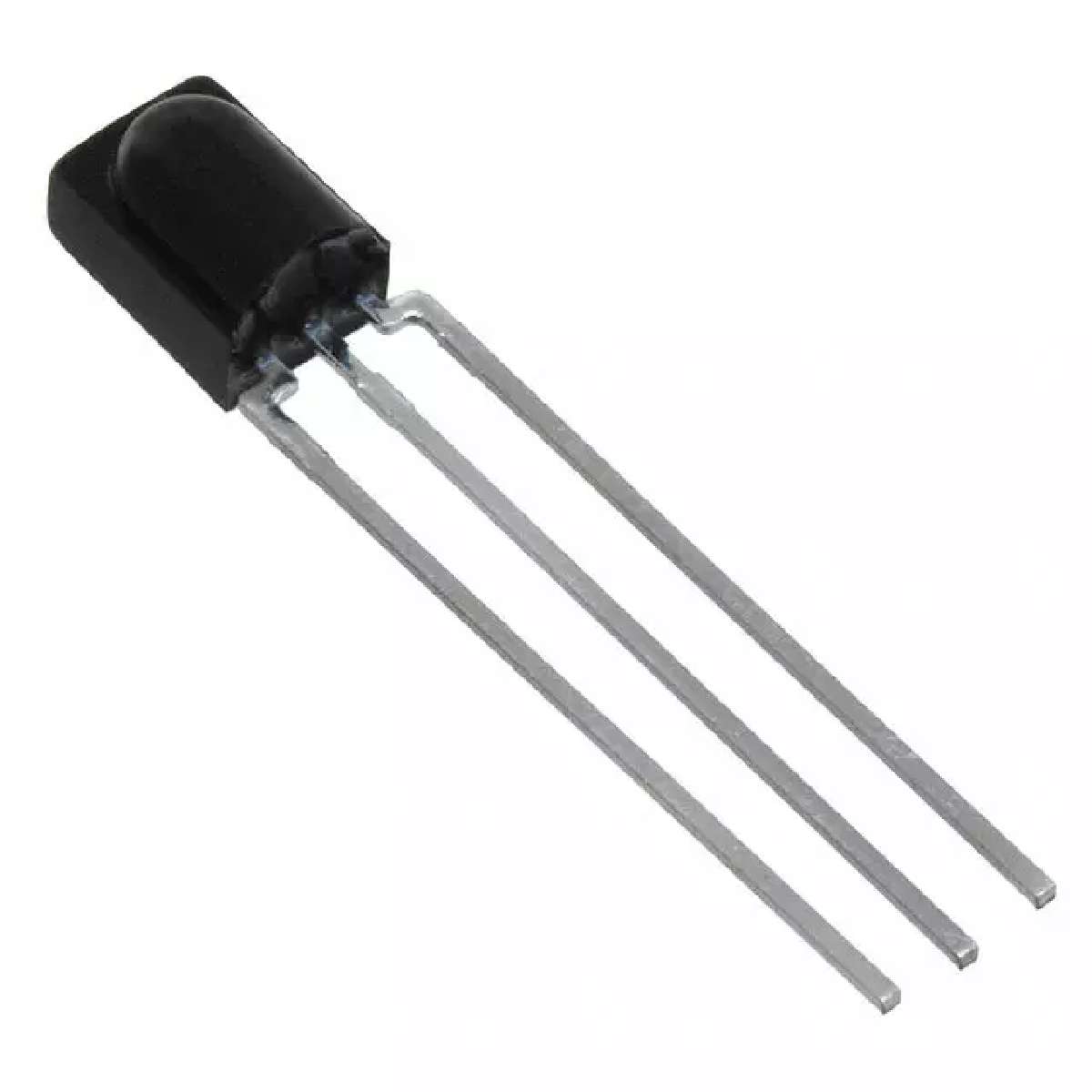

| Product description : 38 kHz 25 m 45° 5.5 V Through Hole IR Receiver Module for Light Barrier Systems | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Carrier Frequency: | 38 kHz |
|---|---|
| Beam Angle: | 45 deg |
| Viewing Angle: | 45 deg |
| Minimum Operating Temperature: | - 25 C |
| Package / Case: | Side Looker |
| Height: | 6.95 mm |
| Mounting Style: | Through Hole |
| Length: | 4.8 mm |
| Peak Wavelength: | 940 nm |
| Factory Pack Quantity: | 1500 |
| Minimum High Level Output Voltage: | 100 mV |
| Operating Supply Current: | 700 uA |
| Maximum Operating Temperature: | + 85 C |
| Width: | 5 mm |
| Packaging: | Reel |
| High Level Pulse Width: | 0.8 ms |
| Pd - Power Dissipation: | 10 mW |
| Low Level Pulse Width: | 0.8 ms |
| Transmission Distance: | 25 m |
| Output Current: | 5 mA |
| Manufacturer: | Vishay |
| Operating Supply Voltage: | 2.5 V to 5.5 V |
| Brand: | Vishay Semiconductors |
| RoHS: | Details |
| Product Category: | Infrared Receivers |
| ECCN | EAR99 |
