206-1PABHE specifications -Ameya360 electronic components purchase network


206-1PABHE

ACTIVE EAR99

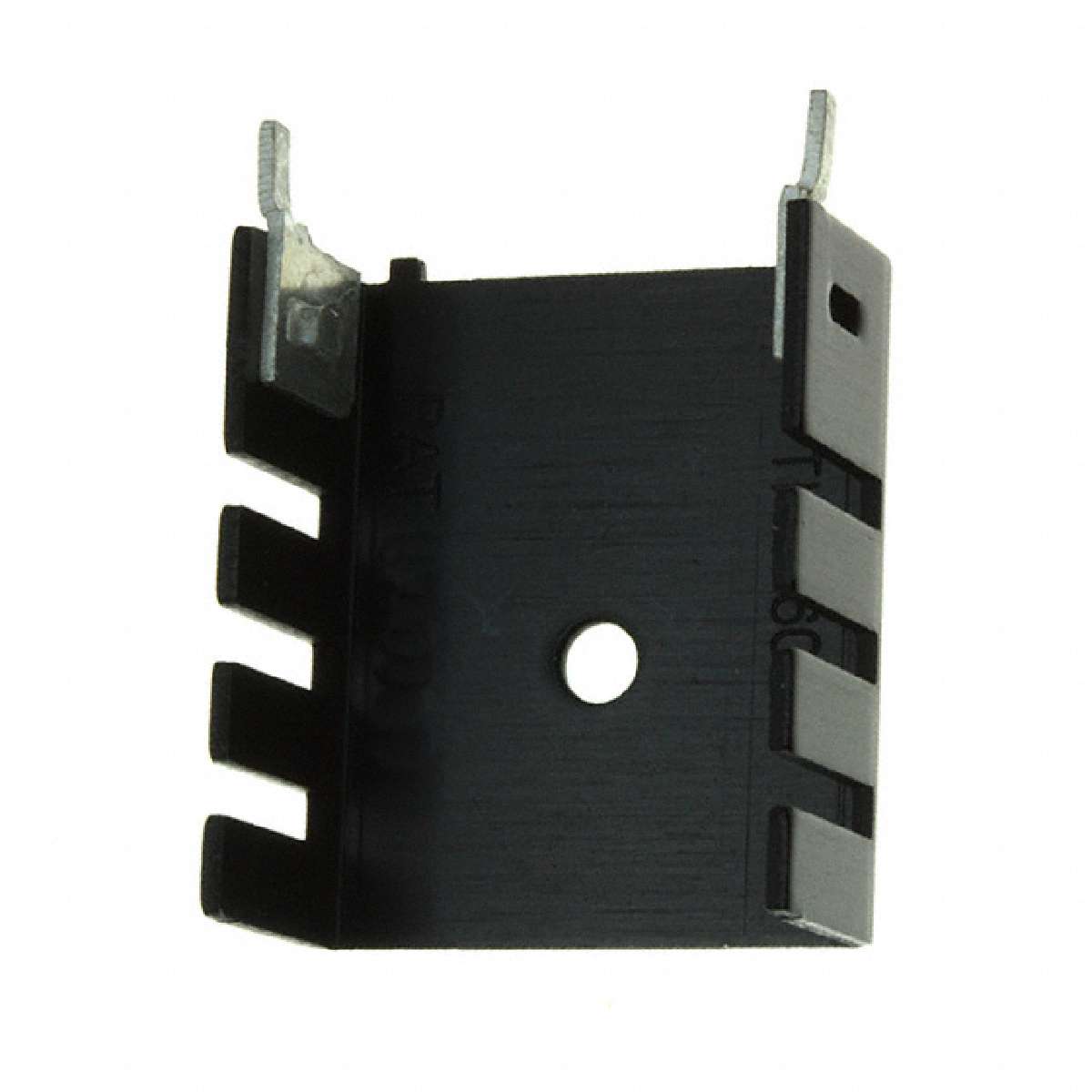

Product description : 206 Series 7.3° C/W Thermal Resistance Aluminum Bolt On Heatsink
SPQ：1120
Datasheet : 206-1PABHE.pdf

Package Cooled	TO-220
Type	Board Level, Vertical
Product Attributes	Select All
Category	Fans, Thermal Management
Power Dissipation @ Temperature Rise	4W @ 56°C
Length	1.180" (29.97mm)
Thermal Resistance @ Forced Air Flow	7.3°C/W @ 200 LFM
Height Off Base (Height of Fin)	0.500" (12.70mm)
Thermal Resistance @ Natural	14°C/W
Attachment Method	Bolt On and PC Pin
Material	Aluminum
Shape	Rectangular, Fins
Manufacturer	Wakefield-Vette
Material Finish	Black Anodized
Series	206
Family	Thermal - Heat Sinks
Width	1.000" (25.40mm)
ECCN	EAR99

Datasheet： 206-1PABHE.pdf
